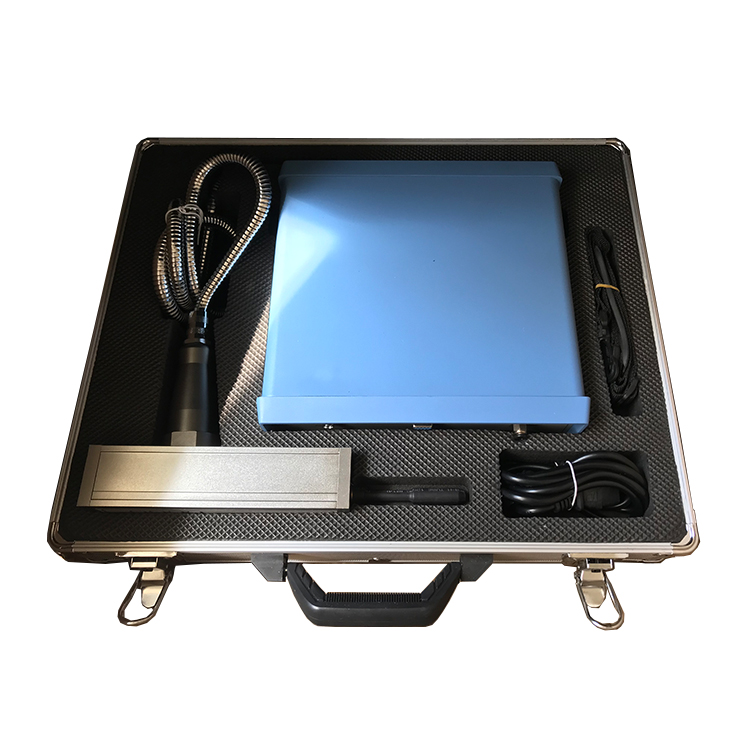

Infrared SF6 Leak Detector

General Guidelines

Welcome to using our handheld quantitative device.SF6Infrared Leak Detector for Gases

This manual is the intellectual property of our company. Unauthorized copying or reproduction by any unit or individual is prohibited.

◆ This manual is a handheldSF6Gas Infrared Leak Detector User Manual,Please read instructions carefully before using the product.

◆ No further notice will be given in case of any modifications to this manual.

1Application Scope

This equipment is suitable for departments such as power, railway, electrical manufacturing, chemical industry, firefighting equipment, and atomic physics research that require charging.Six Fluoride.DesulfurizationLeak detection for equipment and containers containing gases, performed quickly and accurately.Six Fluoride.DesulfurizationQualitative and quantitative measurement and analysis of gases. Also suitable forSF6High Voltage Switch FactorySF6Electrical equipment and accessories for export products.

2Relevant Standards

This equipment references the following standards, forming its clauses by citing relevant provisions from those standards. This establishes the technical requirements, acceptance rules, inspection methods, scope of application, packaging requirements, labeling, transportation, and storage for this equipment.

DL/T 639-1997 Six Fluoride.DesulfurizationSafety Protocols for Electric Equipment Operation, Testing, and Maintenance Personnel

GB11023-89High-voltage Switchgear EquipmentSix Fluoride.No Chinese content provided. Please provide the text to be translated.Gas Sealing Test Method

DLT846.6-2004 Six Fluoride.Sulfur OxidationGas Leak Detector

Guodian Corporation72Please refer to the attached document.3[1999] Quality Supervision and Administration Measures for High-Voltage Switchgear Equipment

GB/T 17626 Electromagnetic Compatibility (EMC) Testing and Measurement Technology

GB/T 2423Electrical and Electronic Products Environmental Testing

DL/T596Preventive Test Procedures for Electrical Equipment

GB/T 6388 Transportation Packaging Shipment and Receipt Markings

Feature Overview

As domestic transformer substation voltage levels gradually increase, the power sector...SF6The usage of high-voltage circuit breakers is approximately increasing by...15%/ Year-over-year growth, in the high-voltage, ultra-high-voltage, and extra-high-voltage switch fields.SF6Gases have almost becomeNo Chinese content provided..No Chinese content provided.Insulating and arc-quenching media.SF6High-voltage switches are mostly installed indoors, where air flow is relatively slow. Once...SF6Leakage of gas can lead to partial oxygen deficiency, causing staff to suffocate due to lack of oxygen, posing a threat to their safety and lives.Extreme.No Chinese content provided, please provide the news content to be translated.Safety hazards have been identified. Additionally, the arc-quenching effect of the high-voltage circuit breakersExtreme.Please provide the Chinese content to be translated.Reduced levels have caused damage to the circuit breaker's body. Therefore, any discovery should be addressed promptly.SF6A gas leak must be addressed promptly. This involves accurately locating the leak, repairing it, and immediately eliminating any potential hazards associated with the high-voltage circuit breaker.

High-precision handheldSF6Leak Detection Equipment for GasesSF6Gas concentration values accurately identify and alert through various methods, including auditory and visual alarms based on user-defined concentration thresholds and trend charts of detection data.SF6Gas leak location, forSF6Equipment Maintenance ScheduledExtreme.No Chinese content provided, please provide the news content to be translated.Convenience.

1Product Features

Utilizing state-of-the-art pump suction technology,NDIRSingle-beam dual-wavelength infrared measurement technology with high detection sensitivity and accuracy stability.

Utilizing high-precision digital processing technology, along with unique drift control and temperature compensation circuits, boasts strong anti-interference capabilities.

Equipped with a comprehensive self-check function, including low battery, sensor failure, and out-of-range during detection.

Utilizing a color large-screen dot matrix LCD display and full Chinese menu-style functional management.

The testing process displays real-time data, along with dynamic waveform curve analysis graphs.

The screen displays alarm values and curve graphs, utilizing a buzzer for alarm notifications.

Features self-calibration functionality.

High-capacity rechargeable lithium-ion battery, with continuous working time exceeding5Hour

Clock万年历 feature

Compact and easy to hold for convenient measurement.

Available20000Data records, waveform storage functionality, and browsing/search capabilities.

2Technical Indicators

Measurement Method NDIRSingle-beam dual-wavelength infrared measurement technology

Monitor Gases Measurement Range Resolution Precision

Six Fluoride.Sulfur OxidationGases 0～12000ppm 1ppm ±（2%+5d）

Repetitive Performance ＜2%

Air pump suction speed 0.4L/min

Ongoing Working Hours Not less than5Hour

Instrument preheating start time ≤2Minute

Corresponding time Less than3Second

Recovery Time No Chinese content provided.3Second

Charging Adapter Specifications DC5V/1A

Surge (Impulse) Immunity ±1.2kV

Ambient Temperature -20℃～＋50℃

Ambient Humidity Relative Humidity5～95%(No Condensation)

Atmospheric Pressure 50kPa～110kPa

Protection Level IP33, Double insulationCATLevel II Standard

No Chinese content provided. Long250mm× Wide160mm×High70mm

Mainframe Weight 1KG
