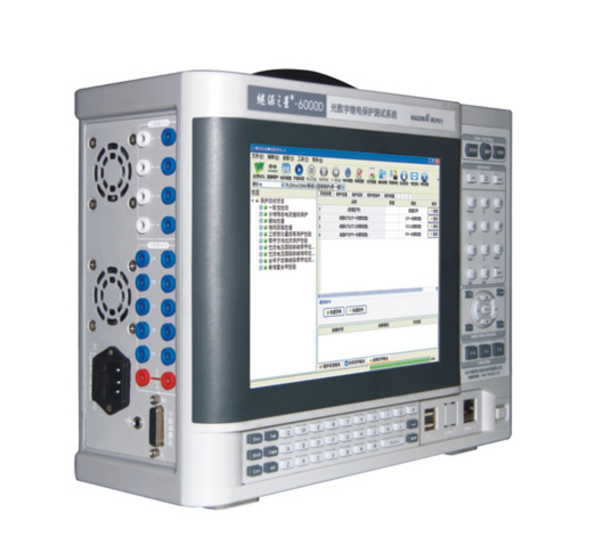

Optical Digital Relay Protection Tester

Product Advantages

  1. The Opto-Digital Relay Protection Tester integrates both opto-digital testing and small-signal analog quantity testing functions, and can be externally connected to current and voltage amplifiers.

  Support10 independent sampling value (SMV) messages compliant with IEC60044-8 (FT3) standard, 1 input; supports synchronous/async transmission modes, and various transmission speeds.

  3. Support8 sets of sampled values (SMV) messages in compliance with IEC61850-9-2 standards, with evenly spaced sampling points, fully meeting the new standards set by State Grid.

  4. Support12 GOOSE outputs, 8 GOOSE inputs, configurable to any optical port.

  5. Automatically detects optical digital signals, achieving real-timeAutomatic configuration of SMV, GOOSE information

  6. Equipped with terminal block test function.

  7 With message oscilloscope functionality, capable of receiving and parsingIEC61850-9-2 standard sampling values (SMV) messages, GOOSE messages, and loopback tests for device outputs; also capable of receiving optical digital signals from merging units (MU) or other IED devices, displaying their waveforms, amplitudes, angles, and frequencies in real-time.

  8. Features robust message logging, real-time message alerting, and offline message analysis capabilities.

  9. Multi-group SupportGOOSE message reception or transmission

  １０The SMV and GOOSE optical ports can be configured arbitrarily, either as a single optical port for both transmission and reception, or as separate ports for each.

  11. Comprehensive Analysis of Protection Model FilesICD, CID, SCD files, etc., to automatically configure current-voltage channel selection, proportional coefficients, ASDU numbers, sampling rates, and GOOSE information, simplifying the protection testing process and enhancing work efficiency.

  12 Features include frame dropping, step loss, flying spot, sequence error, invalid quality bit setting, and incorrect value testing for message testing.

  13 - UnavailableGPS, IRIG-B, and IEEE1588 time-synchronization features

  14. Features self-loading and debugging function

  １５12 independent analog low-level signal outputs, compatible with testing various types of electronic current transformers for protection purposes; or connect to power sources from various brands to conduct comparative tests between conventional and digital protection.

  １６8 pairs of incoming, 4 pairs of general outgoing, and 4 pairs of rapid outgoing, complete closed-loop protection testing of GOOSE information messages.

  17 Rich in software testing functions, capable of testing various microcomputer protection devices such as line protection, busbar protection, transformer protection, and generator-set protection, as well as backup and self-starting devices.

  18th, Support StandardsCOMTRADE waveform playback format

Product Overview

The Light Digital Relay Protection Tester is suitable for those that comply withThe fully digital substation compliant with IEC 61850 standard not only outputs sampling value messages based on IEC 61850-9-2LE and IEC 60044-7/8, but also receives and transmits GOOSE messages.

Open AgreementBoth SMV and GOOSE messages support flexible configuration, enabling seamless connection with products from any manufacturer.

Please provide the Chinese content to be translated.In addition to the digital output of IEC 61850, the tester can also output a small signal analog quantity ranging from 0 to 7V. Moreover, the tester supports hard inputs and outputs, meeting the testing needs of low-voltage protection devices in digital substations.

Digital Outputs and Analog Outputs, Hard Inputs and OutputsGOOSE's diverse combinations can be easily configured to provide testing solutions for relay protection devices catering to various input/output methods.

Even in the outputAt 40mV, still maintainsExtreme.High precision, overall output accuracy meets0.05 grade requirement.

Anomaly in simulation process layer equipment; flexible setting of channel quality factor, frame drop, and point drop, for evaluating the interval layerIED's Proper Response to Process Layer Equipment Anomalies: A Comprehensive Solution Provided

Self-contained with an industrial computer,12.1-inch true-color display, also capable of being connected to a computer for operation.
