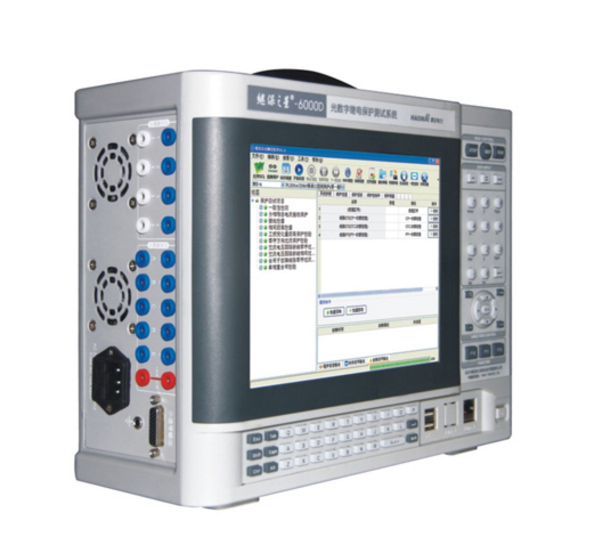

Optical Protection Channel Comprehensive Tester

The GDWM Microcomputer Relay Protection Tester is a new generation of intelligent relay protection tester designed in accordance with the State Grid Corporation's "Technical Specification for Relay Protection of Intelligent Substations" and "Technical Guideline for Intelligent Substations." It is capable of performing full-function testing on optical digital protection devices and can simulate the output of collectors.MUAchieve closed-loop testing capabilities.GPS、IRIG-BCode:PPSSynchronize interface and supportIEEE1588The timing approach facilitates in-station debugging and inter-station coordination. The test software offers a rich set of testing modules, enabling specialized testing for protective control devices, merging units, intelligent terminals, switches, and more. It is an invaluable instrument for substation debugging, intelligent equipment research and development, and relay protection technology training for smart substations.

IEC 61850Intelligent Substation Automation System Based on a Network Communication PlatformTranslation not provided as no Chinese content was given..Our company adheres to international standards that enable information sharing and interoperability among various intelligent electrical devices.

As a fully compliantIEC 61850Standard Optical Digital Relay Protection Tester, offering a comprehensive testing solution for relay protection and automation devices based on this standard..

Product Alias

Digital Relay Protection Tester,Digital Relay Protection Testers, Microcomputer Relay Protection Instruments, Relay Protection Testers, Six Relay Relay Protection Testers, Relay Test Instruments, Six Relay Relay Test Instruments, Six Relay Relay Protection Verifiers, Relay Verification Instruments, Six Relay Relay Verification Instruments

Product Features

Complete Light Ports: Equipped with16No Chinese content provided. Please provide the text to be translated.100M-FXOptical Interface12No Chinese content provided. Please provide the text to be translated.FT3Send and2No Chinese content provided, so no translation needed.FT3Received, simulated12No Chinese content provided, original return: "None."MUConducting protection tests.

Electrical Port Monitoring Feature: Equipped with1No Chinese content provided. Please provide the news content to be translated.GWan Di kou1000MOur website now features an output monitoring function, which can monitor input and output data during the testing process. This is achieved through a connection with a notebook.GThe network port can enable the functionality of a digital multimeter.

A variety of standard messages: available in compliance withIEC61850-9-1/9-2/9-2LE、GOOSE 、IEC60044-7/8 FT3、FT3LEA variety of message types.

Data Collector Output: Offers message outputs from multiple manufacturers' data collectors.

Unified Unit Test Mode: Output Collector FT3/FT3LESampled value messages in format, reading the merged unit9-2OrFT3Message, measuring the phase difference and angle difference of the merged unit.

Network Analyzer Feature: CaptureIEC 61850OrFT3Data packets, displaying and recording data waveforms, and simulating frame loss and scrambled output.

Mini Signal Output Function:12Low Signal Simulation Output, providing testing for protective devices designed for low signal inputs.

Optical Signal Testing: Simulates packet loss and scrambled codes.SMVData Error and ProvidedGOOSEStorm Testing

Output Waveform Visualization: Creation's24Our waveform output acquisition and recording feature provides a直观 display of the output waveform from the local or external equipment, along with digital recording, effectively addressing the issue where digital protection systems cannot directly measure and display waveforms.

Complete Analysis of Model Files: Comprehensive AnalysisSCL（SCD、ICD、CIDFile, achieving realization ofSV、GOOSEAutomatic configuration of information, capable of flexibly and conveniently interfacing with various models of protective interfaces.

Multiple time synchronization modes: available in second pulse,IRIG-BCode orIEEE1588On time.

Built-inGPSModule:GPSDirect control, capable of bidirectional time-synchronization testing, and performing fiber optic longitudinal difference protection tests, etc.

High Compatibility: Featuring a test interface and operation habits similar to traditional relay protection instruments, making it easy for test personnel to quickly master.

Dual Operation Mode: With an integrated industrial computer, it allows standalone operation and can also be connected to a PC for operation. Both methods offer identical functions, providing a truly comprehensive dual operation mode.

Offering Smart Station Automation Test Software: Application and Smart Station Debugging SupportIEC61850Automated testing for protection, reading parameters such as soft pressure plates, set values, control words, etc., and capable of editing and modifying them for issuance. The program automatically adjusts dosages based on experimental projects, automatically engages and disengages pressure plates, and sets control words for testing.

Satisfying Intelligent Station Automatic Testing: ForThe "Six Unification" intelligent substation reduces the workload of on-site debugging personnel by enabling one-click operation from configuration to report generation.
