Pipe Gauge

Preface

1R&D Significance

    Our company has a history of over thirty years in the research and production of underground pipeline detection equipment. While focusing on the development and manufacturing of underground pipeline detectors, we have been dedicated to providing services and research in metal pipeline routing and fault testing technology for many years. We have resolved numerous complex issues for our clients, earning their trust and support. Simultaneously, we brought back site-specific problems for targeted research, ultimately delivering the desired, uniquely domestic solution that our users have been anticipating."Integrated Metal Pipeline Detector." The successful development of this product resolves the long-standing issue of live-line path finding for power supply departments; it also addresses the difficulty in accurately tracing faulted pipeline paths; it opens up a new field for metal pipeline pathfinding, and breaks the overseas product monopoly in China.

2Application Scope

    Since its launch, the product has been widely used in urban power supply bureaus, county electricity authorities, railway power supply sections, large and medium-sized enterprises (including oil, chemical, coal, power plants, and steel mills), educational institutions, property communities, urban street lighting, highways, and communication maintenance departments due to its powerful functions and superior performance. With our robust technical support, it plays a crucial role in rapid repairs and quick location of underground pipelines for power supply and consumption departments.

3  Warm Reminder

    Although the instrument is powerful in function and superior in performance, it is still a tool, a tool that assists people in solving problems. It cannot directly tell people the specific location of the circuit, but the operator can easily judge and draw conclusions based on the various information reflected by the instrument.

    The company is committed to relentless efforts in product improvement and enhancement, continuously introducing new products with more advanced technology, superior performance, and comprehensive features. We will provide you with a solid material foundation and robust technical support in the field of metal pipeline surveillance and testing. At the same time, we hope to receive valuable feedback from our users.

To ensure safe and efficient operation of this instrument and to maximize its functionality, please carefully read the user manual before using the equipment.

Instrument Overview

1 Working Principle

    This instrument is based on the reflection principle of electromagnetic waves during transmission and the principle of electromagnetic induction, combined with digital filtering. High-tech products designed for wireless reception and software control.

Electromagnetic Induction: Its basic working principle involves a transmitter generating electrical and magnetic waves, which are then transmitted to underground metallic pipelines through various transmission connections. Upon detecting the electromagnetic waves, the metallic pipelines induce a current on their surface. This induced current propagates along the metallic cables to a distance. During this propagation, the current radiates electromagnetic waves back towards the ground through the cables. When the underground pipeline tester's receiver detects these waves on the ground directly above the metallic pipelines, the variations in the received signal strength allow for the determination of the location and direction of the underground pipelines.

The principle's realization conditions: Firstly, there must be a signal source capable of emitting sufficient electrical energy, forming an electric current in the transmission line designed for electrical power. As the current flows, it generates a magnetic field around the line; secondly, there must be a circuit capable of receiving this specific magnetic field, displaying the changes in the magnetic field as electrical signals.

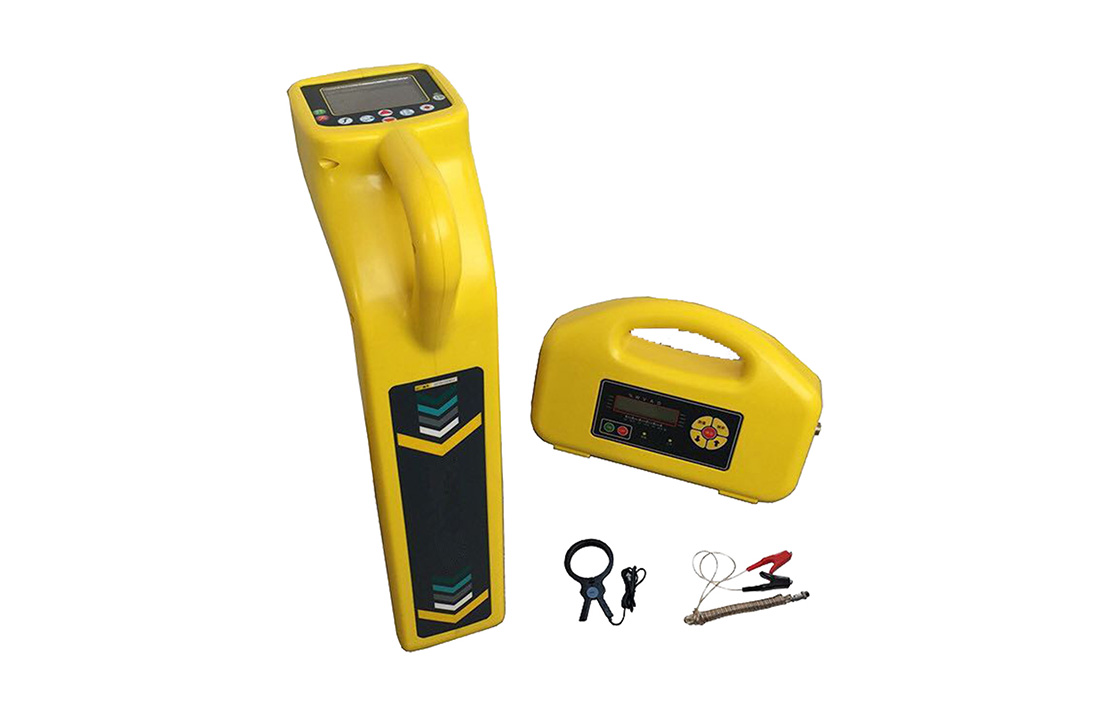

2Instrument Features

1Transmitter Features

1User-friendly software with a full Chinese menu. Simple and clear key definitions. Quick and straightforward measurement methods.

2Constant power output and automatic matching ensure optimal operation of the machine. The built-in insulation circuit resistance meter function automatically measures the loop impedance between metallic pipelines and ground, as well as between phases, assisting in determining the insulation properties of the metallic pipelines.

3Our metal pipe routing success rate, testing accuracy, and convenience are superior to any domestic detection equipment.

4The instrument boasts powerful data processing capabilities and a user-friendly display interface.

5Equipped with built-in lithium batteries, it can test the routing of metal pipelines in environments without power, ensuring daily operations.

2Receiver Features

1) Compact and easy to use, powered by a rechargeable lithium battery, operated by one person, simple to operate.

2) Digital design, software control, stable and reliable performance.

3) The measured information is provided to the operator in three ways: by size of numbers, length of up/down grating, and the tempo of sound, making the testing process effortless and smooth.

4) The receiver features low-battery alarms and automatic shutdown protection functions.

5Receiving unit capable of receivingAThe word or probe loss rod is pinpointed using the step voltage method.

6The receiver is compatible with an identification receiver coupling clamp for pipeline differentiation.
