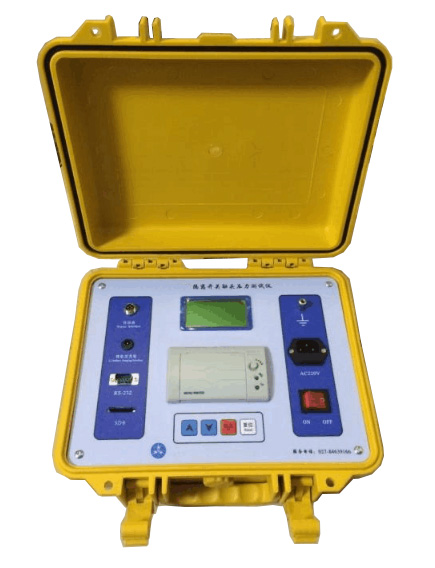

1Summary

Outdoor high-voltage disconnect switches expose their transmission components directly to the atmosphere, enduring sun and rain. Since they are not operated frequently, the transmission parts like shaft pins and bearings lack lubrication and relative movement, leading to frequent difficulty in operation. The state detection methods for high-voltage disconnect switches mainly rely on infrared, contact resistance, and ultrasonic for conducting parts and pillar insulators, but there is no effective monitoring method for mechanical failures. Dependence is placed on the product's existing quality and corrosion resistance, as well as the subjective experience and technical capabilities of on-site staff. This instrument achieves the detection and analysis of the mechanical properties of disconnect switches, enabling objective and accurate judgments of their state. After the installation and debugging of the disconnect switch is complete, it needs to be inspected to determine if there are any original defects. After some time of operation, on-site inspections can be conducted to analyze the trend of important parameters to predict the presence of defects, thereby providing a scientific basis for condition-based maintenance. As for equipment installation and factory production...AB-class maintenance final quality inspection methods can also serve as a basis for evaluating the daily operational status of equipment.

This instrument is suitable for testing and analyzing the operating forces of various high-voltage disconnector operating mechanisms.

2Key Technical Indicators

a.TorqueMeasurement Range:≤ 300N.m；

b.TorqueMeasurement Accuracy:≤1 N.m；

c.PowerMeasurement Range:≤ 2kW；

d.PowerMeasurement Accuracy:≤ 0.05kW；

e.Display Mode:7Large-screen Chinese LCD display with Chinese input.

f.Torque sensor wireless transmission range: ≥10Mi (Accessibility)

g.Communication Method:USB（UThe disk.

h.Work Power:Lithium-ion Battery24V，4HACharging Power Supply:AC220V±10%,50Hz；

i.Overall Power Consumption:10W；

j.Continuous Operating Time with Self-Generated Power: ≥6Hour

k.Great Storage Record:20000Data on Taiwan's isolation switches.

l.Office Environment: Temperature -10℃～40℃；Humidity≤80 %RH；

m.The translation is missing the actual Chinese content. Please provide the Chinese text you would like to translate.    Accumulation:375×320×225 mm。

n.Please provide the Chinese content to be translated.    Quantity:5 kg(No attachments included)。

3 Primary Functions

a.This instrument can measure and store the operating torque, motor input power, and rotational angle of the isolation switch, and can automatically draw the torque curve showing the relationship between operating torque and rotational angle.f(θ), Power CurveP(θ) can also automatically determine if the manual operation force meets national standards, providing a basis for analyzing operation anomalies.

b.This instrument can measure and store parameters such as the isolated switch motor's current, voltage, and operating time, providing a basis for determining if the motor is functioning properly.

c.The measurement data of this instrument can beUDownload the disc or data cable to your computer, and it will automatically convert towordAndExcelDocuments for further analysis.

d.Equipped with an automatic diagnostic feature, within the dedicated computer tool software environment, when selecting the standard torque curve for the same modelf0(θ) or Standard Power CurveP0When comparing, the system automatically displays the two curves on the same coordinate system and can automatically analyze and compare the quality of installation and debugging, drawing corresponding conclusions. Similarly, when selecting the same historical torque curve with the same machine,fn(θ) or Historical Power CurvePnWhen comparing, the system automatically displays the two curves on the same coordinate system and can automatically analyze and compare them, drawing the corresponding conclusions.

e.Within the computer-specific tool software environment, automatically generate test reports, which can include: operational torque, operational force, motor power, current, voltage, switching times, test curves, diagnostic conclusions, and more.
