Preface

1. Significance of R&D

Our company has a history of over thirty years in the research and production of underground pipeline detection equipment. While developing this technology, we have consistently dedicated ourselves to the services and research of metal pipeline routing and fault testing techniques, solving numerous complex issues for our clients and earning their trust and support. By bringing on-site problems back for targeted research, we have finally developed the much-anticipated, uniquely domestic "Integrated Metal Pipeline Detection Instrument." The successful development of this product has resolved the long-standing issue of live-line tracing for power supply departments; it has also tackled the difficulty of accurately tracing faulted pipeline paths; it has opened up a new field for metal pipeline tracing, and has broken the foreign product monopoly in China.

Scope of Application

Since the product was launched, it has been widely used in urban power supply bureaus, county electric power bureaus, railway power supply sections, large and medium-sized enterprises (such as oil, chemical, coal mines, power plants, steel mills), educational institutions, property communities, urban street lighting, highways, and communication maintenance departments. With our robust technical support, the product plays an essential role in rapid repair and quick location of underground pipelines for power supply and consumption departments.

Warm reminder

The instrument, though powerful in functionality and superior in performance, remains a tool—a tool to assist humans in solving problems. It cannot directly tell the exact location of the circuit, but the operator can easily make judgments and conclusions based on the various information reflected by the instrument.

The company is committed to relentless efforts in product improvement and enhancement, continuously introducing new products with more advanced technology, superior performance, and more comprehensive features. We aim to provide a solid material foundation and robust technical support in the fields of metal pipeline surveillance and testing. We also hope to receive valuable feedback from our users.

To ensure safe and effective operation of this instrument, and to fully utilize its functions, please carefully read the user manual before using the equipment.

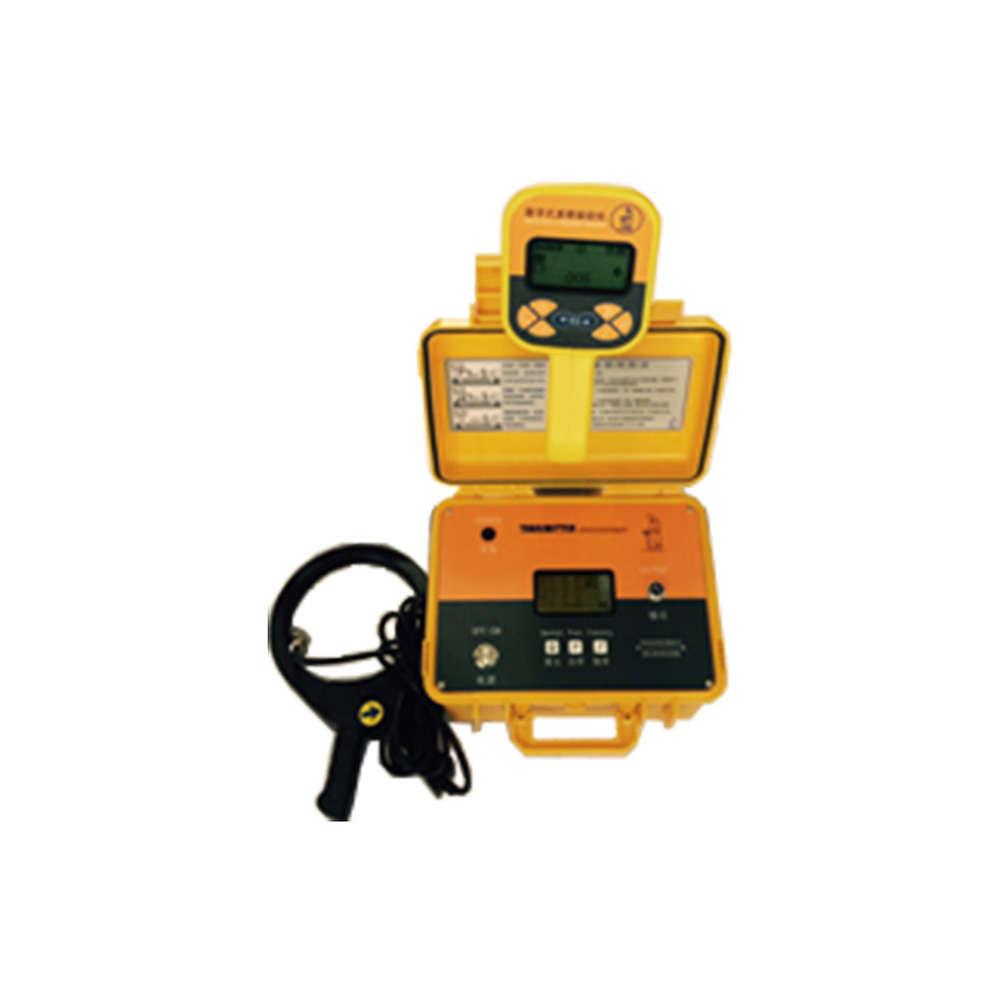

Instrument Overview

Operating Principle

This instrument is a high-tech product designed based on the reflection principle of electromagnetic waves during transmission and the principle of electromagnetic induction, incorporating digital filtering, wireless reception, and software control.

Electromagnetic Induction: The fundamental working principle is as follows: An transmitter generates electrical and magnetic waves, which are then transmitted underground to the detected metallic pipeline through various transmission connections. Upon sensing the electromagnetic waves, the metallic pipeline induces current on its surface. This induced current propagates along the metallic cable, and in the process, emits electromagnetic waves back towards the ground. When the underground metallic pipeline test instrument's receiver detects the electromagnetic waves on the surface, it receives the signal directly above the metallic pipeline. The intensity variations of the received signals can then be used to determine the location and direction of the underground metallic pipeline.

The principle's realization conditions: Firstly, there must be a signal source capable of emitting sufficient electrical energy, forming an electric current in the transmission line designed for electrical power. As the current flows, it generates a magnetic field around the line; secondly, there must be a circuit capable of receiving this specific magnetic field, displaying the changes in the magnetic field as electrical signals.

2. Instrument Features

Transmitter Features

1) User-friendly software with full Chinese menu. Clear and straightforward key definitions. Simple and quick measurement methods.

2) Constant power output and automatic matching ensure optimal operation of the machine. Built-in insulation circuit resistance meter function automatically measures the loop impedance of metal pipelines to the ground and between phases, assisting in determining the insulation properties of the metal pipelines.

3) Our metal pipeline path search success rate, testing accuracy, and ease of use surpass any domestic detection equipment.

4) The instrument boasts powerful data processing capabilities and a user-friendly display interface.

(5) Equipped with built-in lithium-ion battery power, it can test the routing of metal pipelines in environments without power, ensuring daily operations.

Receiving Unit Features

Portable, lightweight, and easy to use, powered by a rechargeable lithium battery, it can be operated by one person with simple operation.

2) Digital design, software control, stable and reliable performance.

3) Information is provided to the operator in three ways: by numerical size, the length of the light and sound gratings, and the tempo of the sounds, making the testing process easy and comfortable.

4) The receiver features low-battery alerts and automatic shutdown protection.

5) The receiver can be equipped with an A-frame or probe rod for pinpointing using the step voltage method.

6) The receiver is compatible with identification coupling pliers for pipeline identification.
