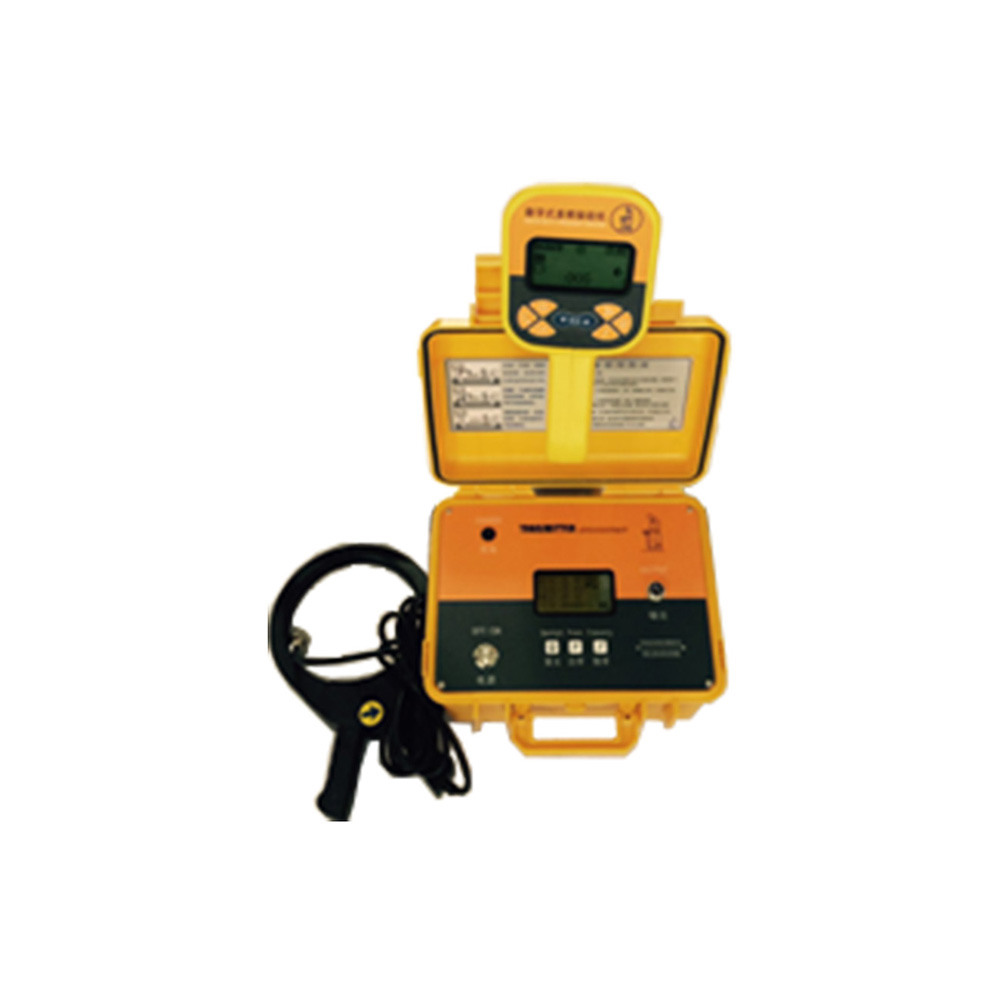

Pipe Detection Instrument Manufacturer

Pipeline management and maintenance, urban planning and construction, and power supply departments' pipeline inspections are essential for pipeline maintenance units.

(1) Multi-functional

Transmitter Function: Equipped with three signal application modes—inductive, direct, and clamp, suitable for various on-site requirements.

2. Receiver Function: Used for measuring the location, direction, burial depth, and current of underground cables.

3. Left and right positioning arrows indicate the target pipeline location, with quick positioning.Please provide the Chinese content to be translated.. Indeed; Forward and backward arrowsThe decibel (dB) value indicates the location and size of the coating's damage points.

4. Backlit feature for night-time emergency use.

5. Burial Cable Fault LocationNo Chinese content provided, please provide the text to be translated.. IndeedPositioning.

6. Current Measurement: Measures the current applied by the transmitter to the pipeline under test.

7. Multimeter Functionality: Capable of measuring output voltage, line voltage, line current, impedance, and power. Tests the conductivity and insulation quality of cables before and after cable fault detection.

8. External Inductive Clamp: Ideal for situations where direct signal connection is not possible during cable detection.

(High) Positioning Accuracy:

Multiple measurement modes for pipeline location(Gulval Mode, Peak Mode, Wide Peak Mode, Peak Arrow Mode), capable of mutual verification to ensure pipeline locationPlease provide the Chinese content you would like translated.. SureNo Chinese content provided.

1、Extreme.Great Value MethodThe horizontal component or gradient changes can be measured using the Peak Mode, Wide Peak Mode, and Peak Arrow Mode, and the location is determined based on the position of the large values.

2、Extreme.Insightful ApproachUtilizing the valley mode, the positioning is achieved by measuring the change in the vertical component, based on the position of its minimum value.

(3) Various Bathymetric Methods

Offering a variety of depth measurement methods available at your convenience., and can be mutually verified.

Dual-Level Coil Direct Reading Method

2. Single-level coil methods: 80% and 50% approaches

3. The 45-Degree Method.

Strong anti-interference capability

1. Wide range of observation parameters: capable of measuring both horizontal and vertical components, as well as horizontal gradients.

2. High Emission Power: The transmitter outputs up to 10W with continuous adjustable power, allowing for flexible selection based on requirements.

3. High work frequency:

Transmitter Frequency:128Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Receiver Frequency: Radio50Hz、100Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Based on the characteristics of the target pipeline(Materials, structure, burial depth, length, etc.), select a suitable working frequency based on the environment.

(Simplified Operation)

Intuitive: Utilizes a graphical display to continuously and in real-time show various parameters and signal strengths during the detection process.

2. Auto: Automatically switches to dual horizontal antenna mode and adjusts the receiver sensitivity during depth measurement for optimal signal, and then automatically returns to the previous working mode after depth measurement is complete.

(6) Extended work hours, low operational costs

The transmitter is equipped with a high-capacity lithium-ion battery pack.A single charge can power the field exploration equipment for a full workday, and it is reusable, significantly reducing the detection costs.

(7) Dual AC/DC Transmitter

Under normal circumstances, if the transmitter's battery is fully charged, the instrument's built-in battery pack is used for power. In the event that the transmitter's battery is low during use but the detection task is not yet completed, a dedicated power adapter can be directly connected, allowing the instrument to continue functioning without the need to wait for it to recharge.
