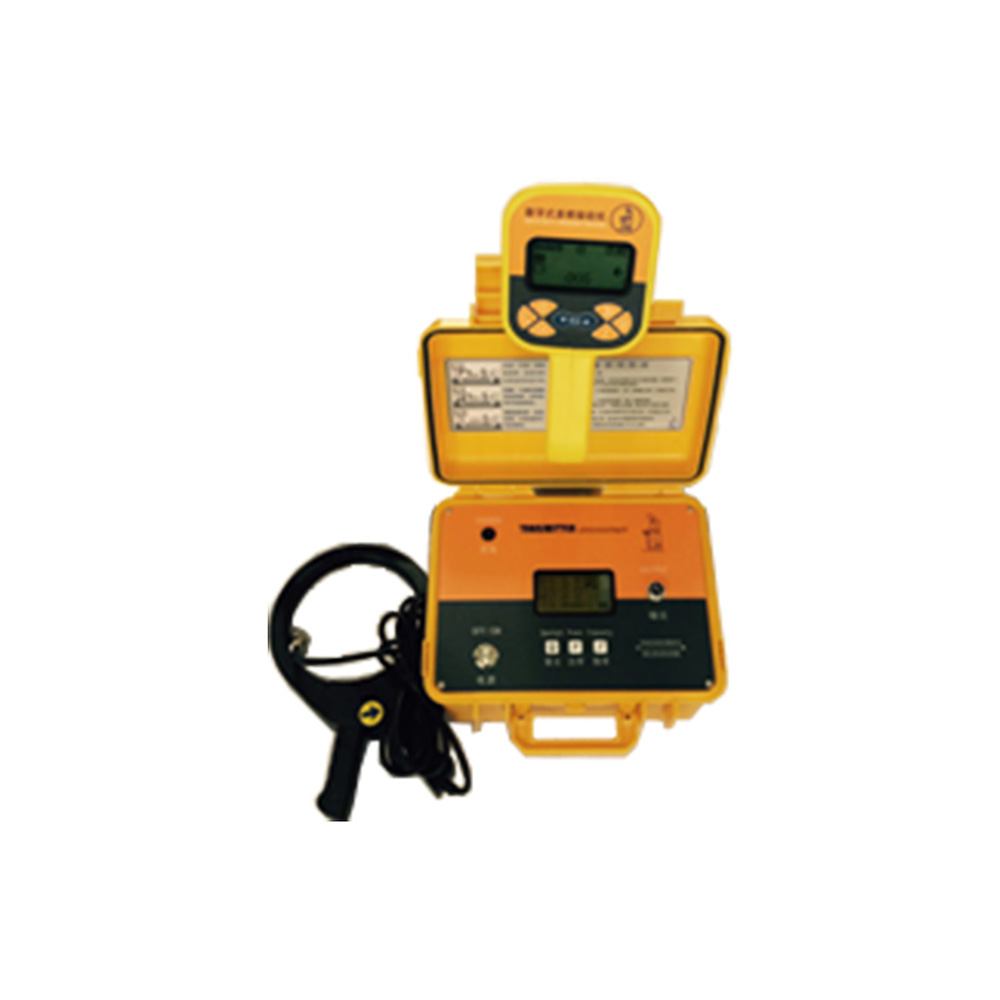

Pipe Detection Instrument

Pipeline management and maintenance, urban planning and construction, and power supply departments' pipeline inspections are essential for pipeline maintenance units.

（One）Feature-rich

Transmitter Function: Equipped with three signal application modes—inductive, direct, and clamp—suitable for various occasions.

2. Receiver Functionality: Designed for measuring the location, direction, burial depth, and current of underground cables.

3. Left and right positioning arrows indicate the target pipeline location, with quick positioning.Please provide the Chinese content to be translated.No content provided for translation.No Chinese content provided.The dB value indicates the location and size of the coating's damage point.

4. Backlit feature for night-time emergency operations.

5. Burial Cable Fault LocationNo Chinese content provided for translation.. IndeedPositioning.

6. Current Measurement: Measures the current applied to the pipeline by the transmitter.

7. Multimeter Function: Measures output voltage, line voltage, line current, impedance, and power. Tests the continuity and insulation quality of cables before and after cable fault detection.

8. External Inductive Clamp: Ideal for situations where direct connection for signal application is not possible during cable detection.

(High Precision Location:

Multiple measurement modes for pipeline positioning(Gulval Mode, Peak Mode, Wide Peak Mode, Peak Arrow Mode), which can be mutually verified to ensure pipeline positioning accuracy.No Chinese content provided.. ExactTranslation: Degree.

1、Extreme.Great Value MethodThe horizontal component or gradient changes can be measured using peak mode, wide peak mode, or peak arrow mode, and their locations can be determined based on the position of the high values.

2、Extreme.Insightful ApproachUtilizing the valley mode, the location is determined by measuring the change in the vertical component, based on the position of its minimum value.

(3) Multiple Depth Measurement Methods

Multiple depth measurement methods available for selection, and can be mutually verified.

Dual-Level Coil Direct Reading Method

2. 80% and 50% single level coil methods

3. The 45-degree method.

(4) Strong anti-interference capability

1. Multiple observation parameters: capable of measuring both horizontal and vertical components, as well as horizontal gradients.

2. High Emission Power: The transmitter offers an output power of up to 10W, which is continuously adjustable to suit your needs.

3. High frequency of work:

Transmitter Frequency:128Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Receiver Frequency: Radio50Hz、100Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

In accordance with the characteristics of the target pipeline(Materials, structure, burial depth, length, etc.), select an appropriate working frequency based on the environment.

(Simplified Operation)

Intuitive: Utilizing graphical displays, it continuously and in real-time shows various parameters and signal strengths during the detection process.

2. Auto: During depth measurement, automatically switch to dual horizontal antenna mode and adjust the receiver sensitivity to optimize the measurement signal. Upon completion of depth measurement, automatically revert to the original working mode.

(6) Extended working hours, low cost of use

The transmitter is equipped with a high-capacity lithium battery pack.A single charge can power the fieldwork detection for a full workday, and it is reusable, significantly reducing detection costs.

(7) Dual AC/DC Transmitter

Under normal circumstances, if the transmitter's battery is fully charged, use the instrument's internal battery pack for power. Should the transmitter's battery run low during operation but the detection task is not yet completed, you can directly connect a dedicated power adapter to continue using the instrument without waiting for it to recharge.
