Pipe Detection Prospects

Pipeline management and maintenance, urban planning and construction, and power supply departments require pipeline inspections, which are essential for pipeline maintenance units.

(1) Feature-rich

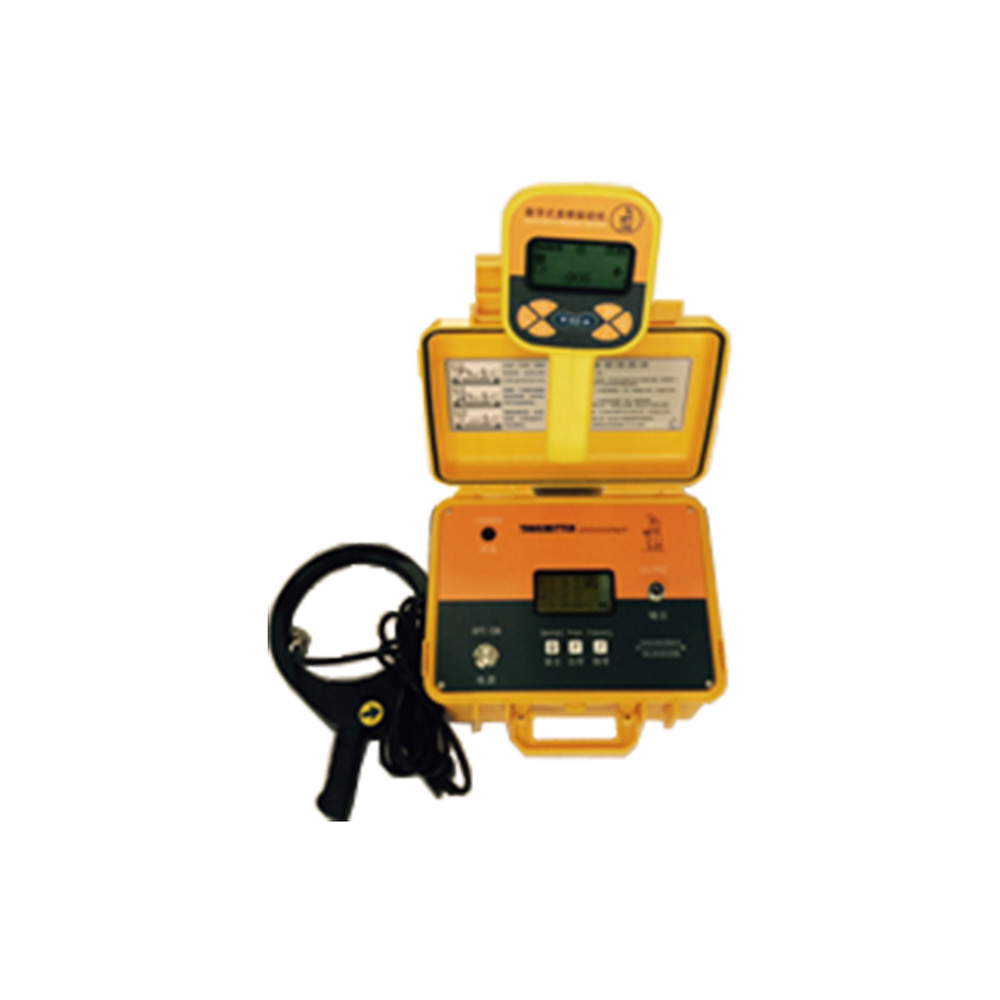

Transmitter Function: Equipped with three signal application modes – induction, direct, and clamp, suitable for various on-site requirements.

2. Receiver Function: Designed for detecting the location, direction, burial depth, and current measurement of underground cables.

3. Left and right positioning arrows indicate the target pipeline location, with quick positioning.Please provide the Chinese content to be translated.. (Note: There is no Chinese content provided, so the translation remains the same.)No Chinese content provided.The dB value indicates the location and size of the coating's damage points.

4. Backlit feature for nighttime emergency use.

5. Burial Cable Fault LocationPlease provide the Chinese content to be translated.No Chinese content provided, original text returned: .确Positioning.

6. Current Measurement: Measures the current applied by the transmitter to the pipeline under test.

7. Multimeter Functionality: Capable of measuring output voltage, line voltage, line current, impedance, and power. Tests the continuity and insulation quality of cables before and after cable fault detection.

8. External Inductive Clamp: Ideal for situations where direct signal application is not possible during cable detection.

(High Precision Positioning)

Multiple measurement modes for pipeline location(Valley Mode, Peak Mode, Wide Peak Mode, Peak Arrow Mode), inter-verifyable to ensure pipeline positioning accuracyNo Chinese content provided. Please provide the text to be translated.. CorrectDegree

1、Extreme.Great Value MethodThe horizontal component or gradient change can be measured using the Peak Mode, Wide Peak Mode, and Peak Arrow Mode, with the location of the high value determining the positioning.

2、Extreme.Insightful ApproachUtilizing the valley value method, the system locates by measuring the change in vertical components and determining the position of the lowest value.

(3) Diverse Depth Measurement Methods

Multiple depth measurement methods available for selection, and can be mutually verified.

1. Dual-Level Coil Direct Reading Method

2. 80% and 50% single horizontal coil methods

3. The 45-degree method.

Strong anti-interference capability

1. Multi-parameter observation: capable of measuring both horizontal and vertical components, as well as horizontal gradients.

2. High Emission Power: The transmitter outputs up to 10W and is continuously adjustable, allowing for any selection based on requirements.

3. High frequency of work:

Transmitter Frequency:128Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Receiver Frequency: Radio50Hz、100Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Pursuant to the characteristics of the target pipelineMaterial, structure, burial depth, length, etc., select a suitable working frequency based on the environmental conditions.

(Simplified Operation)

Intuitive: Utilizes graphical displays to continuously and real-time show various parameters and signal strengths during the detection process.

2. Auto: Automatically switches to dual horizontal antenna mode and adjusts the receiver sensitivity during depth measurement for optimal signal quality. Upon completion of depth measurement, it automatically returns to the previous working mode.

(6) Extended working hours, low cost of operation

The transmitter is equipped with a high-capacity lithium-ion battery pack.A single charge can power the field exploration equipment for a full workday, and it is reusable, significantly reducing the detection costs.

(7) Dual-mode Transmitter

In normal circumstances, if the transmitter's battery is fully charged, the instrument's internal battery pack is used for power. Should the transmitter's battery run low during use but the detection task is not yet completed, a dedicated power adapter can be directly connected, allowing the instrument to continue functioning without waiting for it to be fully charged.
