Pipe Detection Technology

Pipeline management and maintenance, urban planning and construction, and power supply departments require pipeline inspections, which are essential for pipeline maintenance units.

（1）Feature-rich

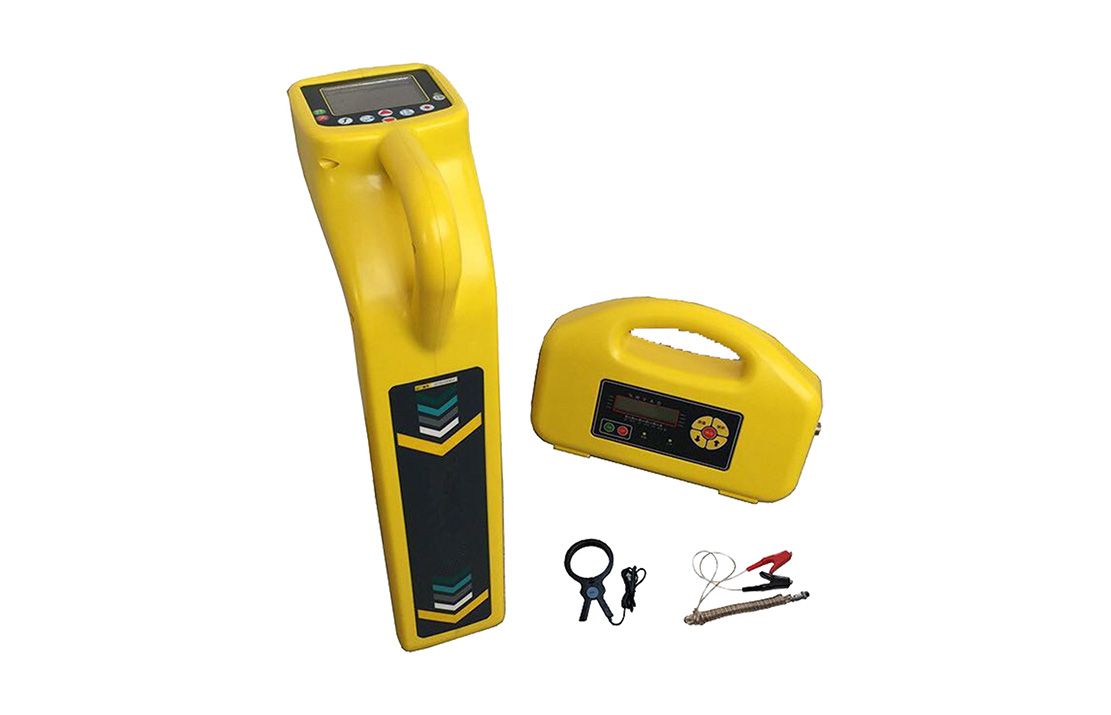

Transmitter Function: Equipped with three signal application modes including induction, direct, and clamp methods, suitable for various on-site requirements.

2. Receiver Functionality: Used for measuring the location, direction, burial depth, and current of underground cables.

3. Left and right positioning arrows indicate the target pipeline location, with quick positioning.No Chinese content provided, please provide the text to be translated.. Indeed; Forward and backward arrowsThe decibel (dB) value indicates the location and size of the coating's damage point.

4. Backlit feature for night-time emergency use.

5. Burial Cable Fault PointsPlease provide the Chinese content that needs to be translated.No Chinese content provided, nothing to translate.Positioning.

6. Current Measurement: Measures the current applied by the transmitter to the pipeline being tested.

7. Multimeter Function: Measures output voltage, line voltage, line current, impedance, and power. Tests the conductivity and insulation quality of cables before and after cable fault detection.

8. External Inductive Clamp: Ideal for situations where direct signal application is not possible during cable detection.

High positioning accuracy:

Multiple measurement modes for pipeline location(Valley Mode, Peak Mode, Wide Peak Mode, Peak Arrow Mode), interlocking for verification, ensuring pipeline location accuracyNo Chinese content provided, so the translation remains unchanged: "No Chinese content provided."No Chinese content provided, please provide the text to be translated.No Chinese content provided.

1、Extreme.Large Value MethodThe horizontal component or gradient changes can be measured using peak mode, wide peak mode, and peak arrow mode, and the location is determined based on the position of the high value.

2、Extreme.Insightful ApproachUtilizing the valley value mode, the system locates by measuring changes in the vertical component and identifying the position of its lowest value.

(III) Various Deep-Sea Measurement Methods

Multiple depth measurement methods available for selection, and can be mutually verified.

1. Direct-reading two-level coil method

2. 80% and 50% methods for single-level inductor

3. The 45-degree method.

(4) Strong anti-interference capability

1. Multi-parameter observation: capable of measuring both horizontal and vertical components, as well as horizontal gradients.

2. High Emission Power: The transmitter outputs up to 10W with continuous adjustable power, allowing for flexible selection based on requirements.

3. High work frequency

Transmitter Frequency:128Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Receiver Frequency: Radio50Hz、100Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

In accordance with the characteristics of the target pipeline(Materials, structure, burial depth, length, etc.), select an appropriate working frequency based on the environmental conditions.

(Simplified Operation)

Intuitive: Utilizes graphical displays to continuously and in real-time show various parameters and signal strengths during the detection process.

2. Auto: During depth measurement, automatically switches to dual horizontal antenna mode and adjusts the receiver sensitivity for optimal signal, then automatically returns to the previous working mode upon completion of depth measurement.

(6) Extended working hours with low cost of use

The transmitter is equipped with a high-capacity lithium battery pack.A single charge can power the fieldwork detection for a full workday, and it is reusable, significantly reducing detection costs.

(7) Dual-Mode Transmitter

Under normal circumstances, if the transmitter's battery is fully charged, the built-in battery pack of the instrument is used for power. Should the transmitter's battery run low during operation but the detection task is incomplete, a dedicated power adapter can be directly connected to ensure the instrument continues to operate normally without the need to wait for the instrument to be fully charged.
