Pipeline Detection Results Map

Pipeline management and maintenance, urban planning and construction, and power supply department pipeline inspections are essential for pipeline maintenance companies.

（1）Feature-rich

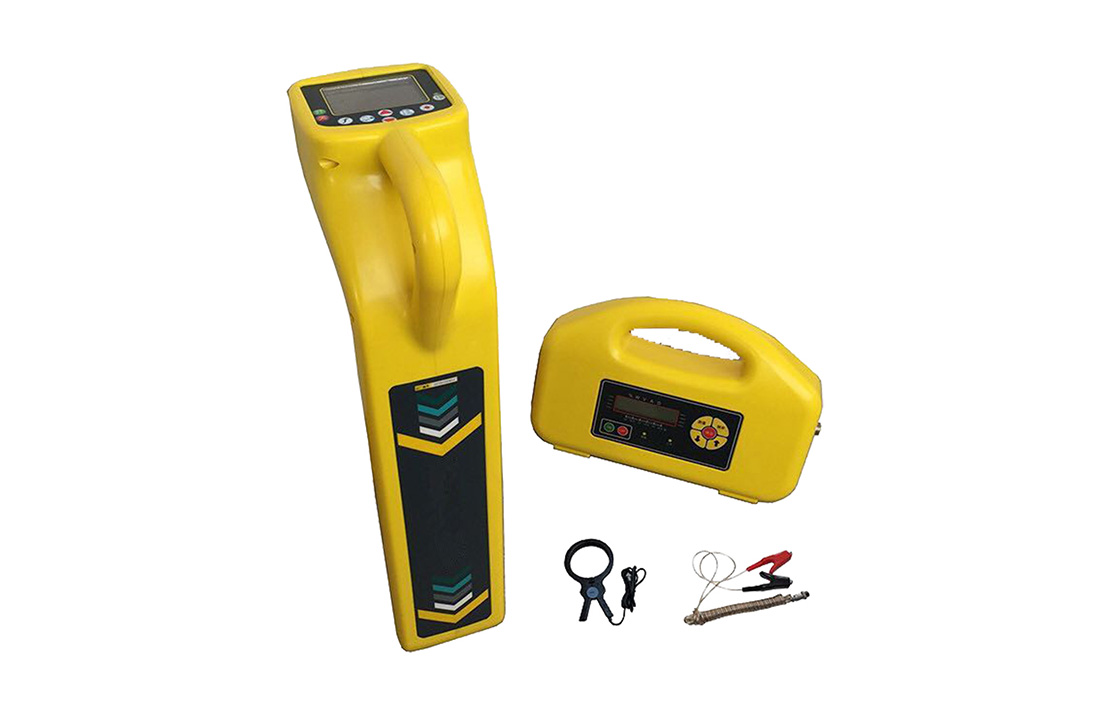

Transmitter Function: Equipped with three signal application modes—inductive, direct, and clamp—suitable for various occasions.

2. Receiver Functionality: Used for measuring the location, direction, burial depth, and current of underground cables.

3. Left and right positioning arrows indicate the target pipeline location, with quick positioning.Please provide the Chinese content that needs to be translated into American English.. IndeedNo Chinese content provided.The dB value indicates the location and size of the coating's breach points.

4. Features backlit functionality, ideal for emergency operations at night.

5. Subterranean Cable Fault LocationPlease provide the Chinese content to be translated.. .Positioning.

6. Current Measurement: Measures the current applied to the tested pipeline by the transmitter.

7. Multimeter Function: Measures output voltage, line voltage, line current, impedance, and power. Tests the continuity and insulation quality of cables before and after cable fault location.

8. External Inductive Clamp: Ideal for situations where direct signal application is not possible during cable detection.

High positioning accuracy:

Multiple measurement modes for pipeline location(Valley Mode, Peak Mode, Broad Peak Mode, Peak Arrow Mode), capable of mutual verification to ensure pipeline positioning accuracy.Please provide the Chinese content that needs to be translated.No content provided for translation.Please provide the Chinese content to be translated.

1、Extreme.Large Value MethodThe horizontal component or gradient changes can be measured using peak mode, wide peak mode, or peak arrow mode, and the location is determined based on the position of the high values.

2、Extreme.Xiaozhi MethodUtilizing the valley value mode, by measuring the change in the vertical component, the position of the minimum value is used for localization.

(3) Various Depth Measurement Methods

Our company offers a variety of depth measurement methods, available at your convenience., and can be mutually verified.

Direct Reading of Two-Level Coils Method

2. Single-level coil 80% method, 50% method

45-degree method.

Strong anti-interference capability

1. Comprehensive measurement parameters: capable of measuring both horizontal and vertical components, as well as horizontal gradients.

2. High Emission Power: The transmitter offers an output power of up to 10W and is continuously adjustable, allowing for flexible selection based on requirements.

3. High frequency of work

Transmitter Frequency:128Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Receiving Frequency: Radio50Hz、100Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Based on the characteristics of the target pipelineMaterials, structure, burial depth, length, etc., and select an appropriate working frequency based on the environment.

(E) User-friendly

1. Intuitive: Utilizing graphical displays, it continuously and in real-time shows various parameters and the strength of signals during the detection process.

2. Auto: During depth measurement, automatically switches to dual-level antenna mode and adjusts the receiver sensitivity for optimal signal quality. Upon completion of depth measurement, automatically returns to the previous working mode.

(6) Extended work hours, low cost of operation

The transmitter is equipped with a high-capacity lithium battery pack.A single charge can power the field exploration equipment for a full workday, and it is reusable, significantly reducing the detection costs.

(7) Dual Power Supply Transmitter

Under normal circumstances, if the transmitter battery is fully charged, the instrument's built-in battery pack is used for power supply. Should the transmitter battery run low during use but the detection task is not yet completed, a dedicated power adapter can be directly connected, allowing the instrument to continue functioning without the need to wait for it to recharge.
