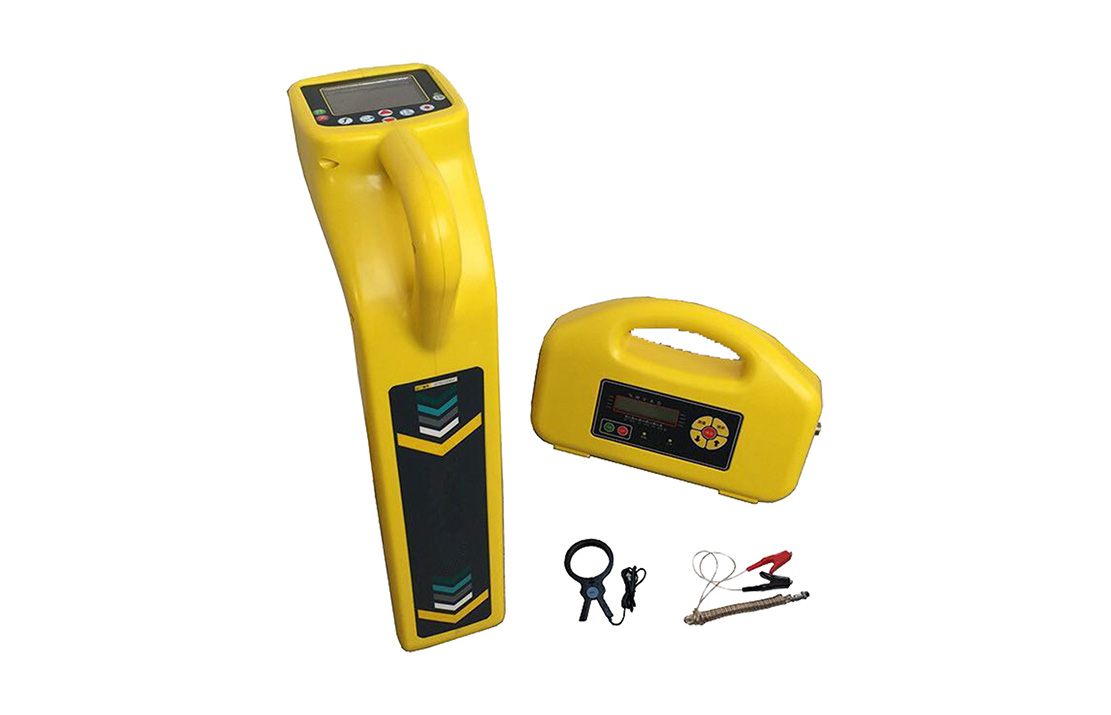

Pipe Locating Instrument

Pipeline management and maintenance, urban planning and construction, and power supply departments' pipeline inspections are essential for pipeline maintenance units.

(1) Multifunctional

Transmitter Function: Equipped with three signal application modes including induction, direct, and clamp methods, suitable for various on-site requirements.

2. Receiver Function: Designed for measuring the location, direction, burial depth, and current of underground cables.

3. Left and right positioning arrows indicate the target pipeline location, with quick positioning.Please provide the Chinese content that needs to be translated.Please provide the Chinese content you would like to be translated into American English.; Forward and backward arrowsThe decibel (dB) value indicates the location and size of the coating's damage point.

4. Backlit for night-time emergency use.

5. Burial Cable Fault LocationPlease provide the Chinese content you would like translated into American English.. ConfirmPositioning.

6. Current Measurement: Measures the current applied by the transmitter to the pipeline under test.

7. Multimeter Function: Measures output voltage, line voltage, line current, impedance, and power. Tests the continuity and insulation quality of cables before and after cable fault detection.

8. External Inductive Clamp: Ideal for situations where direct signal application is not possible during cable detection.

High positioning accuracy:

Multiple measurement modes for pipeline positioning(Valley Mode, Peak Mode, Wide Peak Mode, Peak Arrow Mode), inter-verifiable to ensure pipeline positioningPlease provide the Chinese content to be translated.. .Degree

1、Extreme.Great Value MethodThe horizontal component or gradient changes can be measured using the Peak Mode, Wide Peak Mode, and Peak Arrow Mode, and their positions can be located based on the location of the high values.

2、No Chinese content provided for translation..Insightful ApproachUtilizing the valley mode, the system locates by measuring changes in the vertical component and determining the position of its lowest value.

(3) Multiple Depth Measurement Methods

A variety of depth measurement methods are available for selection., and can be mutually verified.

Dual-Level Coil Direct Reading Method

2. 80% and 50% Single-Level Coil Method

3. The 45-Degree Method.

Strong anti-interference capability

1. Multi-parametric observation: Measures both horizontal components and vertical components, as well as horizontal gradients.

2. High Emission Power: The transmitter outputs up to 10W and is continuously adjustable, allowing for any desired selection based on need.

3. High frequency of work

Transmitter Frequency:128Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Receiver Frequency: Radio,50Hz、100Hz、512Hz、1KHz、2KHz、8KHz、33KHz、65KHz、83KHz。

Based on the characteristics of the target pipelineMaterial, structure, burial depth, length, etc., select a suitable working frequency based on environmental conditions.

(Easy to operate)

Intuitive: Equipped with a graphic display, it can continuously and in real-time display various parameters and the strength of signals during the detection process.

2. Auto: Automatically switches to dual-level antenna mode and adjusts the receiver sensitivity during depth measurement to optimize the signal quality. Upon completion of depth measurement, it automatically returns to the previous working mode.

(6) Extended work hours, low operational costs

The transmitter is equipped with a high-capacity lithium-ion battery pack.A single charge can power the field exploration equipment for a full workday, and it is reusable, significantly reducing the detection costs.

(7) Dual-Mode Transmitter

Under normal circumstances, if the transmitter's battery is fully charged, the instrument's internal battery pack is used for power. Should the transmitter's battery run low during use but the detection task is not yet completed, a dedicated power adapter can be directly connected, allowing the instrument to continue functioning without the need to wait for it to recharge.
