Faulty Cable Tester

Product Introduction

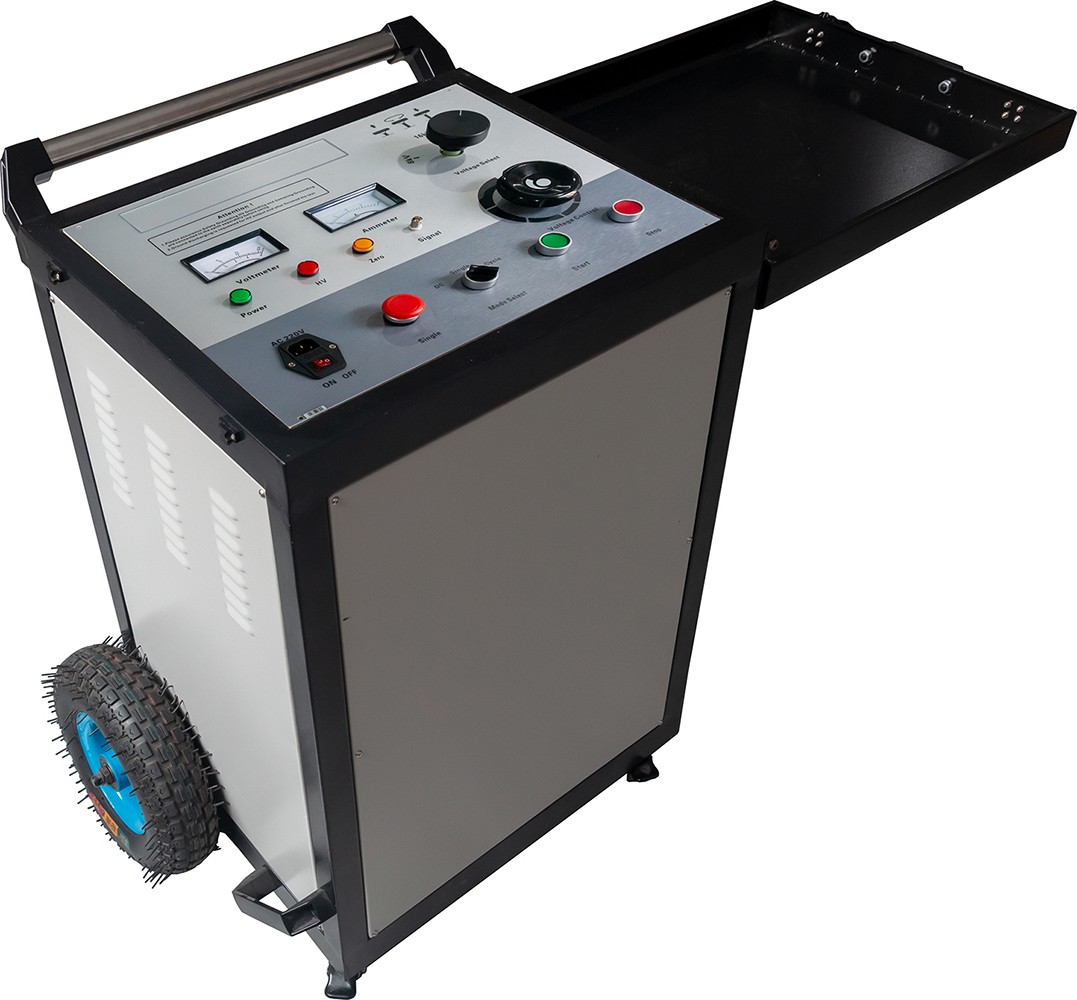

Integrated Cable Testing Positioning Power SupplyOur newly developed innovative replacement product in the field of cable fault testing research, domestically.Lead...firstlyMeets the "General Technical Conditions for High-Voltage Test Equipment" of the Power Industry Standard of the People's Republic of China. Mainly used for...During 35KV and below cable fault testing, high-resistance fault waveform sampling and discharge during faultPlease provide the Chinese content to be translated.. CorrectUse for pinpointing.

This unit employs the switching power supply principle, featuring compact size, lightweight, easy operation, and safety, which are its major characteristics. The entire instrument is approximately16 kg, easy to use on-site, reliable, and with stable performance. It replaces approximately 70 kg of transformers, operation boxes, and capacitors, the three major components. It also simplifies the cumbersome on-site wiring during cable testing, making it more convenient for on-site personnel.

Test Features

Available for use35KV and below cable fault testing includes high-resistance fault waveform sampling and cable fault dischargePlease provide the Chinese content to be translated.. Certainly.At the designated point, pierce the cable fault location and provide the designated point with a pulse shock high-voltage power supply.

Voltage regulation and automatic voltage stabilization features available.

Features automatic protection for open circuit and short circuit.

LCD display for output voltage values.

Electrostatic discharge sphere gap with adjustable electric spacing.

Ball gap electrically adjustable discharge.

Product Features

Equipment OperationAbsolutely. Please provide the Chinese content to be translated.Safety.

Compact Size360×260×330mm³, lightweight (16kg).

Continuous Operation4 hours.

Simple operation, convenient for on-site use.

Technical Specifications

High Working Voltage≮25KV

High Working Current≮30mA

Display Voltage Error: ＜±2%

Discharge Energy: ≮2450J/3.5S

Small Discharge Cycle3.2 seconds

Job Power: AC220V±10%  50Hz

Working Temperature ： -10℃－50℃

Work Humidity (Relative):≤80%

Altitude:Below 1,000 meters

High Power Consumption: ＜1.5KVA

Pulse Capacitor:4uf/25KV
