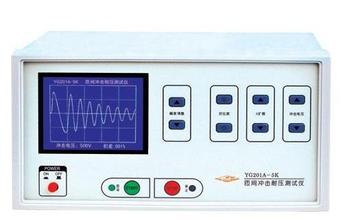

Guangwei Voltage Stress Tester

I. Overview

This series of instruments can detect the insulation strength and other technical indicators of the tested equipment or materials. They are widely used for the withstand voltage tests of electrical equipment, appliances, transformers, power cables, electric meters, motors, power outlets, cables, and more. They are suitable for the withstand voltage tests of household appliances such as televisions, fans, recorders, refrigerators, washing machines, microwave ovens, and hair dryers, as well as for electronic whole machines like instruments and meters. They provide testing means for the implementation of national safety standards, thus highlighting their importance. They have become an indispensable instrument equipment for scientific research agencies, metrological testing departments, and the electronics industry in testing electronic instruments and household appliances, etc.GB4706.1Standard.

This series of instruments boasts an aesthetically pleasing design and user-friendly operation. The output voltage is clearly displayed on a digital panel for accuracy, intuitiveness, and precision. The entire unit is technologically advanced with a well-organized layout, featuring high accuracy, excellent reliability, and easy maintenance.

Main Technical Indicators and Parameters

Test Voltage AC:0～5（kV）

Voltage Accuracy 0.5～5（kV）≤±5%

Leakage Current Range AC:0～20（mA）

Leakage Current Accuracy AC:0.2～20（mA） ≤±5%

Output Waveform 50HzSine Wave or Direct Current

Transformer Power 300VA

Time Management Digital Display1～99（s）±5%Hand-Controlled ∞ Any Pre-set

Display Method Test voltage, leakage current, and time are all fully digital displays.

Test Discrimination Qualified/Non-compliant; Non-compliant audio-visual alarm

Environmental Requirements Relative Humidity:≤75%RH    Ambient Temperature:0℃～40℃

Surrounded by no strong electromagnetic field interference sources; free from excessive dust and corrosive gases; well-ventilated.

Weight Please provide the Chinese content you would like translated.25kg

Volume 320×255×175

Power Supply AC 220V ±10% 50Hz±5%
