Power Meter

I. Overview:

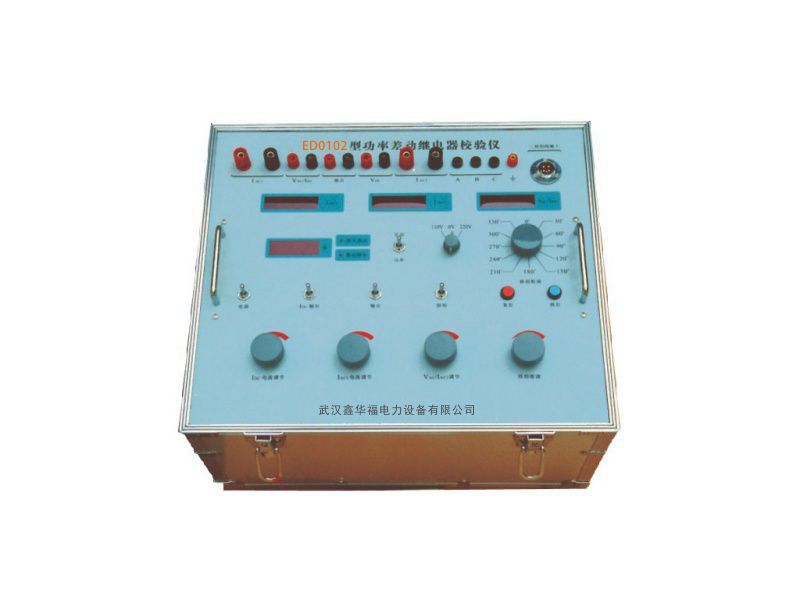

This test bench is for verifyingLG－11、LG－12Type Power RelayDCD－2、DCD－5Designing type differential relay.

This instrument boasts stable performance, comprehensive functions, and simple operation, and can be tested for the following items:

1. Submersible Test (Power)

2. Motion Area and High Sensitivity Angle Testing (Power)

    3. Differential Current

    4. DC Assisted Magnetization (Differential)

    5. Motion Encoders (Differential)

    6. Braking Characteristics (Differential)

II. Technical Performance:

    Input Power: Three-phase Four-wire  380VAC

    2. AC Output Voltage:0~250VContinuous adjustable

    3. Dual Output of Alternating Current:0~50AContinuous Adjustment

    4. Direct Current:0~15AContinuous adjustable

    5. Phase Shifting Output: Continuous0⁰~360⁰Continued Adjustability

    6. Voltage and current are displayed on a three-and-a-half-digit digital meter, with precision0.5No Chinese content provided for translation.

    7. Phase is in digital phase display, with accuracy1.0Grade

    8. Application Environment: Temperature-10 ℃~ 40℃,Humidity <80%RH

    9. Dimensions:560×450×217mm³

    10. Weight: Approximately35kg
