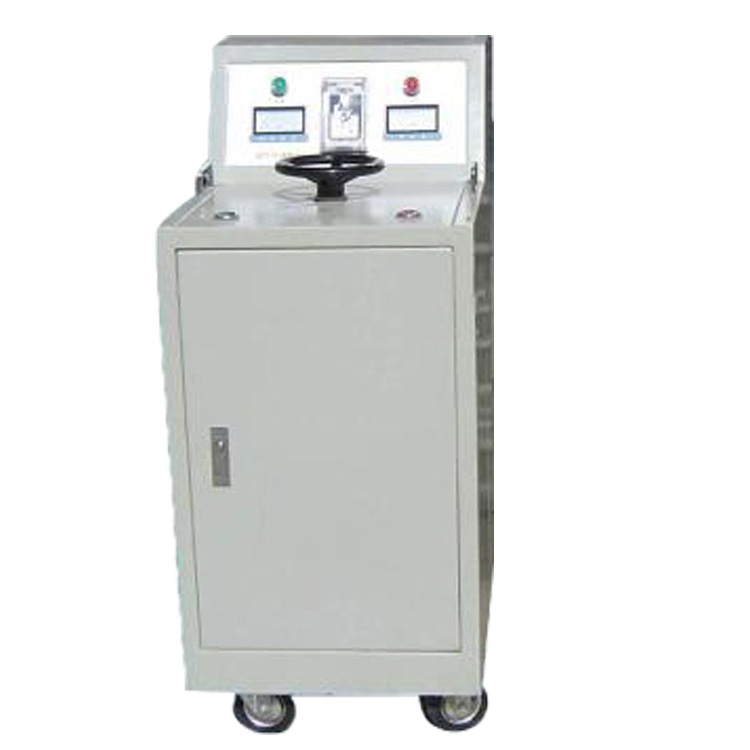

Industrial Frequency Voltage Proof Tester

I. Overview

Power frequency withstand voltage test is a strict, effective, and direct method for determining the insulation strength of electrical equipment. It can detect significant concentrated defects with high danger, playing a decisive role in determining whether electrical equipment can continue to operate. It is an important means to ensure the insulation level of equipment and prevent insulation accidents.

This device is a state-of-the-art high-voltage test equipment designed in accordance with the new national electricity industry standards. It is used to conduct insulation strength tests under specified voltages on various electrical products, components, and insulating materials. This ensures product insulation levels, identifies insulation defects in the tested items, and measures the ability to handle overvoltage conditions.

Section II: Product Features

1.Monitoring Functions: High Voltage Voltage, Low Current, Zero Position Indicator, Power Indicator, Operation Indicator, Timing Indicator

2.Protection Features: Overcurrent Protection, Zero Starting Protection, Audible and Visual Alarm Alerts

3.Employing a new timer relay, wider timing range is achieved.1S～99H）

4.Utilizing a new type of current relay, morePlease provide the Chinese content that needs to be translated into American English..Certainly.Enhanced reliability ensures personal and equipment safety.

5.The test transformer's high-voltage coil is a cylindrical multi-layer tower structure.No Chinese content provided for translation..QualityThe wire is wound with polyester varnished copper wire and high-voltage insulation materials.

6.Test Transformer5kVAEquipped with removable iron wheels, it boasts features such as light weight, compact size, easy movement, and superior performance.

Technical Indicators

1Terms of Use:

（1The workplace should be free from gases, vapors, chemical dusts, and other explosive and corrosive media that could severely affect insulation.

（2Ambient Temperature    -20～+50℃

（3Ambient Humidity    ≤85% RH(Non-Condensate)

，
