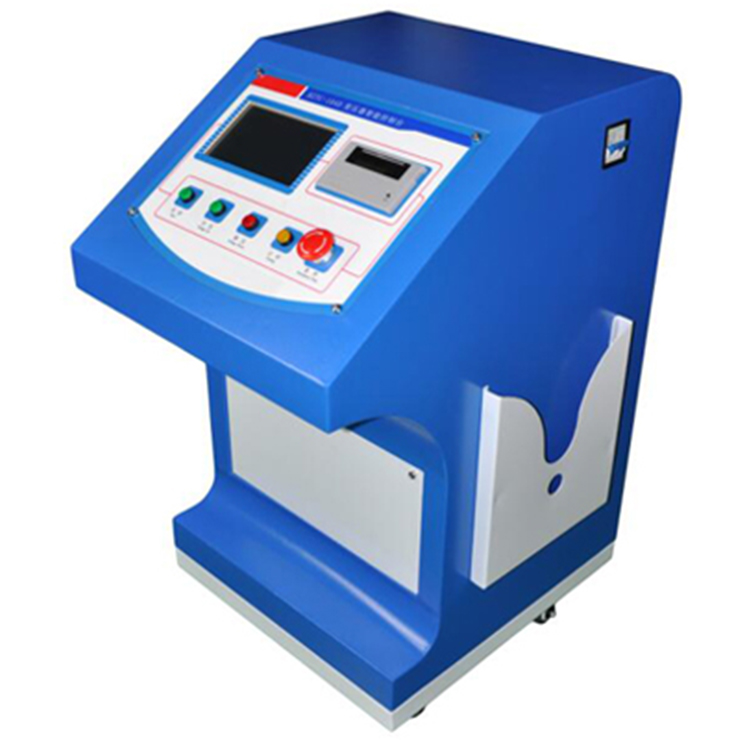

Industrial Frequency Voltage Withstand Test Equipment

I. Overview

Power frequency withstand voltage tests are a strict, effective, and direct method for determining the insulation strength of electrical equipment. They can identify significant concentrated defects that pose high risks, playing a decisive role in determining whether electrical equipment can continue to operate. They are an essential means to ensure the insulation level of equipment and prevent insulation accidents.

This device is a state-of-the-art dielectric strength testing equipment designed in accordance with the new national power industry standards. It is used to conduct insulation strength tests under specified voltages on various electrical products, components, and insulating materials. This helps evaluate the insulation level of the products, identify insulation defects in the tested items, and measure the ability to withstand overvoltage.

Section II: Product Features

1.Monitoring Functions: High Voltage Voltage, Low Current, Zero Position Indicator, Power Indicator, Operation Indicator, Timer Indicator

2.Protection Features: Overcurrent Protection, Zero-Start Protection, Audible and Visual Alarm Alerts

3.Utilizing a new timer relay, the timing range is broader.1S～99H）

4.Utilizing a new type of current relay, moreNo Chinese content provided. Please provide the text to be translated..Please provide the Chinese content that needs to be translated into American English.Enhanced reliability, ensuring safety for personnel and equipment.

5.The test transformer's high-voltage coil is cylindrical and multilayered in a tower design.Please provide the Chinese content to be translated into American English..No Chinese content provided, so no translation is necessary.The product is wound with polyester coated wire and high-voltage insulation materials.

6.Test Transformer5kVAEquipped with removable iron wheels, it boasts features such as light weight, compact size, easy mobility, and superior performance.

III. Technical Indicators

1Terms of Use:

（1The workplace should be free from gases, vapors, chemical dusts, and other explosive and corrosive media that significantly impair insulation.

（2Ambient Temperature    -20～+50℃

（3Ambient Humidity    ≤85% RH(Non-Condensate)
