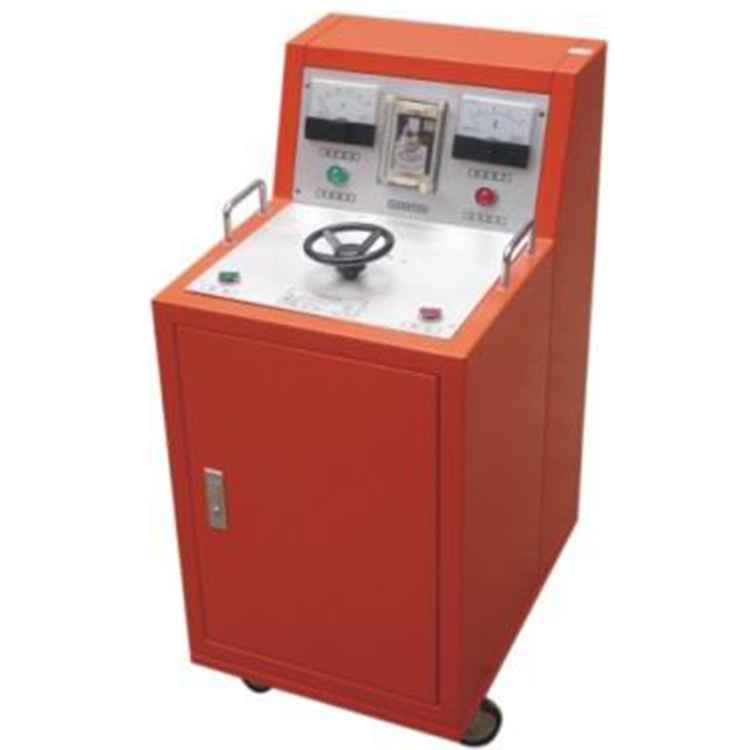

Power Frequency Dielectric Strength Test Equipment

I. Overview

Power frequency withstand voltage test is a strict, effective, and direct method for determining the insulation strength of electrical equipment. It can detect significant concentrated defects with high risk, playing a decisive role in determining whether the electrical equipment can continue to operate. It is an important means to ensure the insulation level of the equipment and to prevent insulation accidents.

This device is a high-performance dielectric strength testing equipment designed in accordance with the new national standard for electrical power in China. It is used to conduct insulation strength tests under specified voltages on various electrical products, electrical components, and insulating materials. This ensures the insulation level of the products, identifies insulation defects in the tested items, and measures the ability to withstand overvoltage.

Section II: Product Features

1.Monitoring Functions: High Voltage Voltage, Low Current Current, Zero Position Indicator, Power Indicator, Operation Indicator, Timer Indicator

2.Protection Features: Overcurrent Protection, Zero Starting Protection, Audio-Visual Alarm Alerts

3.Utilizing a new type of timer relay, wider timing range achieved.1S～99H）

4.Utilizing a new type of current relay, even more...Please provide the Chinese content to be translated..Certainly.Enhanced reliability, ensuring safety for personnel and equipment.

5.The test transformer's high-voltage coil is a cylindrical multi-layer tower design.No Chinese content provided, please provide the text to be translated..QualityThe wire is wound with polyester enamelled wire and high-voltage insulation material.

6.Test Transformer5kVAEquipped with removable iron wheels, it boasts features such as light weight, compact size, easy movement, and superior performance.

III. Technical Indicators

1Terms of Use:

（1The workplace should be free from gases, vapors, chemical dusts, and other explosive and corrosive media that could severely affect insulation.

（2Ambient Temperature    -20～+50℃

（3Ambient Humidity    ≤85% RH(Non-Condensable Water)
