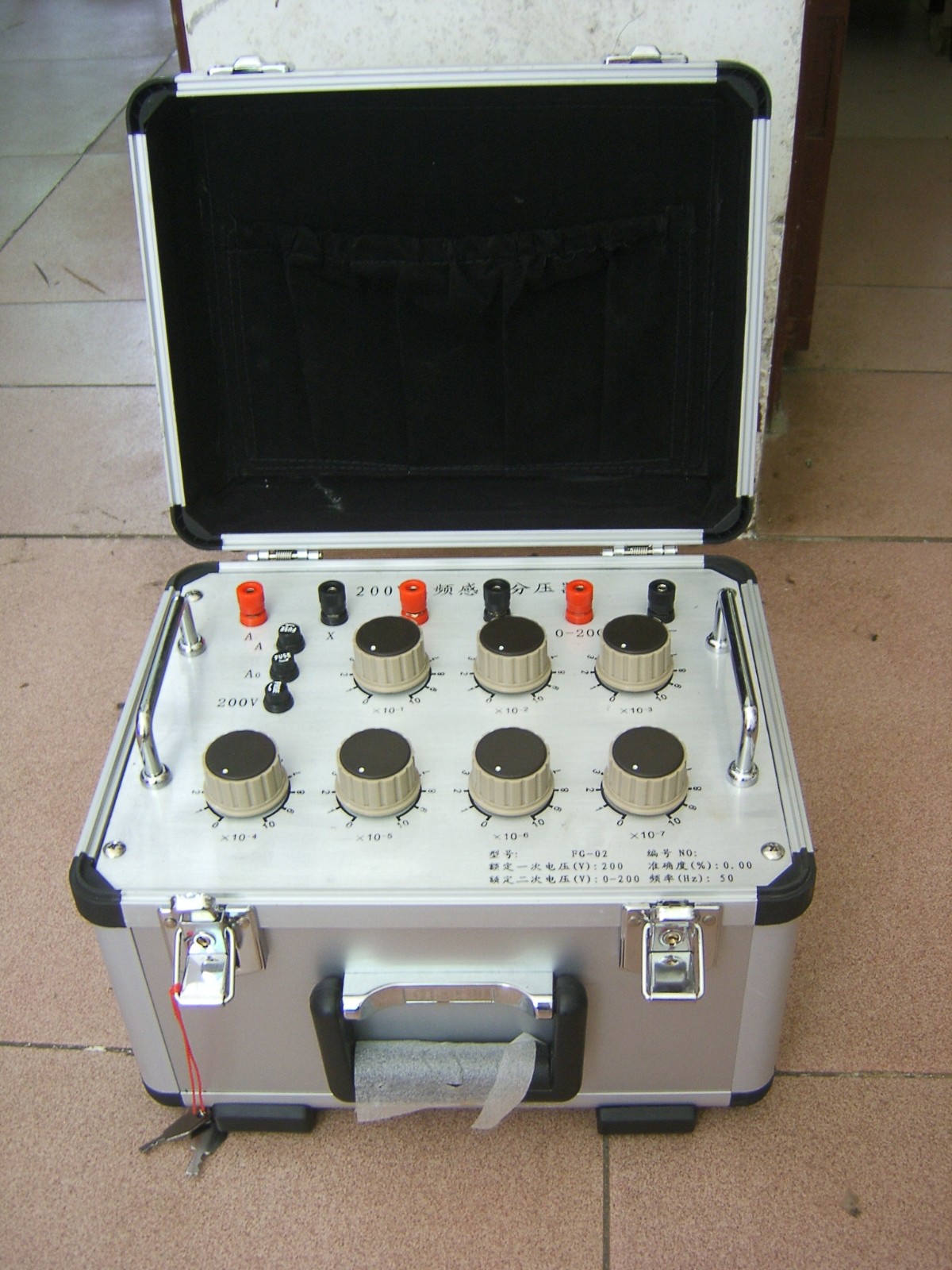

Industrial Frequency Inductive Potential Divider

I. Overview   Please provide the Chinese content to be translated.

200VThe frequency self-coupled transformer potential divider utilizes a self-coupled two-stage voltage ratio meter cascading working mode, switching through a switch.,The device can generate any voltage ratio value. It boasts the advantages of accurate, stable voltage ratio and universal ratio capability. This equipment is widely applicable in various measuring circuits and devices.

Section II: Technical Specifications

1.Environmental Conditions

Translation: Wen    No Chinese content provided. Please provide the text to be translated.      20±5℃

Relative Humidity     ＜80%

Elevation     ＜1000m

Dry    Disturb      No strong electromagnetic field interference sources and vibrations

2.Power Conditions

Frequency    Rate    50±0.5Hz

Input Voltage Distortion Coefficient   ＜5%

3.Performance Metrics

Rated Voltage      200V

Rated Secondary Voltage      0～200V

Rated Load      0VA

Accuracy Level     0.002No Chinese content provided.

Please provide the Chinese content to be translated.  Quantity      11Kg

III. Working Principle

The equipment is designed with a highly accurate two-stage voltage ratio method, utilizing auto-transformer working mode. The schematic diagram of the induction voltage divider is shown on the next page. As depicted in the diagram, the multi-disc induction voltage divider is composed of multiple two-stage voltage ratio standard stages cascaded together, with the previous stage's proportioning winding...1/10Duan connects a segment of voltage in parallel to both ends of the next-stage proportional winding using a double-blade switch, forcing the next winding to be connected to the previous one.1/10Voltage. Due to the magnetizing winding, the next disk has a significant shunting effect on the previous disk..Compact and eliminating isolation errors, thus achieving higher accuracy.
