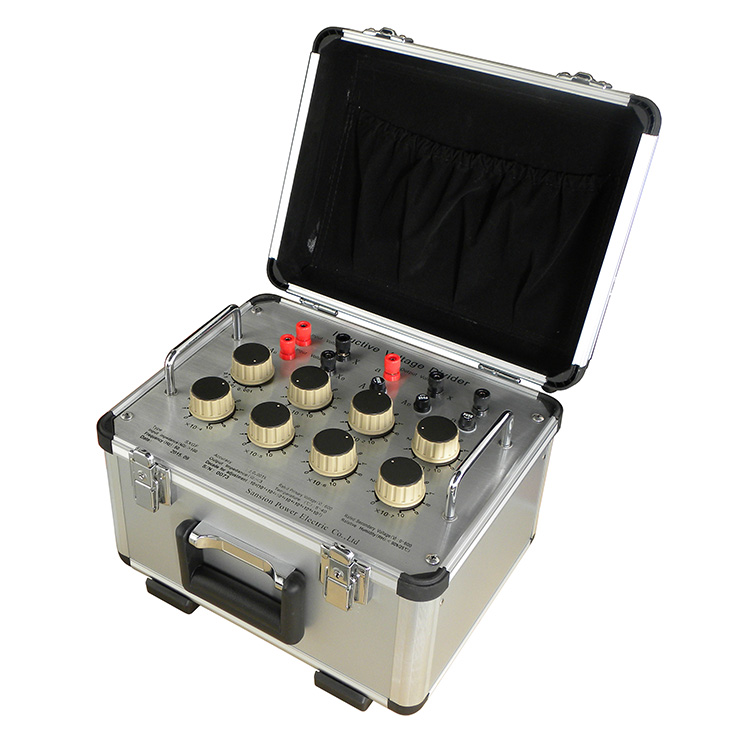

Power Frequency Voltage Divider

I. OverviewStatement

200VThe industrial frequency auto-transformer type potential divider employs a cascading working mode with an auto-transformer dual-stage voltage ratio transformer, achieved through switching.,The device can generate any voltage ratio value with the advantages of accurate, stable voltage ratio and universal ratio. It is widely applicable in various measuring circuits and measuring devices.

Section II: Technical Specifications

1.Environmental Conditions

Please provide the Chinese content to be translated.No Chinese content provided.      20±5℃

Relative Humidity     ＜80%

Altitude     ＜1000m

DryDisturb      No strong electromagnetic field interference sources and vibrations

2.Power Conditions

FrequencyRate        50±0.5Hz

Input Voltage Distortion Factor  ＜5%

3.Performance Metrics

Rated Voltage   200V

Rated secondary voltage   0～200V

Rated Load     0VA

Accuracy Level   0.002No Chinese content provided. Please provide the text to be translated.

No Chinese content provided, please provide the text to be translated.Quantitative      11Kg

III. Working Principle

The equipment is designed with a high-accuracy two-stage voltage ratio method, utilizing autotransformer operation. The schematic diagram of the inductive voltage divider is shown on the following page. As seen in the diagram, the multi-disc inductive voltage divider is composed of multiple two-stage voltage ratio standard cascades, with the previous stage's proportional winding...1/10Duan has connected a section of voltage in parallel to both ends of the next stage's proportional winding using a double-blade switch, forcing the next disk to be powered by the previous one.1/10Voltage. Due to the presence of the excitation winding, the next coil has a significant shunting effect on the previous one..Compact and eliminating isolation errors, thus achieving higher accuracy.
