1. Summary

This product utilizes advanced microelectronics processing technology, allowing for pre-configuration of the entire operation process. It features a full Chinese interface and is easy to operate. Once all test items are set up, the product automatically performs testing without any human intervention.

This product boasts features such as intelligence, integration, miniaturization, ease of use, superior performance, safety, reliability, aesthetically pleasing design, durability, and portability. It is an essential equipment for power companies, technical supervision departments, large factories, metallurgical industries, power plants, and railways that require transformer frequency withstand testing.

2. Primary Functions and Technical Specifications

2.1 Main Features

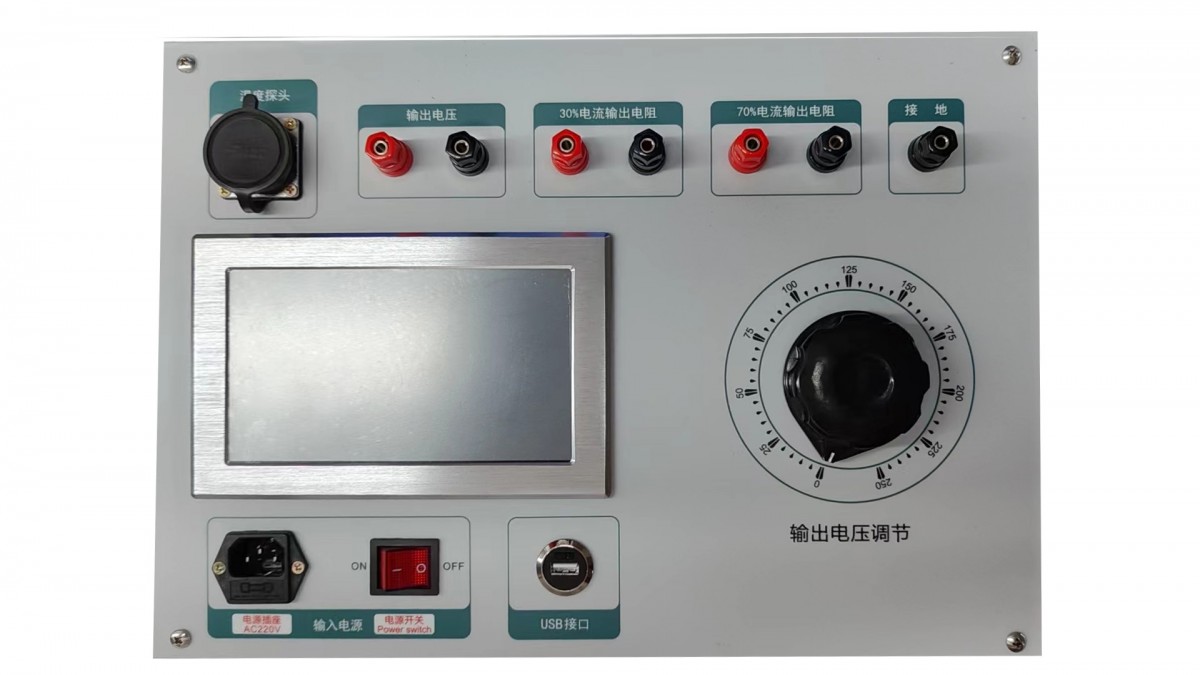

1）、Voltage, current, time, status information, and prompt messages, etc.7-inch large-screen LCD display, offering clear and intuitive readings.

2）、The full Chinese interface is easy to operate and clear, adaptable to various application scenarios.

3）、TouchscreenOperation, all features are accessibleTouchscreenEstablished, enhancing product safety and reliability.

4）、All-digital calibration method, discarding the outdated potentiometer adjustments, offers extreme ease of use on-site and precision that's easy to control.

5）、Directly set the transformer ratio on the touch screen, offering flexibility in connecting different voltage level testers, truly enabling a single control console to be paired with multiple transformers.

6）、Status reminder feature with full Chinese guided operation, allowing for proficient operation even without a manual.

12）、Manual timing function: When manually controlled, the timer can be manually started. Upon reaching the pressure resistance time, the device automatically returns to zero.

13）、Manual Control Mode, a mode similar to traditional electric lifting/Pressure reduction methods: up/down controlled by buttons; the device automatically detects upper/lower limit positions; with overvoltage protection.

14）、The boost-up speed can be set; default1KV/S；

15）、Utilizing a combination of hardware and software anti-interference technology, the performance is stable and highly resistant to interference.

2.2 Technical Specifications

a) Output Voltage: 0-250V

C)Voltage Measurement Accuracy:0.5% FS ±2%

b) Current Measurement Accuracy:0.5% FS ±2%

c) Set MethodTouchscreenDigital Setting，Setpoint Power OutageYong. LongMaintain

d) Duration:0 to 9999 S (Special mode for extended working hours)

e) Power Voltage: AC220V ±10%；50Hz±2 Hz

f) Application Environment: Environmental Temperature0 to 50°C, Relative Humidity ≤ 85%RH
