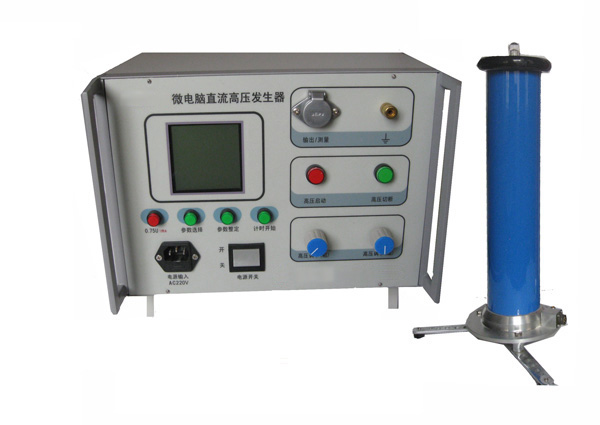

High-Voltage Direct Current Generator

1. Rated Voltage:60KV—300KV

2. Rated Current:2mA—5mA

3. Our product offers a smaller size, lighter weight, enhanced aesthetics, greater reliability, easy operation, and comprehensive features, making it ideal for use in the field.

4. Utilizing cutting-edge technology and manufacturing processes, we lead the industry by adopting the new PWM medium-frequency pulse width modulation technology and pulse train logic array modulation. We also employ high-power IGBT devices and voltage large feedback, resulting in a higher stability of the output high voltage and a smaller ripple coefficient.

5. The main components of the instrument are selected from advanced technology components imported from countries like the U.S., Germany, and Japan, ensuring durability and resistance to continuous direct earth短路 discharge.

6. High precision and accurate measurement. Voltage and current meters are both digital displays, with voltage resolution of 0.1kV and current resolution of 1uA. The voltage meter on the control box directly shows the voltage value applied to the load sample, eliminating the need for an external voltage divider and featuring simple wiring. The instrument measures leakage current at both high and low voltage ends, with the high voltage end using a round shielded digital meter for display, which is resistant to discharge surges and has excellent anti-interference performance, making it suitable for on-site use.

The voltage regulation boasts high stability, achieving smooth voltage adjustment over the full range. The output voltage regulation is accomplished using an imported single multi-turn potentiometer, ensuring a stable boosting process with high adjustment precision.

8. NegativeExtreme.A variety of protective functions including surge protection, zero start, continuous adjustable, overvoltage, overcurrent, zero return, grounding protection, and unique wire break protection. The automatic protection circuit is robust, offering comprehensive and reliable protection, ensuring safe operation, with all technical specifications exceeding industry standards.

9. Added the high-precision 75%VDC-1mA function, which brings convenience to the measurement of zinc oxide lightning arresters.Extreme.Great convenience. Just a simple press without any calculation. The control box of this instrument features...75% voltage function key: During lightning arrester testing, press the 0.75UDC--1mA button when the current reaches 1000uA. The voltage and current readings displayed at this moment are the 75% data. After completion, immediately return the voltage adjustment potentiometer to the zero position, and promptly press the green button to disconnect the high voltage and turn off the power switch. Proceed with other tests.

10. The convenient overvoltage setting function utilizes a digital rotary switch, allowing for intuitive display of the set voltage values, making your operation more flexible. The unit of displayed values is kV.

The 10-1 times pressure cylinder is developed and produced using American technology. The medium-frequency transformer has been specially designed by relevant experts, featuring a small size, large capacity, strong overload capacity, and ease of on-site operation and testing.

10-2: Equipped with three concealed support feet at the bottom, it enhances the stability of the pressure cylinder (suitable for 200KV).

The top cover of the control box can serve as a windproof base, which can be connected to the boost cylinder, enhancing the stability of the boost cylinder.
