High-voltage Direct Current Power Supply

1. Rated Voltage:60KV—300KV

2. Rated Current:2mA—5mA

3. Our product offers a smaller size, lighter weight, enhanced aesthetics, improved reliability, easy operation, and comprehensive features, making it ideal for use in the field.

4. Employing cutting-edge technology and manufacturing processes, we lead the industry by utilizing the new PWM medium-frequency pulse width modulation technology and pulse train logic array modulation. By incorporating high-power IGBT devices and voltage large feedback, we achieve higher output high-voltage stability and a smaller ripple coefficient.

5. The main components of the instrument are all selected from advanced technological components imported from countries like the U.S., Germany, and Japan, ensuring durability and resistance to continuous direct earth短路discharge.

6. High precision and accurate measurement. Both voltage and current meters feature digital displays, with voltage resolution of 0.1kV and current resolution of 1uA. The control box's voltage meter directly shows the voltage value applied to the load sample, eliminating the need for an external voltage divider. The wiring is straightforward. The instrument is capable of measuring leakage current at both high and low voltage ends. The high voltage end uses a round shielded digital meter for display, which is resistant to discharge shocks and has excellent anti-interference performance, making it suitable for on-site use.

The voltage regulation stability is high, with smooth voltage adjustment over the full range. The output voltage regulation utilizes an imported single multi-turn potentiometer, ensuring a stable boosting process and high adjustment accuracy.

8. NegativeExtreme.Various protection functions including surge, zero start, continuous adjustable, overvoltage, overcurrent, zero return, grounding protection, and unique wire break protection. The automatic protection circuit is robust and comprehensive, ensuring reliability and safety in operation, with all technical specifications exceeding industry standards.

9. Added the high-precision 75%VDC-1mA function for zinc oxide lightning arrester measurements.Extreme.Great convenience. Just a simple press, no calculations needed. The control box of this instrument features...75% voltage function key: During the surge arrester test, press the 0.75UDC-1mA button when the current reaches 1000uA. The voltage and current readings displayed at this moment are the 75% data. After completion, immediately return the voltage adjustment potentiometer to zero and press the green button to disconnect the high voltage and turn off the power switch. Proceed with other tests.

10. The convenient overvoltage setting function uses a digital rotary switch, allowing for intuitive display of the set voltage value, making your operation more flexible. The display unit is in kV.

The 10-1 pressure cylinder is developed and produced using U.S. technology. The medium-frequency transformer is specially designed by relevant experts, featuring a small size, large capacity, strong overload capacity, and ease of on-site operation and testing.

10-2: Equipped with three concealed support feet at the bottom, the tripling cylinder's stability is enhanced. (Suitable for 200KV)

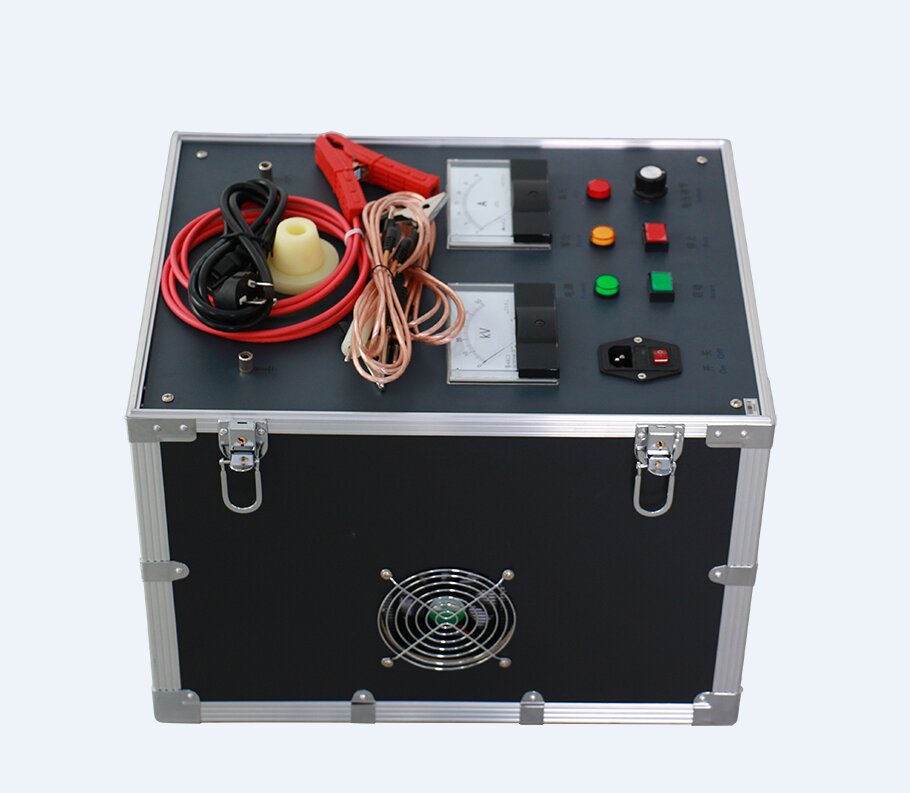

The control box's top cover can serve as a windproof base, which can be connected to the boost cylinder, enhancing the stability of the cylinder.
