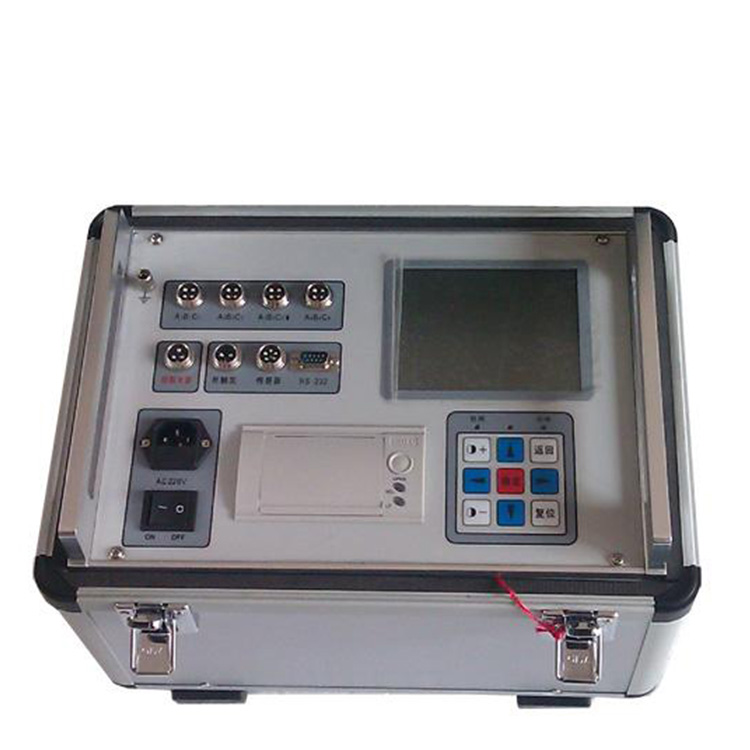

High-Pressure Switch Mechanical Dynamic Characteristic Tester

Product Performance

Date:固有 opening and closing times of 12 circuit breakers, same phase and phase-to-phase synchronization.

Reclosing: Closing and opening at each tap (golden short time), opening and closing (no current interval), opening-closing-opening.

Bounce: Closing bounce time per circuit, bounce count, bounce process, bounce waveform.

Speed: Split and close speed, high speed, time-distance characteristic curve.

Itinerary: Total Distance, Open Distance, Overrun Distance, Overshoot Distance, and Rebound Amplitude.

Electrical Current: Separation and closure current values of the separation and closure coils, current waveform diagrams.

Action Voltage: The in-built DC 30～250V/20A (instantaneous operation) adjustable circuit breaker with an action voltage source automatically completes the low-voltage action test of the circuit breaker, measuring the action voltage value of the circuit breaker.

Product Features

SF6 switches, GIS integrated switchgear, vacuum switches, and oil switches for all models suitable for domestic and international production.

Universal speed sensors, linear travel sensors, and rotary sensors, featuring extremely easy and straightforward installation.

High-definition main screen, transparent, backlit LCD, contrast electronically adjustable. Full Chinese menu prompts for operation; one switch action displays all data and waveform charts.

The main unit can store multiple on-site open and close circuit test results, with an internal real-time clock for convenient archiving and saving of test dates and times.

Built-in rapid mini printer, printing all data and graphs.

The instrument is equipped with the "Circuit Breaker Data Analysis Management Software" for PC connectivity, allowing test results to be directly saved to the hard drive or printed out on various printers for test reports.

The instrument boasts powerful data analysis capabilities, effectively analyzing various indicator parameters of the circuit breaker's mechanical characteristics.

The instrument is equipped with a customizable speed addition program, allowing users to freely add various opening and closing speed definitions as needed.

Optional high-precision distance and speed laser sensor available.
