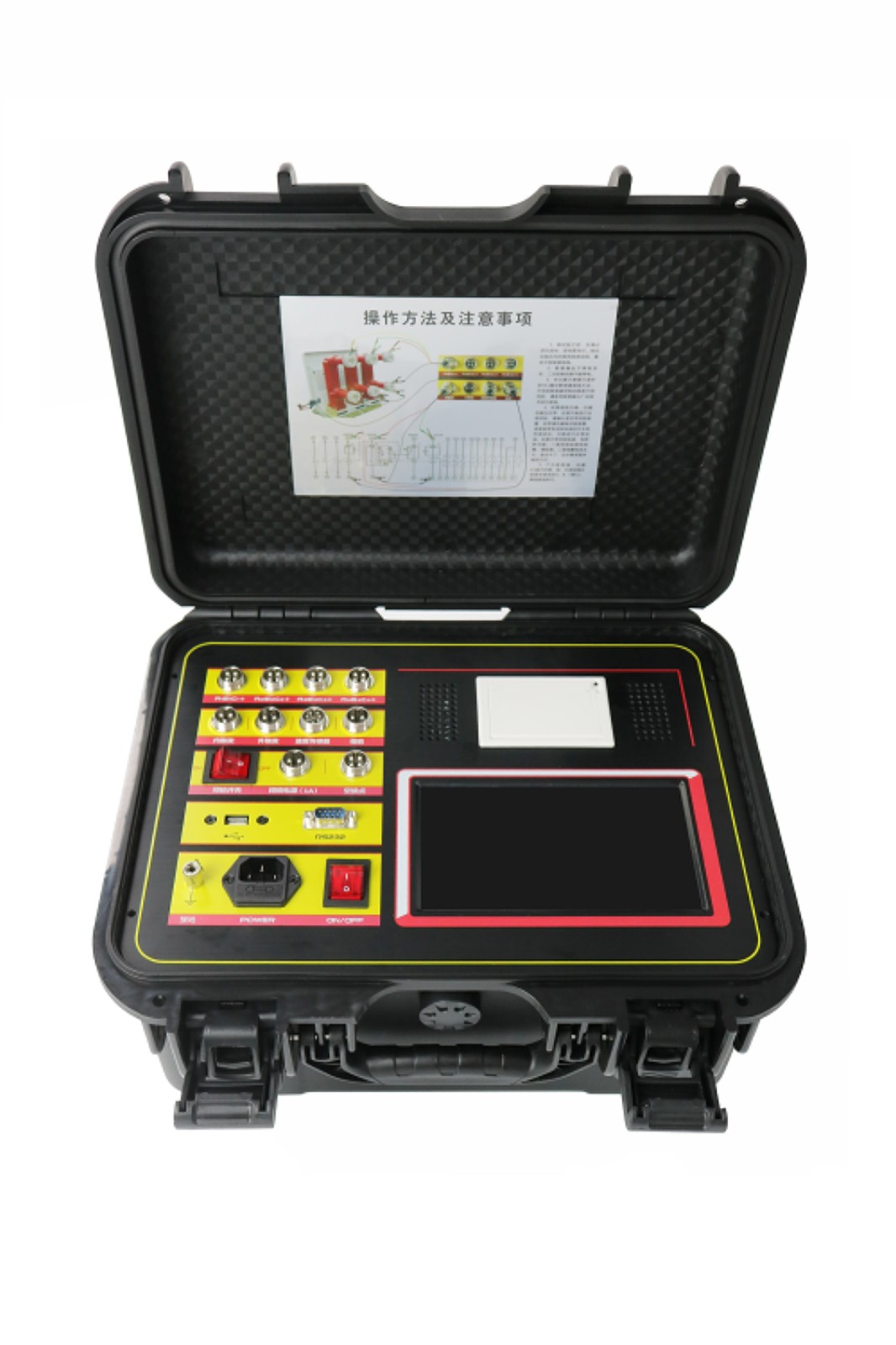

High-Voltage Switching Action Tester

I. Product Technical Specifications

1. Usage Environment

Input voltage: 220V±10% 50Hz±10% Atmospheric pressure: 86～106kpa

Temperature: -10～40℃; Humidity: ≦80%RH

2. Safety Performance

Insulation Resistance > 2MΩ

Dielectric strength: The power supply can withstand 5KV working frequency voltage on the casing for one minute without any arcing or flashover.

3. Basic Parameters

Date: Range 4000.0ms, Resolution 0.1ms

Error ① within 100ms; 0.1ms ± 1 character

② 100ms and above  0.1% ± 1 character

③ Concurrently ±0.1ms

Speed: Range 20.00 m/s; Resolution 0.01 m/s

Error ① within ±0.2 m/s ±0.1 m/s ±1 character

② Over 100ms  ±0.2m/s ±1 character

Range Resolution Error

Vacuum Circuit Breaker - 50.0mm ±0.1mm

1% ± 1 character

SF6 Circuit Breaker - 300.0mm ±1.0mm

Low Oil Breaker 600.0mm

Current: Range 20.00A; Resolution 0.01A

Output Power: DC 30-250V digital adjustable / 20A (instantaneous operation)

Dimensions: 360mm (L) x 280mm (W) x 300mm (H)

Weight: 9 kg

II. Performance Features

Performance

Date:固有 opening and closing times of 6 breakers, same-phase and inter-phase同期.

Reversing Switch: The time for each opening-closing, closing-opening, closing-opening-closing process: one-time opening, one-time closing, two-time closing, golden short time, and no current time values.

Bounce: The closing bounce time, bounce count, bounce process, and bounce waveform for each circuit break; the rebound amplitude for each circuit break opening.

Speed: Initial separation and retraction speed, high speed, time-travel characteristic curve.

Trip Details: Total Distance, Starting Distance, Excess Distance, Overshoot Distance, Rebound Amplitude.

Electrical Current: Break and close coil current values, current waveform diagrams.

Action Voltage: The unit provides a DC 30～250V/20A digital adjustable circuit breaker with an action power supply, automatically completing the low-voltage action test of the circuit breaker and measuring the action voltage value.

2. Features

Mechanical characteristic tests for all models of SF6 switches, GIS integrated switchgear, vacuum switches, and oil switches, applicable to both domestic and international production.

Exceptional anti-interference capability, allowing for easy testing and precise measurement even when the 500KV substation bypass bus is live.

Universal speed sensors, linear sensors, rotary sensors, extremely easy and straightforward to install.

A single switch operation yields all data and corresponding waveform diagrams for the switch mechanical characteristic test.

The main unit can store on-site test data, featuring an internal real-time clock for easy archiving and saving test dates and times.

The main screen features a large display, wide temperature range, direct perspective, backlit LCD, and full Chinese display of all data and graphs. The LCD contrast is electronically adjustable, and it retains memory after power off.

User-friendly Chinese menu operation. The instrument features an integrated printer, allowing for quick and convenient printing of all data and graphs at any time.

The instrument is equipped with data analysis management software, which can be connected to a PC for operation. Test results can be output to various dot-matrix, laser, or inkjet printers to print test reports, thereby computerizing field tests.
