High-voltage Insulation and Voltage-withstanding Equipment

No content provided for translation.. Summary

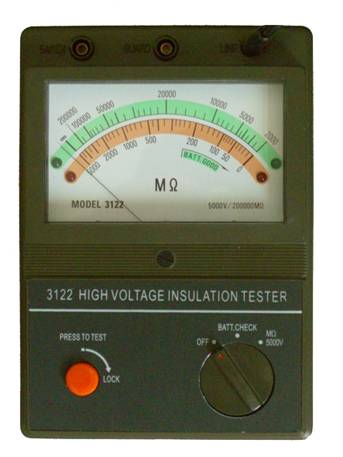

Insulation Resistance Testers, also known as Megohmmeters, High Voltage Megohmmeters, and High Voltage Insulation Resistance Testers, are specifically designed for laboratory or on-site insulation testing. This instrument features LCD Large screen grayscale backlit display, data storage, and data retrieval features. Additionally, it has automatic calculation of absorption ratio and polarization index, with automatic storage.15Second30Second1Minutes10Minute Data. High resolution, easy to operate, portable, accurate, reliable, and with stable performance, it has strong anti-interference capabilities. Moreover, it features shockproof, dustproof, and moisture-proof structures, making it an indispensable instrument commonly used in telecommunication, power, meteorology, data centers, oil fields, mechanical and electrical installation and maintenance, as well as industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the insulation resistance of various insulating materials, as well as transformers, motors, cables, and electrical equipment. The digital insulation resistance meter is composed of medium and large-scale integrated circuits, containing a high-precision microcurrent measurement system, a digital step-up system, and an automatic discharge circuit. Measurement can be performed by simply connecting the measured object with one high-voltage line and one signal line. Measurement is automatic, with results displayed on a large screen and stored for later use. The rated output test voltage range250V～2500VInsulation Resistance Measurement Range0.01MΩ～2.5TDirect Current Voltage Measurement Range0V～1000V DCNo Chinese content provided.0V～750V AC。

Two. Model Variations

Type No content provided. Short-circuit Current

S410 ≥5mA

S410A ≥3.5mA

S410B ≥1.5mA

S410C ≥10mA
