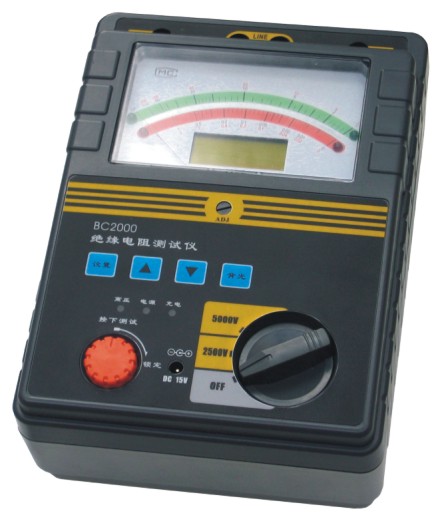

High-voltage Insulation Resistance Tester

No Chinese content provided.. Company News Brief

Insulation Resistance Meters, also known as Megohmmeters, High Voltage Megohmmeters, and High Voltage Insulation Resistance Testers, are specifically designed for laboratory or on-site insulation testing. This instrument features... LCD Large-screen gray and white backlit display, data storage, and data retrieval features. Additionally, it has automatic calculation of absorption ratio and polarization index, with automatic storage.15Second30Second.1Minutes10High-resolution, user-friendly, portable, and accurate with reliable performance and strong anti-interference capabilities, our digital insulation resistance meter is an indispensable instrument commonly used in the telecommunication, electricity, meteorology, data center, oil field, mechanical and electrical installation and maintenance, and industrial sectors that utilize electricity as industrial power or energy source. It is suitable for measuring the insulation resistance of various insulating materials as well as transformers, motors, cables, and electrical equipment. Composed of medium and large-scale integrated circuits, it incorporates a high-precision microcurrent measurement system, a digital step-up system, and an automatic discharge circuit. Measurement can be conducted by simply connecting one high-voltage wire and one signal wire to the object. Measurement is automatic, and results are displayed on a large screen with storage capabilities. The rated output test voltage range250V～2500VInsulation Resistance Measurement Range0.01MΩ～2.5TDirect Current Voltage Measurement Range0V～1000V DC交流电压 measurement range0V～750V AC。

No Chinese content provided.. Model Variations

Type No content provided. Short Circuit Current

S410 ≥5mA

S410A ≥3.5mA

S410B ≥1.5mA

S410C ≥10mA
