One,Overview

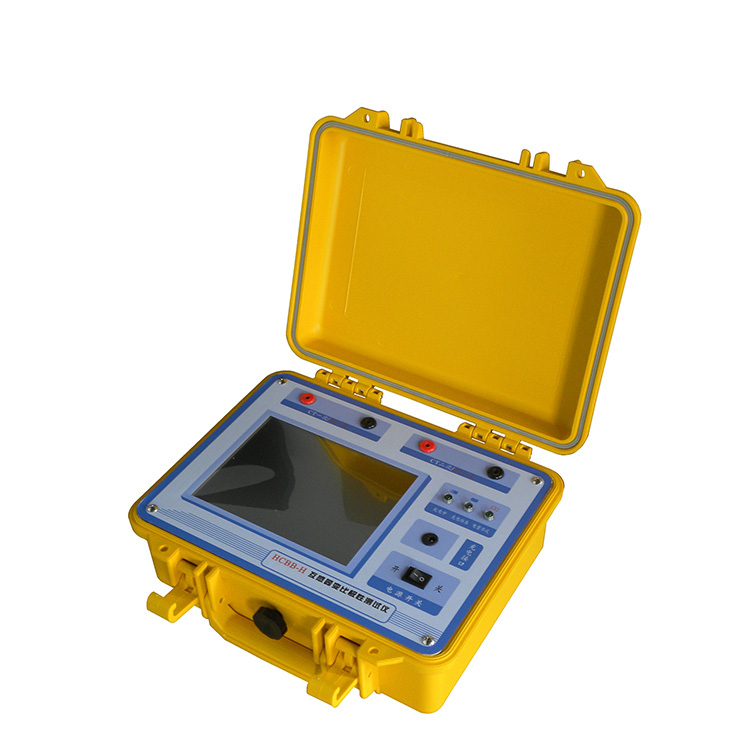

This tester is specifically designed for testing the ratio and polarity of current transformers, featuring an integrated high current generator, primary and secondary digital current meters, and polarity discrimination circuit. The product design is rational, and the operation is simple.

TwoTechnical Indicators

1Output Current:0～1000APower:6kVA。

2One Current Meter Measurement:0～1000AResolutions: 0.1A，

                 Error:± (reading)0.5%+2No Chinese content provided.

3Two-Current Transformer Measurement:0～5ANo Chinese content provided.: 1mA，

                 Error:± (reading)0.5%+2No Chinese content provided.

4Power Voltage:AC220V±10%。

5Office Environment: Temperature0～+40°C

                 Humidity Less Than85%No condensation

6Dimensions:385mm*310mm*330mm

7Instrument Weight:40kg
