High-Voltage Bridge Cable Fault Tester

Introduction to Digital High Voltage Bridge Cable Fault Tester

  GDZ-15The intelligent electrical bridge for cable fault location is based onMURRAYBridge-type principle designed, with a switch-mode power supply to form a high-voltage constant current source, no-load voltage15000VShort-circuit Current5mAUsed for locating the breakdown points and non-breakdown defects of various wires and cables after laying.

  GDZ-15The intelligent electrical bridge for cable fault location adopts fully automated testing and can automatically calculate and display the fault distance after the user inputs the full length of the cable. Utilizing a color touch LCD screen as both the display and operation device, it features one-touch operation, completely replacing the traditional high-voltage bridge measurement method. It is easy to use, user-friendly, and offers a clear combination of text and images, ensuring safety and reliability.

  The digital bridge and digital megohmmeter are merged into one, offering enhanced functionality. It can automatically calculate the system's absorption ratio and polarization index, allows manual setting of test time, and has memory function to record insulation conditions at different points.

Compared to the B-Reflect Time-Domain Method,KC-15The Digital High-Voltage Bridge Cable Fault Tester is particularly suitable for:

1The high breakdown voltage of the laid cables, particularly the linear high breakdown voltage that is difficult to achieve low resistance, such as the linear high breakdown voltage of the cable intermediate joints (mainly caused by insufficient cable joint manufacturing techniques. Under high voltage application, only leakage arcing occurs without breakdown discharge).

2The high-voltage bridge balancing method has no test blind spots and is used to determine the breakdown points of short cables and those near the ends of cables.

3High-voltage bridge method only requires the uniformity of the resistance of the cable phase conductors for measurement. However, cables with poor traveling wave transmission characteristics, such as those with high dielectric losses,PVCLow-voltage cables

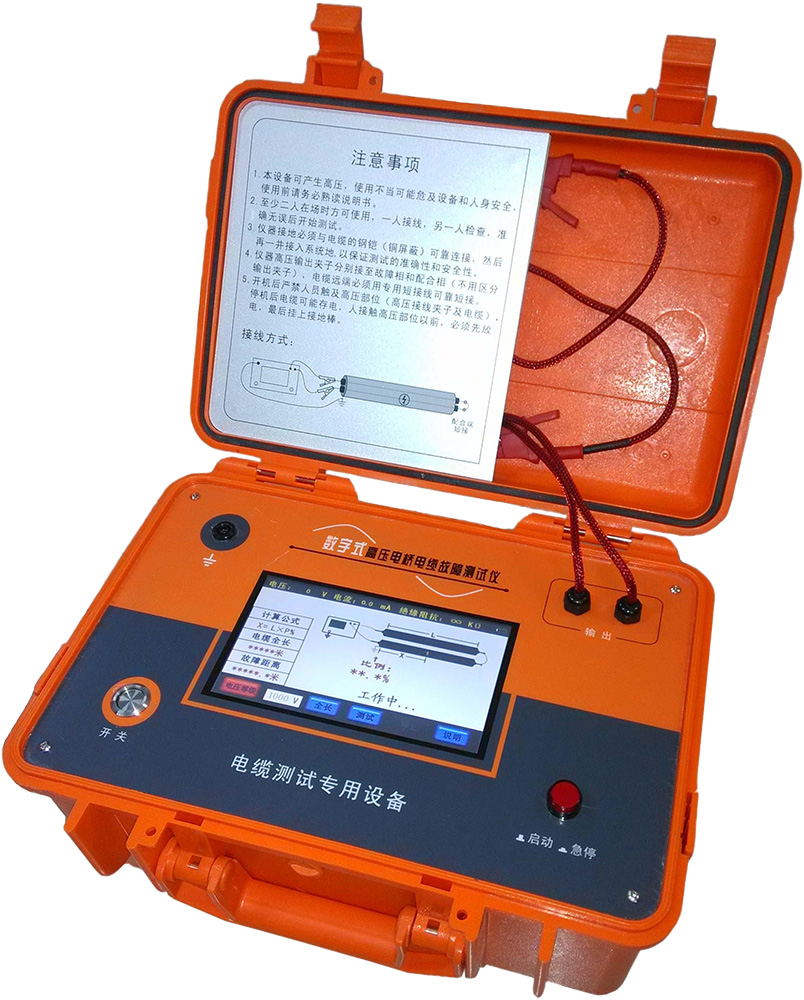

KC-15Digital High-Voltage Bridge Cable Fault Tester

Product Features

1Operation made even simpler.

One-touch operation: automatic zeroing, automatic distance measurement, and one-touch test results. Fewer buttons, easy to operate, and overcomes human error.

Automated Testing: High intelligence level, automatically completes location, and automatically calculates fault distance based on the test ratio.

Wide insulation testing range: unaffected by low currents, insulation resistance can reach150MΩ。

2Advanced technology

Powerful Functionality: Integrates digital bridge and digital megohmmeter functions, automatically calculates absorption ratio and polarization index.

Wireless Isolation Technology: Secure and Reliable Communication Operations

Digital Positioning Technology: Full software control, automatic positioning completion, LCD intuitive display.

Test Emergency Stop Technology: Directly press the emergency stop button in an emergency, the instrument will immediately automatically reduce pressure to ensure safety.

Automatic Pressure Regulation Technology: One-touch operation for automatic pressure regulation and zeroing, intelligent testing.

3High anti-interference performance:

This technology can prevent the interference from other operating cables that may hinder the measurement of test cables, ensuring uninterrupted testing.

4Advanced operational display unit

Color Touch LCD Display: Utilizes a color touch LCD screen for a more intuitive and user-friendly experience.

Touchscreen Keypad Operation: The touch keypad completely replaces buttons, offering a more advanced and convenient experience.

KC-15Digital High-Voltage Bridge Cable Fault Tester Interface Display

Technical Indicators

Digital Bridge:

Test Voltage:0V Please provide the Chinese content that needs to be translated.15000 V

Voltage Level:1KV、2 KV、5KV、8KV、10KV、12KV、15KVCustomized

Short-circuit Current:5 mA

Test Resolution:0.1%

Test Scope:< 20 km

Operating Voltage:AC 220V±10% 50Hz

Testing Method: One-Touch Touchscreen Testing Operation

Display Format:800×480（77-inch Color Touch LCD Screen

Interference Resistance: >100VAC

Dimensions:465 mm×330 mm×260 mm

Weight:≤11.2 kg

Digital Megohmmeter

Testing Method Touchscreen one-touch testing operation

Voltage Grade ：500V、1000V、2500V、5000V、1000V、15000V

Short-circuit Current ：5 mA

Resolution ：0.1MΩ

Insulation Test High Value:0.1 MΩ--300 MΩ

Insulation Value Memory: Automatic Testing with Extreme Polarization Index Absorption Ratio

The intelligent electrical bridge for cable fault location offers adjustable technical specifications and can be customized according to customer requirements.
