High-voltage Cable Tester

Product Introduction

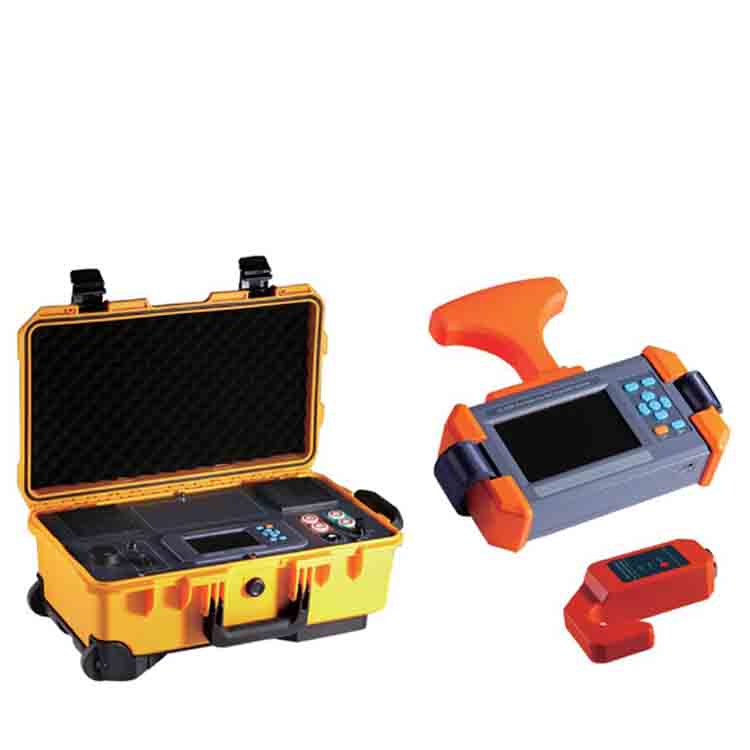

EDDQ-15Digital High-Voltage Bridge Cable Fault TesterBased onMURRAYBridge-tapped principle, utilizing a switch-mode power supply to form a high-voltage constant current source, no-load voltage15000VCircuit short-circuit current5mAUsed for locating the breakdown points of various cables and the defect points without breakdown after laying.

EDDQ-15Digital High-Voltage Bridge Cable Fault TesterImplementing full automation testing, the system can automatically calculate and display the fault distance after the user inputs the full length of the cable. Utilizing a color touch LCD screen as both the display and operational device, one-touch operation completely replaces the traditional high-voltage bridge measurement method, offering ease of use, user-friendly interface, and a combination of text and graphics for safety and reliability.

Integrating the digital bridge and digital megohmmeter, this device offers enhanced functionality, capable of automatically calculating the system's absorption ratio and polarization index. It allows manual setting of test time and features memory capabilities to record insulation conditions at different points.

Compared to the B-Reflect Time-Domain Method,EDDQ-15Digital High-Voltage Bridge Cable Fault TesterEspecially suitable for:

1High dielectric breakdown points of cables after installation, particularly challenging to achieve low resistance linear high dielectric breakdown points, such as the linear high dielectric breakdown of cable intermediate joints (this is mainly due to inadequate cable joint manufacturing processes. Under high voltage application, only leakage corona occurs without breakdown discharge).

2The high-voltage bridge balance method has no test blind spot, used for determining the breakdown points of short cables and near the cable ends.

3The high-voltage bridge method requires only the uniformity of the cable phase wire resistance for measurement. However, for cables with poor traveling wave transmission characteristics, such as those with significant dielectric losses,PVCLow-voltage cables

Product Features

1Easier to operate

One-touch operation: automatic zeroing, automatic distance measurement, and one-button test result output. Fewer buttons, easy to operate, and overcomes human error.

Automated Testing: High intelligence level, automatically completes location, and calculates fault distance based on the test ratio.

Wide Insulation Range Test: Not affected by small currents, insulation resistance test value can reach150MΩ。

2Advanced technology

Powerful Functionality: Integrates digital bridge and digital megohmmeter functions, automatically calculates absorption ratio and polarization index.

Wireless Isolation Technology: Secure and Reliable Communication Operations

Digital Positioning Technology: Full software control, automatic positioning completion, intuitive LCD display.

Test Emergency Stop Technology: Directly press the emergency stop button in an emergency, the instrument will immediately automatically reduce voltage, ensuring safety.

Automatic Pressure Regulation Technology: One-touch operation for automatic pressure regulation and zeroing, intelligent testing.

3High anti-interference performance:

The technology can avoid the phenomenon of test cables being unable to measure due to interference signals from other operating cables, ensuring that the testing is no longer affected.

4Advanced Operation Display Unit

Color Touch LCD Display: Utilizes a color touch LCD screen for a more intuitive and user-friendly experience.

Touchscreen Keypad Operation: The touch keypad completely replaces buttons, offering a more advanced and convenient experience.
