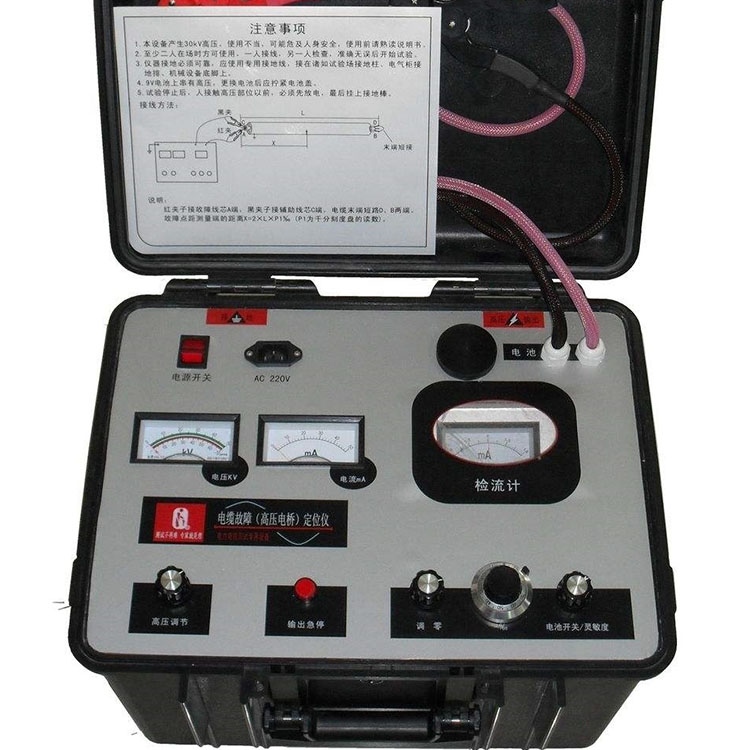

High-voltage Cable Fault Tester

Product Introduction

EDDQ-15Digital High-Voltage Bridge Cable Fault TesterBased onMURRAYThe design is based on the bridge principle, utilizing a switch-mode power supply to form a high-voltage constant current source, with an unloaded voltage.15000VShort-circuit Current5mAUsed for locating the breakdown points and defect points without breakdown in various cables after laying.

EDDQ-15Digital High-Voltage Bridge Cable Fault TesterThe company has adopted full automation for testing and can automatically calculate and display the fault distance after the user inputs the full length of the cable. Utilizing a color touch LCD screen as both the display and operational device, the one-touch operation completely replaces the traditional high-voltage bridge measurement method. It is easy to use, features a user-friendly interface, combines text and graphics, and is safe and reliable.

The digital bridge and digital megohmmeter are combined into one, offering enhanced functionality. It can automatically calculate the system's absorption ratio and polarization index, allows manual setting of test time, and features memory function to record insulation conditions at different points.

In comparison to the wave reflection time-domain method,EDDQ-15Digital High-Voltage Bridge Cable Fault TesterEspecially suitable for:

1Post-laid cable with high dielectric breakdown points, particularly those difficult to achieve low resistance, such as the linear high dielectric breakdown of cable intermediate joints (mainly due to inadequate cable joint manufacturing processes. Under high voltage application, only leakage and tracking but no breakdown discharge occurs).

2The high-voltage bridge balance method has no testing blind spots and is used to determine the breakdown points of short cables and those near the ends of the cables.

3The high-voltage bridge method only requires the uniformity of the cable phase wire resistance for measurement. However, for cables with poor traveling wave transmission characteristics, such as those with significant dielectric losses,PVCLow-voltage cable

Product Features

1Easier to operate

One-Touch Operation: Automatic zeroing, automatic distance measurement, and one-touch test result output. Fewer buttons, easy operation, and overcomes human error.

Automated Testing: High intelligence level, automatically completes location, and automatically calculates fault distance based on the test ratio.

Wide insulation range testing: Not affected by small currents, insulation resistance can reach150MΩ。

2Our technology is more advanced.

Powerful Functionality: Integrates digital bridge and digital megohmmeter functions, automatically calculates absorption ratio and polarization index.

Wireless Isolation Technology: Secure and Reliable Communication Operations

Digital Positioning Technology: Full software control, automatic positioning completed, with an intuitive LCD display.

Test Emergency Stop Technology: Directly press the emergency stop button in an emergency situation, the instrument will immediately reduce the voltage automatically, ensuring safety.

Automatic Pressure Regulation Technology: One-touch operation for automatic pressure adjustment and zeroing, intelligent testing.

3High anti-interference performance

Our innovative solution can prevent interference from other operational cables, ensuring that cable testing is no longer affected.

4Advanced operational display unit

Color Touch LCD Display: Featuring a color touch LCD screen for enhanced直观 and user-friendly operation.

Touchscreen Key Operation: Fully replacing buttons with touch keys, offering greater advancement and convenience.
