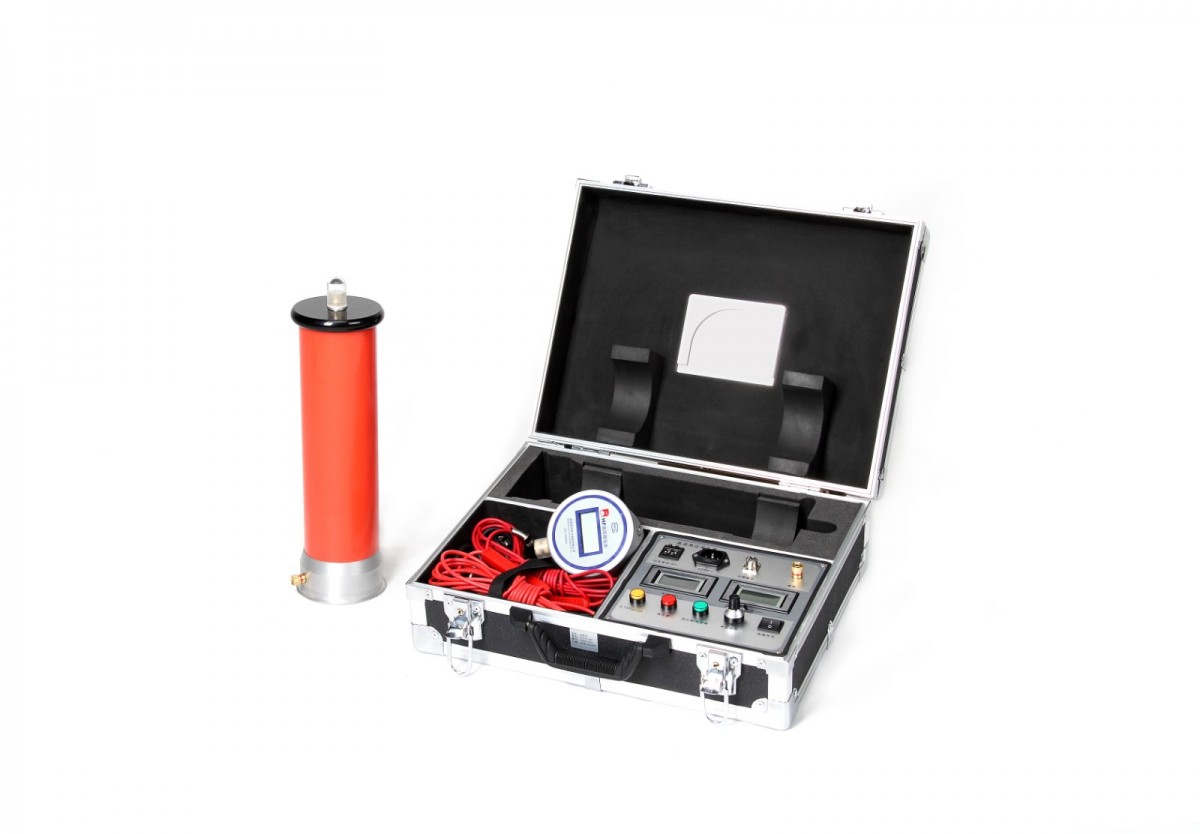

High-frequency DC High-voltage Generator

1.Rated Voltage:60KV—300KV

2.Rated Current:2mA—5mA

3Our product is smaller, lighter, more aesthetically pleasing, and more reliable than similar items, with easy operation and comprehensive features, making it ideal for use in the field.

4.Utilizing state-of-the-art technology and manufacturing processes, we are the first to implement new technology.PWMMedium-frequency pulse width modulation technology, pulse train logic array modulation, utilizing high-powerIGBTComponent and voltage feedback enhance the output high-voltage stability and reduce the ripple coefficient.

5The main components of the instrument are selected from advanced components imported from the US, Germany, Japan, and other countries, ensuring durability and resistance to continuous direct grounding and discharge.

6High precision, accurate measurement. Voltage and current meters are both digital displays, with a voltage resolution of0.1kVCurrent resolution:1uAThe voltage meter on the control box directly displays the voltage applied to the load sample, eliminating the need for an external voltage divider and featuring simple wiring. The instrument measures leakage current at both high and low voltage ends, with the high voltage end using a circular shielded digital meter for display, which is resistant to discharge shocks and has excellent anti-interference performance, making it suitable for on-site use.

7The voltage regulation has a high stability, features smooth voltage adjustment across the full range, and utilizes an imported single multi-turn potentiometer for output voltage regulation, ensuring a stable boosting process with high adjustment accuracy.

8No Chinese content provided for translation.Extreme.A range of protective functions including surge protection, zero-start, continuous adjustment, overvoltage, overcurrent, reset, grounding protection, and unique wire break protection. The automatic protection circuit is robust with comprehensive and reliable protection, ensuring safe operation and all technical specifications exceed industry standards.

9Added high precision75%VDC-1mAThe functionality, for measuring zinc oxide lightning arresters, is introduced.Extreme.Great convenience. Just a simple press without the need for calculation. The control box of this instrument features...75%The voltage function key, during the surge arrester test, as the current rises to1000uAPlease press at the time.0.75UDC--1mAThe button is pressed, at which point the voltage and amperage readings on the voltmeter and ammeter are displayed.75%The data should be recorded, then immediately return the voltage regulator to the zero position, and press the green button to disconnect the high voltage and turn off the power switch. Proceed with other tests.

10Convenient overvoltage setting function with a digital rotary switch, allowing for intuitive display of the set voltage value, making your operation more effortless. The unit of the displayed value iskV。

10-1The multi-pressure cylinder is developed and produced using U.S. technology. The medium-frequency transformer, specially designed by relevant experts, features a compact size, large capacity, strong overload capacity, and is convenient for on-site operation and testing.

10-2The bottom features three concealed support legs, enhancing the stability of the multi-pressure cylinder. (Applicable to)200KV）

10-3The control box lid can serve as a windproof base, which can be connected to the booster cylinder, enhancing its stability.
