High Frequency High Voltage Test Instrument

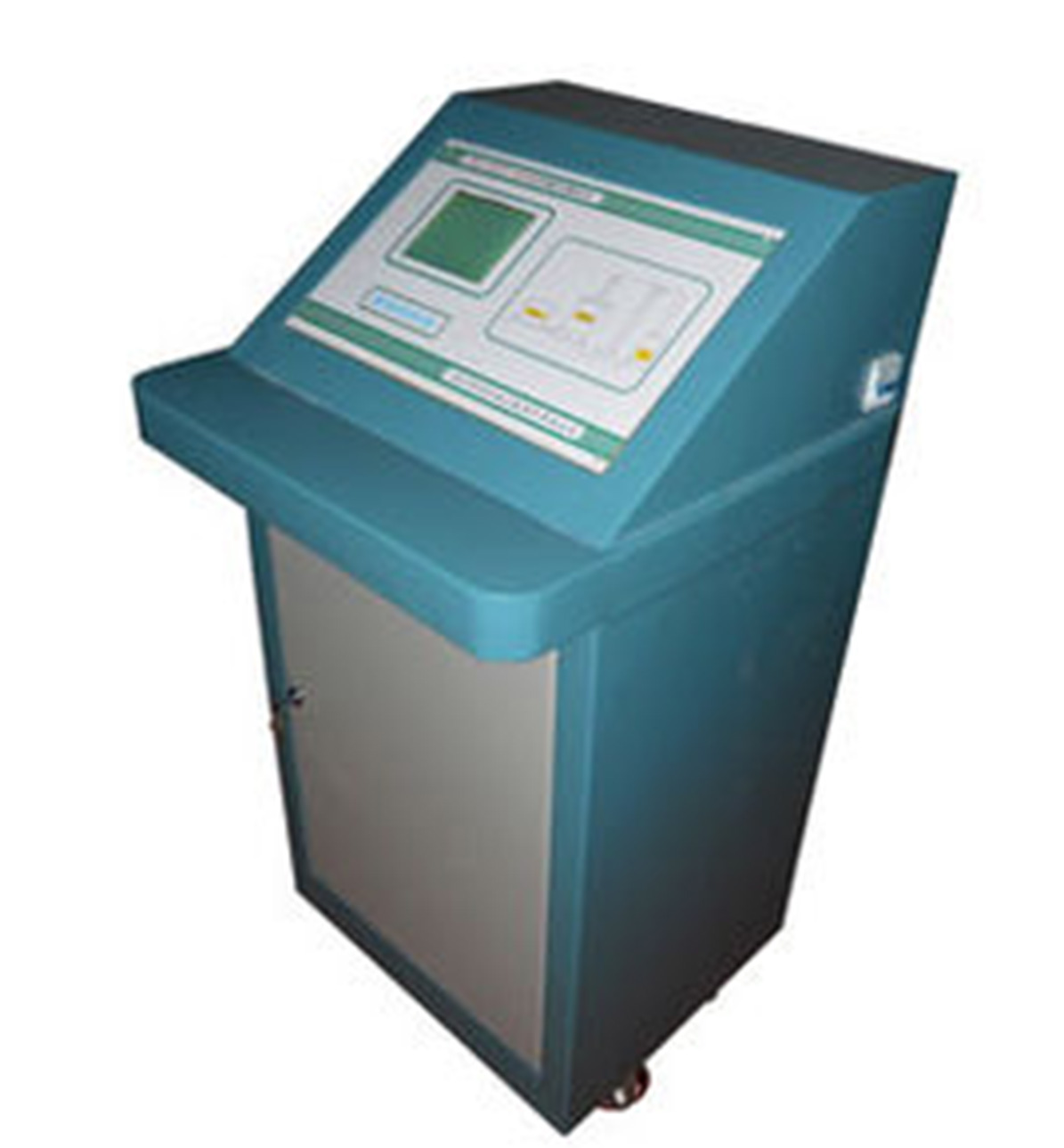

The EDDJ series of power frequency withstand voltage test equipment is divided into two types: "Integrated power frequency withstand voltage test equipment" and "Split power frequency withstand voltage test equipment." This power frequency withstand voltage test equipment can perform AC withstand voltage tests on motors and DC withstand voltage tests.

According toDL/T 596-1996 "Preventive Test Code for Electric Power Equipment" stipulates that in order to meet the testing requirements for high-voltage motors with lower capacitance, engineers at Hubei Electric Power Technology Research and Development have specially developed the EDDJ series generator frequency withstand voltage test devices. These motor withstand voltage devices offer the advantages of small size, light weight, and easy transportation. They are widely used in mines, hydropower stations, and generator manufacturing plants. The BDJ series frequency withstand voltage test devices can be configured to meet the specific requirements of on-site use, including higher voltage ratings and higher capacities. The BDJ series devices typically have an output capacity of 4-50kVA and voltage ratings of 10-50kV, primarily targeting 6kV-10kV high-voltage applications.Electric MotorTesting for withstand voltage of power generation units under 100MW and 6-10kV cross-linked cables; for higher voltage levels and capacities, we can customise them as modular based on technical requirements.

Instrument Alias

Power Frequency Voltage Proof Test Equipment, Motor Induction Voltage Proof Test Equipment, Motor Power Frequency Voltage Proof Test Equipment, Generator AC/DC Voltage Proof Test Equipment, Generator DC Voltage Proof Test Equipment, Generator AC Voltage Proof Test Equipment, Cable Voltage Proof Test Equipment, Integrated Power Frequency Voltage Proof Test Equipment, Split-Type Power Frequency Voltage Proof Test Equipment, Motor Voltage Proof Tester, Generator DC Voltage Proof Test Instrument, Power Frequency Voltage Proof Test Equipment

Instrument Function

1. Integrated industrial frequency withstand voltage test device, easy to carry and move, this industrial frequency withstand voltage test device is particularly suitable for outdoor and indoor mobile operations in large factories and mines.

2. The split-type power frequency withstand voltage test device is lightweight and easy to upgrade in capacity for future expansion as the tested items increase. Additional reactor sections can be added.

Technical Specifications

EDDJ's AC Voltage Proof Test Device parameters should be referred to the product manual or the contract. If you find any inaccuracies in the technical parameter information, please feel free to correct them.
