Product Introduction

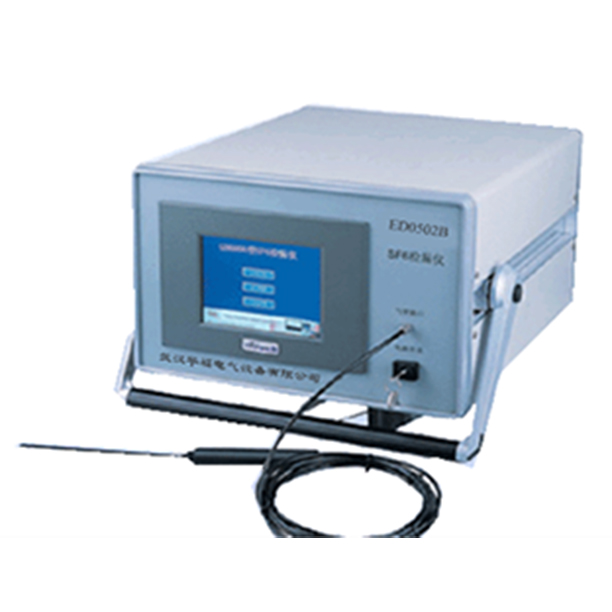

The ED0502B high-precision SF6 leak detector is our company's newly designed product, which operates based on the principle of detecting SF6 gas in the air.Six FluorideSulfurizationAs the gas concentration changes, the degree of ionization of the mixed gas under the influence of a high-frequency electromagnetic field will also vary. The ionization level can be detected to reflect this.Six FluorideSulfur OxidationConcentration.

Key Features

The instrument employs a small vacuum pump and features a separate probe from the main unit. It boasts compact size, lightweight, ease of portability, high sensitivity, excellent stability, rapid response time, non-toxic probe, and does not produce toxic gases. Additionally, it features a liquid crystal display for gas concentration, making the instrument readings more convenient and accurate.

This instrument has been upgraded with an alarm setting feature, which automatically emits an alarm sound when the concentration of the measured gas reaches or exceeds the set value.

This equipment is specifically designed for departments such as electricity, railway, electrical manufacturing, chemical industry, firefighting equipment, and atomic physics research that require charging.Six FluorideNo Chinese content provided.Leak detection for equipment and containers can be performed quickly and accurately, with qualitative and quantitative testing.

Technical Specifications

Measurement RangeSF₆）：0.01ppm to 500ppm (by volume)

Response Time: Not greater than3 seconds

Indication Method: Liquid crystal digital display and audio-visual alarm signals

Alarm Setting Range:0.01ppm to 500ppm (by volume)

Vacuum pump flow rate:0.5 liters/second

Vacuum Pipeline Length:4 meters

Continuous Work Hours: No content provided.4 hours

Work Conditions ： AC Power Supply 220V 50Hz

Ambient Temperature 7℃-40℃

Relative Humidity No content provided.85%

Power: Approximately180W

Overall weight Please provide the Chinese content to be translated.15Kg
