Sensory Load Direct Resistance Tester

Intuitive Load Resistance Test Instrument, Transformer Inductive Load Test Instrument, Transformer Inductive Load Direct Resistance Test Instrument

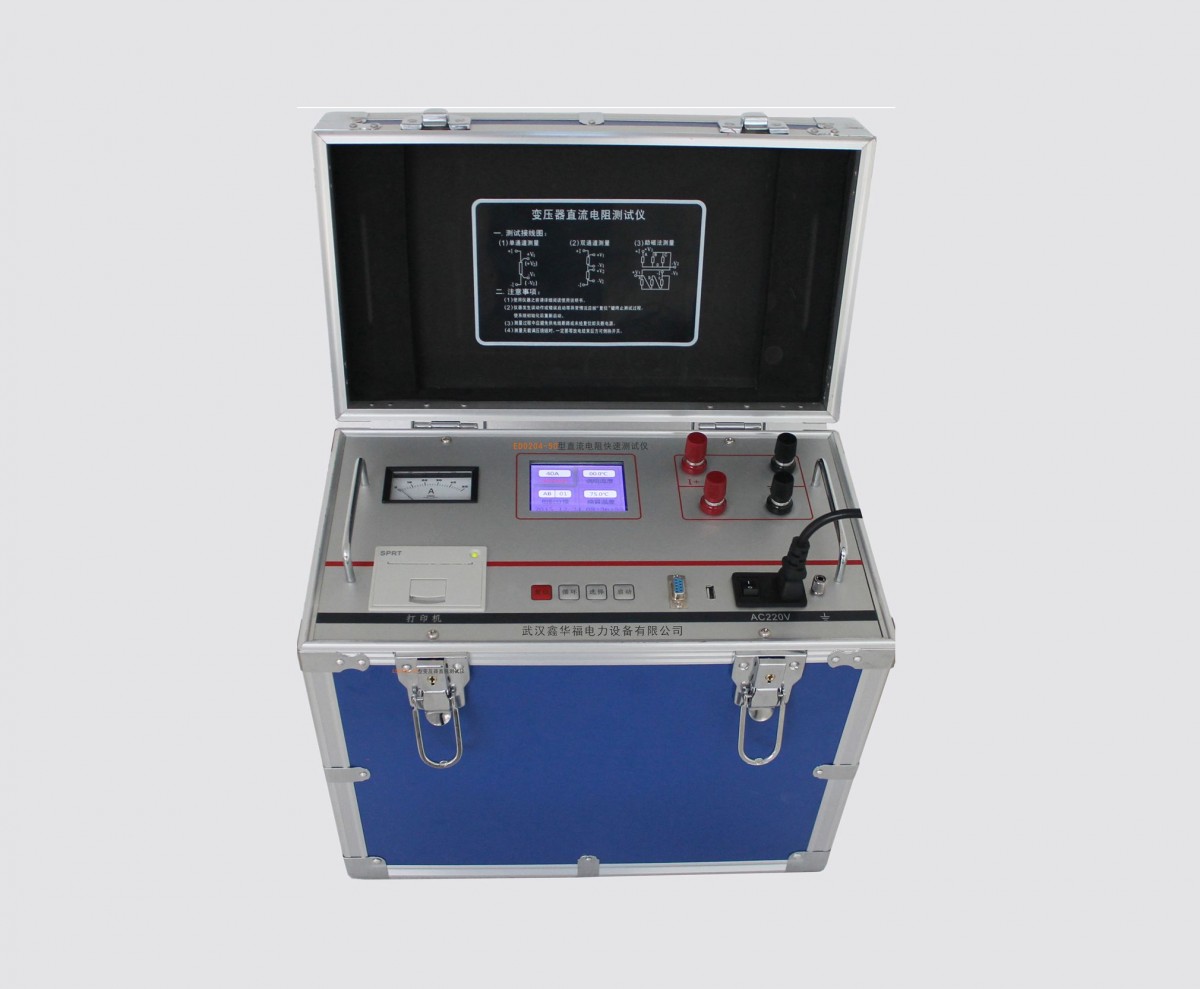

ED0204The Inductive Load Direct Current Resistance Tester, also known as the Transformer Inductive Load Direct Current Resistance Tester, is an indispensable transformer inductive load direct current resistance testing instrument in the power transformer test requirements. The Inductive Load Direct Current Resistance Tester is suitable for the transformer inductive load direct current resistance testing project in transformer handover and major repair projects.

ED0204The Sensory Load Direct Current Resistance Tester is an indispensable testing instrument in electrical power testing requirements, a high-precision replacement product that replaces the direct current single and double arm bridges.1AThe Sensory Load Direct Current Resistance Tester employs a precise constant current power supply processing technology, featuring a four-and-a-half-digit display.LCDMeasurement results of liquid crystal display, three and a halfLCDThe LCD display currently shows the ambient temperature or output current value, allowing for clear readings even under direct sunlight. It also features an automatic discharge function to prevent the formation of arcs.ED0204The Sensory Load Direct Current Resistance Tester offers fast speed, high accuracy, strong anti-interference ability, compact size, and is unaffected by human factors. It features six-position manual quick adjustment of output current and a wide measurement range.1μΩ-2kΩ, error not exceeding0.2%，ED0204The Sensitive Load DC Resistance Tester is an ideal testing instrument for measuring the resistance of inductive loads such as power transformers, as well as low-voltage switch contact resistance, wire and cable resistance, or weld joint interfaces. Its measurement speed is over a hundred times faster than that of a Wheatstone bridge. ED0204Integrating a rechargeable battery pack into the感性负载直流电阻测试仪12V(Sustainable Use)8Hours of runtime, also with the option for power exchange, making it convenient for use on-site and in harsh mountainous conditions.

Instrument Alias

Inductive Load Direct Resistance Tester, Transformer Direct Resistance Rapid Measurement Instrument, Transformer Direct Resistance Quick Test Instrument, Inductive Load Direct Resistance Tester, Inductive Load Direct Resistance Tester, Inductive Load Direct Resistance Tester, Direct Resistance Meter

Instrument Function

1Test Speed: The Sensory Load DC Resistance Tester features a high output charging current for fast testing.1ADuring measurement, it effectively compensates for the current inertia of high inductance equipment, accelerates core saturation, thereby shortening the charging time and increasing the testing speed, several hundred times faster than the traditional single and double arm bridge testers.

2High Accuracy: This testing instrument not only employs the advanced four-wire measurement method but also incorporates cutting-edge constant current power supply technology. This ensures that the charging current for inductive loads remains at a relatively stable level, providing stable anti-inductive capability and strong anti-interference ability, thereby guaranteeing the measurement accuracy. Additionally, it utilizes imported components from abroad.Optimal.No Chinese content provided.Components, with high accuracy and repeatability of measurement results.

3Measurement Range: Resistance measurement range1μΩ～2KΩ, Wide Range

4Dual AC/DC Power Supply: Equipped with a rechargeable battery pack, operates on both AC and DC power, portable design for easy use and carry.
