Voltage-Ampere Characteristic Tester

The Volt-Ampere Characteristic Tester, also known as the Comprehensive Volt-Ampere Characteristic Tester for Transformers and the Transformer Volt-Ampere Characteristic Tester, is a fully automatedCT/PTThe Transformer Voltage-Ampere Characteristic Comprehensive Tester is a specialized testing instrument for relay protection and high-voltage insulation. The tester can perform tests including voltage-amperage (excitation) characteristic curves, where it can automatically provide the inflection point values.5%And10%Error curve, AC voltage withstand test, core demagnetization.

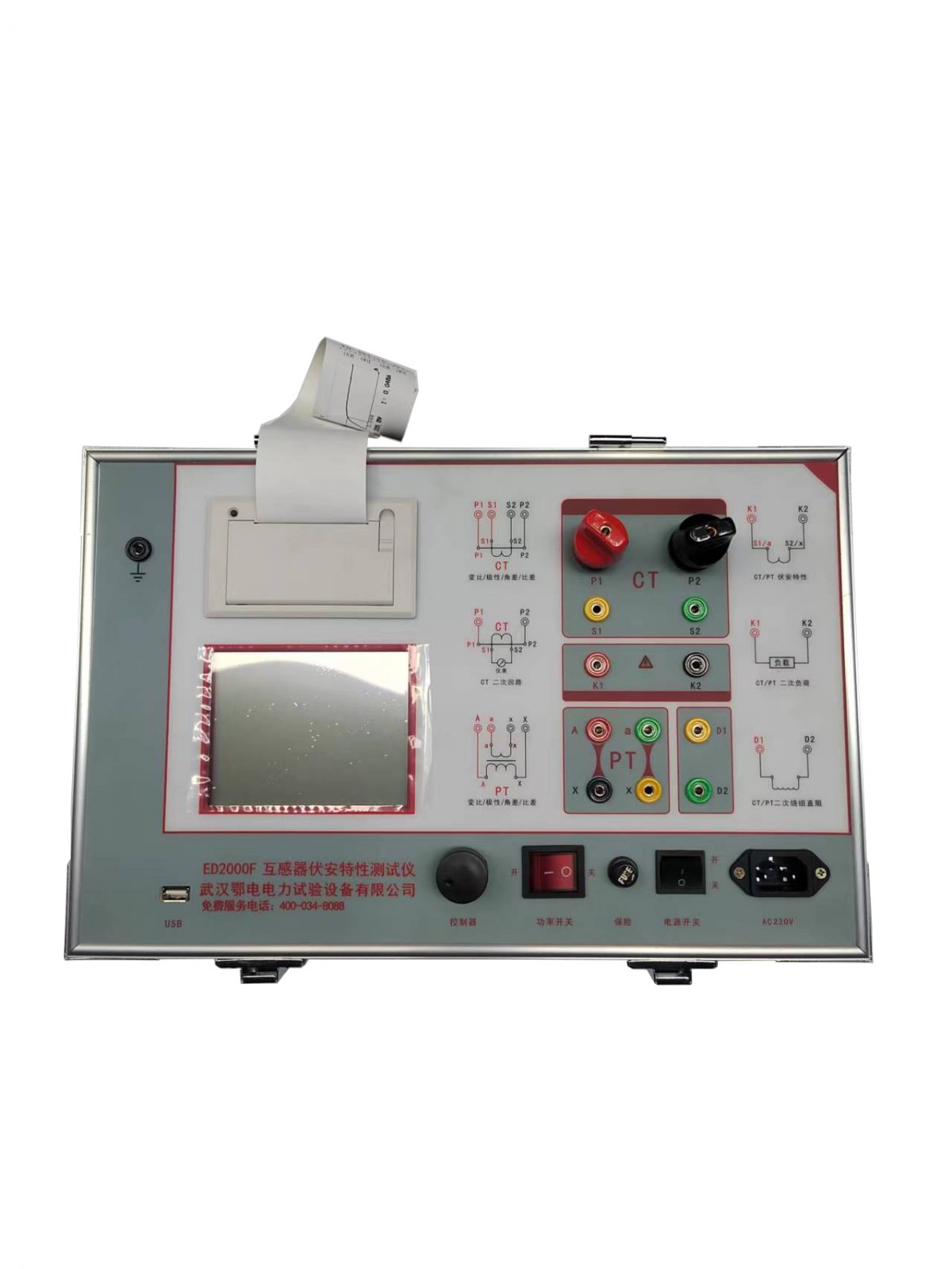

ED2000The Transformer Impedance and Voltage Test InstrumentE'dianPower R&D Center referencedGB 1207-2006，GB1208-2006Developed in accordance with national standards, our specialized protective products.CT、PTThe Integrated Function Test Instrument and the Transformer Voltage-Ampere Characteristic Comprehensive Test Instrument are specialized testing devices for relay protection and high-voltage insulation professionals. The comprehensive test instrument for transformer voltage-ampere characteristics can perform tests including:CTExcitation characteristic curve, automatically provides inflection point values.5%And10%Error curve, transformation ratio measurement, polarity determination, single current passage test, AC withstand voltage test, core demagnetizationPTExcitation characteristic curve, automatically provides inflection point values, transformation ratio measurement, polarity determination, AC withstand voltage test, core demagnetization.

The Transformer Voltage-Ampere Characteristic Comprehensive Tester features a large-screen rotary mouse for quick operation and automatic printing. The tester can be connected to a dedicated interface for...PCServe microcomputer operations and analysis reports.

Instrument Alias

PTVA Characteristics Comprehensive Tester, Transformer VA Characteristics Comprehensive TesterCTVA Characteristics Comprehensive TesterCTVolt-Ampere Characteristic TesterPTVolt-Ampere Characteristic Testers, Transformer Volt-Ampere Characteristic Testers, Volt-Ampere Characteristic Ratio and Polarity Comprehensive Testers, Volt-Ampere Characteristic Testers, Comprehensive Volt-Ampere Characteristic TestersFA-103Voltage-Ampere Characteristic TesterCTPTComprehensive Feature Tester

Instrument Function

1The Transformer Impedance Characteristic Integrated Test Instrument supports detection.CTNo Chinese content provided.PT

2Sensor Transformer Voltage-Ampere Characteristic Comprehensive Tester MeetsGB1207、GB1208Pursuant to the regulations

3No external auxiliary equipment is required; all testing projects can be completed on a single machine.

4Integrated with a mini rapid printer, capable of printing test results on-site directly.

5The transformer voltage-current characteristic integrated tester features an intelligent controller, with simple operation.

6Large-screen LCD with graphical display interface for the transformer's voltage-current characteristic comprehensive tester

7Routine automatic outputCT/PTExcitation Crossover Point

8The transformer voltage-ampere characteristic comprehensive tester automatically provides5%And10%Error Curve

9Save3000Compiling test data, no loss after power failure

10SupportUPlease rotate the storage media, which can be accessed through standardPCConduct reading and generate a detection report

11Compact and Lightweight ≤22KgExtremely conducive to on-site testing.
