I. Product Introduction

The COP138 SF6 Leak Online Monitoring and Alarm System is an intelligent online detection system designed and developed in response to the current emphasis on safety production in the power system. It aims to provide personnel health and safety protection for the staff working in substation rooms equipped with SF6 equipment.

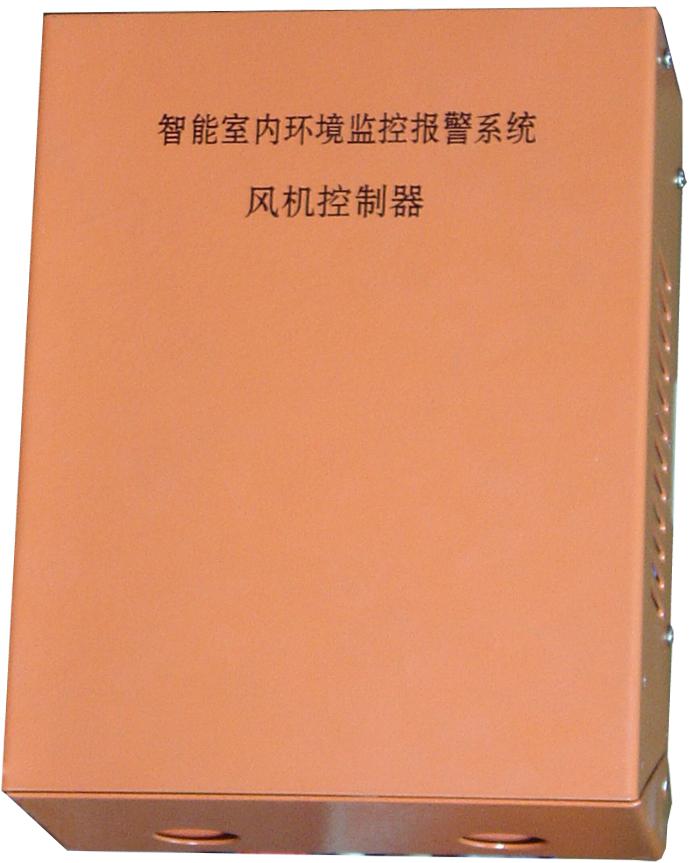

The system primarily detects the levels of SF6 gas and oxygen in ambient air. It can trigger real-time alarms when the SF6 gas concentration exceeds the limit or oxygen levels are low, automatically activate ventilation fans, and offers a range of features including temperature and humidity detection, voice prompts for operational status, remote alarms, and historical data queries.

The system incorporates new sensor technology capable of real-time SF6 concentration measurement. Not only does it ensure personal safety, but it also guarantees the proper operation of equipment; the imported high-stability oxygen sensors provide an additional layer of reliable protection for on-site staff.

This system can be widely applied to various voltage level SF6 switch rooms, integrated switchgear rooms (GIS rooms), and SF6 main transformer rooms.

New Principles, New Technologies

Utilizing cutting-edge sensor technology, the system can detect SF6 levels in the atmosphere in real-time.

The device can simultaneously measure oxygen content, as well as temperature and humidity.

Users can adjust the alarm points themselves.

Fieldbus communication, capable of expanding gas detection sensors as needed.

Easily assembled into a remote monitoring system, enabling telemetry and remote control functions.

The system communication utilizes the IEC 870-5-103 standard communication protocol, facilitating easy integration with the comprehensive self-monitoring and control system or other systems.

Concept of on-site maintenance-free.
