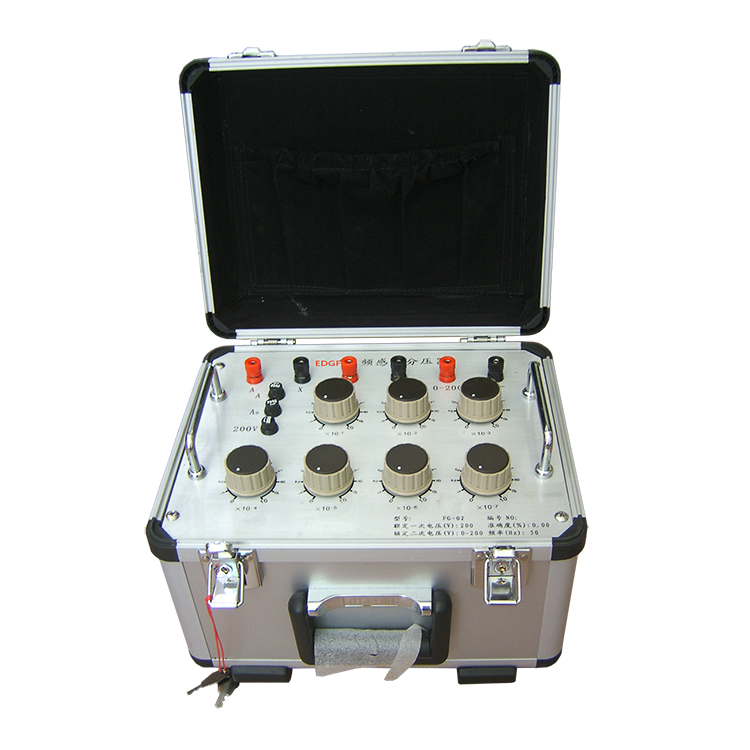

The power frequency induction voltage divider utilizes a self-coupled two-stage voltage ratioing transformer in cascade operation, switching through a switch.,The device can generate any voltage ratio value. It boasts the advantages of accurate, stable voltage ratio and universal ratio output. This equipment can be widely applied in various measuring circuits and devices.

Section II: Technical Specifications

1.Environmental Conditions

Please provide the Chinese content that needs to be translated into American English.    No Chinese content provided.      20±5℃

Relative humidity     ＜80%

Altitude     ＜1000m

Dry    No Chinese content provided.      No strong electromagnetic field interference sources and vibrations

2.Power Conditions

Frequency    Please provide the Chinese content you would like translated into American English.              50±0.5Hz

Input Voltage Distortion Coefficient      ＜5%

3.Performance Metrics

Rated Voltage      200V

Rated secondary voltage      0～200V

Rated Load          0VA

Accuracy Level        0.002Level

Please provide the Chinese content to be translated.Quantitative      11Kg

III. Working Principle
