Discharge Counter Tester

The AC/DC lightning arrester discharge counter tester, also known as the lightning strike counter tester, arrester discharge counter calibrator, and lightning strike counter calibrator, is suitable for various...JS8，JS9No Chinese content provided.JSThe discharge action counter operation of model lightning arresters is detected. The lightning arrester discharge counter tester is used for testing conditions in power stations, meteorological stations, and other installations equipped with discharge counters. The lightning arrester discharge counter tester is a specialized power testing instrument for lightning arresters designed to check whether the discharge counters are operating normally.

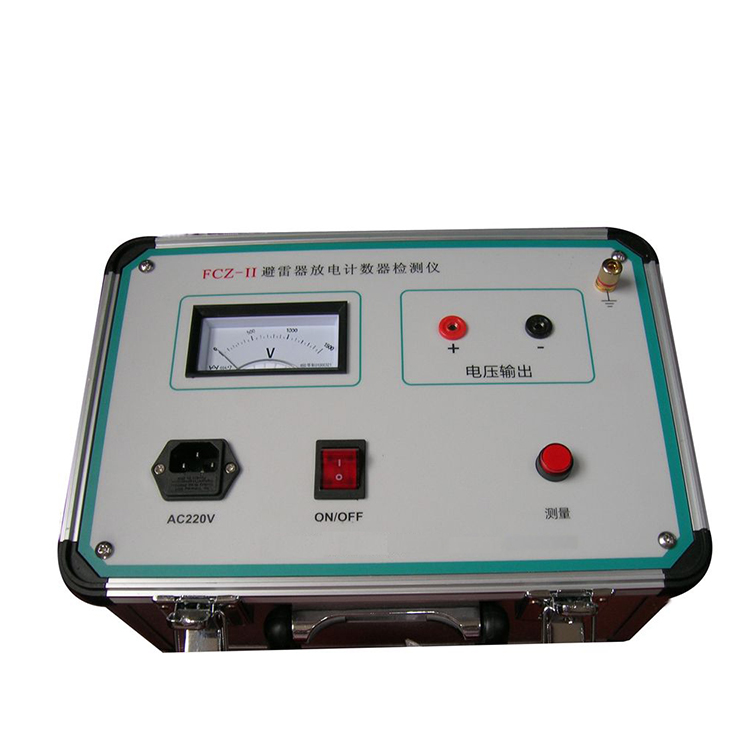

ED0401-1Surge Arrester Discharge Counter Tester(AC/DC)The Lightning Counter Tester is designed for testing conditions with discharge counters in power stations and meteorological stations. The Surge arrester discharge counter tester is a specialized power tester for surge arrestor discharge counters, which is used to check whether the discharge counters are operating normally. The Surge arrester discharge counter tester is suitable for various applications.JS8，JS9No content provided for translation.JSDischarge action counter operation detection for model lightning arresters; the lightning arrester discharge counter tester employs8/20μsCurrent waveform output, easy operation and usage, accurately detects the action of the counter, the surge protector discharge counter tester is powered by AC/DC, convenient for on-site movement by customers.

Instrument Alias

Surge Arrester Discharge Counter Testers, AC/DC Surge Arrester Discharge Counter Testers, AC Surge Arrester Discharge Counter Testers, DC Surge Arrester Discharge Counter Testers, Discharge Counter Testers, Discharge Counter Verifiers, Lightning Stroke Counters Verifiers, Lightning Stroke Counter Verifiers, Lightning Stroke Action Testers, Lightning Stroke Discharge Counter Testers, AC/DC Lightning Stroke Discharge Counter Testers

Instrument Function

1The surge arrester discharge counter tester (AC/DC) comes with a rechargeable battery, suitable for both AC and DC applications.

2The lightning arrester discharge counter tester (AC/DC) is compact and lightweight.

Lightning Counter Tester Parameters

Test Instrument Model  ED0401-1

Instrument Name  Surge Arrester Discharge Counter Testers, Lightning Strike Counter Testers, Surge Arrester Discharge Counter Verifiers, Lightning Strike Counter Verifiers

Output Impulse Current Waveform 8/20μs

Current Amplitude  ＞100A

Dimensions  375*270*155mm3

Weight          6.12kg
