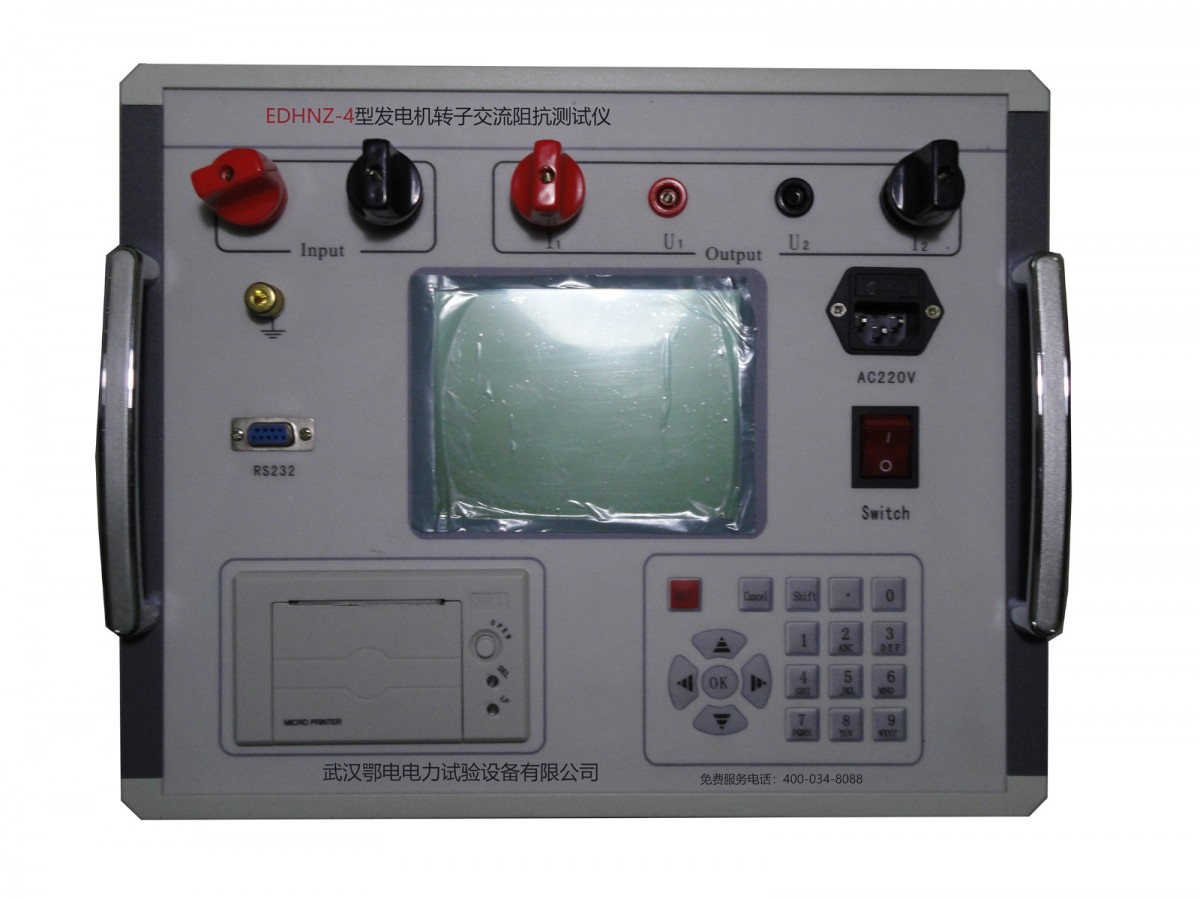

Generator Rotor Impedance Tester

Summary

The Generator Rotor AC Impedance Tester is our company's new enhanced AC Impedance Tester. Utilizing today's advanced high-speed microprocessor technology, it boasts greater functionality, superior performance, and ease of use. It features high operational reliability, simple operation, high test accuracy, and is compact and lightweight. Currently, it is leading in the domestic market..First, level horizontally.

Feature Functionality

1Automatically collects, measures, displays, stores, and prints all measurement parameters and impedance characteristic curves (voltage, current, impedance, power, frequency, equipment number, time, etc.).

2Our equipment offers ultra-wide measurement range, capable of fully automatic and manual measurement of all generator rotor AC impedance and its characteristic curves.

3With an internal high-capacity storage, capable of storing test data, and connectivity via standard industrial communication interfaces.RS232Uploaded toPCOur company's machine utilizes the random software we developed for data downloading, automatic generation, and editing of typical test reports, facilitating technical management and archiving.

4The product features comprehensive over-voltage and over-current protection functions, with the over-voltage and over-current protection values automatically adjusted based on the test parameter settings, offering both simplicity and safety assurance for the tested equipment.

5The unit can be used for no-load and short-circuit tests of single-phase transformers, as well as for testing the voltage/current transformer and arc suppression coil's voltage-amperage characteristics.

6Self-contained large screen graphicsLCDThe full Chinese menu interface is easy to navigate with cursor prompts, offering simplicity and convenience. Test data and curves are displayed in real-time, with automatic scaling of curve coordinates for clearer graph interpretation.

7Equipped with a mini printer, it can instantly print AC impedance test reports and AC impedance characteristic curves.

Key Technical Indicators

1No content provided for translation.

Temperature: -5C～40C

Relative Humidity:<95%（25C）

Altitude:<2500m

External Interference: No severe vibrations, no severe electromagnetic fields

Power Supply:200VAC~240VAC，45Hz~55Hz

2No Chinese content provided.

1)Exchange Impedance0－6kΩ   0.2Please provide the Chinese content that needs to be translated.

2)Line Voltage0－600V   0.2No Chinese content provided.

3)AC Current0----120A   0.2No Chinese content provided.

4)Achievement in Power Efficiency0-----72KW   0.5No Chinese content provided.

5)Frequency40---75HZ   0.2No Chinese content provided, so no translation needed.

6)Volume415×225×200mm

7)Weight5kg

3Insulation strength

1)Insulation resistance between the voltage and current input terminals and the casing ≥100MΩ。

Operating power input terminal withstands working frequency between housing2KV（Effective Value），spanning1Minute Experiment.
