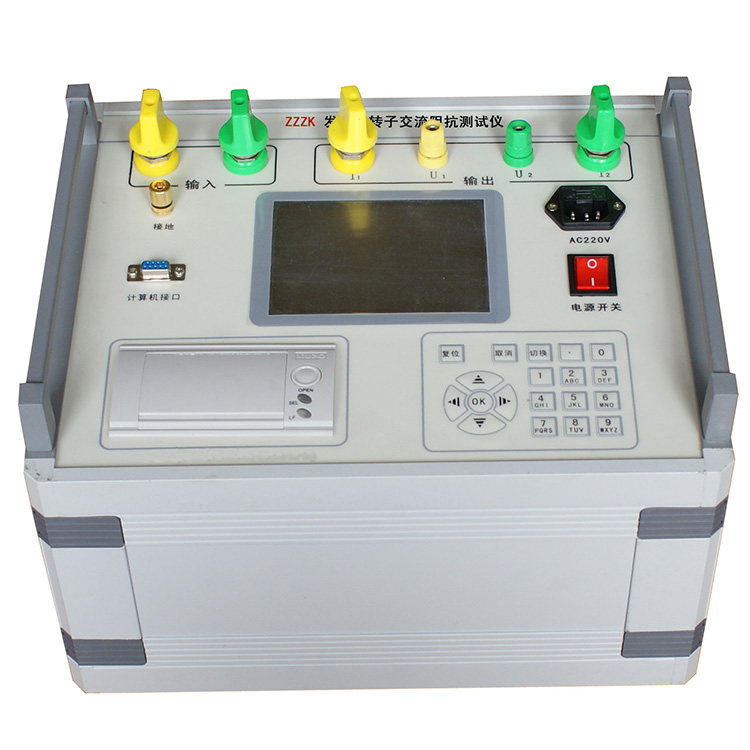

Generator Rotor AC Impedance Tester

Summary

The Generator Rotor AC Impedance Tester is our company's new enhanced AC Impedance Tester. This instrument utilizes the cutting-edge high-speed microprocessor technology of today, offering greater functionality, superior performance, and ease of use. It boasts high operational reliability, simple operation, high testing accuracy, and is compact and lightweight. Currently, it is leading in the domestic market..First, level horizontally.

Feature Functionality

1Automatically collects, measures, displays, stores, and prints all measurement parameters and impedance characteristic curves (voltage, current, impedance, power, frequency, equipment number, time, etc.).

2Our equipment offers ultra-wide measurement range, capable of fully automatic and manual measurement of all generator rotor AC impedance and its characteristic curves.

3With built-in high-capacity storage for storing test data and compatibility with standard industrial communication interfaces.RS232Uploaded toPCOur machine utilizes our developed random software to facilitate data downloads, automatic generation, and editing of typical test reports, making technical management and archiving more convenient.

4The product features comprehensive over-voltage and over-current protection functions, with the over-voltage and over-current protection values automatically adjusted based on the test parameter settings, ensuring both simplicity and safety for the tested equipment.

5The product can also be used for no-load and short-circuit tests of single-phase transformers, as well as for testing the voltage (current) transformer and arc-suppression coil's volt-ampere characteristics.

6With built-in large screen graphicsLCDThe full Chinese menu interface is user-friendly with cursor prompts for simple operation; real-time display of test data and curves, with automatic scaling of curve coordinates for clearer graph reading.

7Equipped with a built-in miniature printer, it can instantly print AC impedance test reports and AC impedance characteristic curves.

Key Technical Indicators

1No Chinese content provided.

Temperature: -5C～40C

Relative Humidity:<95%（25C）

Elevation:<2500m

External Interference: No severe vibrations, no severe electromagnetic fields

Power Supply:200VAC~240VAC，45Hz~55Hz

2Performance Metrics

1)交流阻抗 - AC Impedance0－6kΩ   0.2Level

2)AC Voltage0－600V   0.2No Chinese content provided.

3)Alternating Current0----120A   0.2No Chinese content provided.

4)Power Output0-----72KW   0.5Grade

5)Frequency40---75HZ   0.2No Chinese content provided.

6)Volume415×225×200mm

7)Weight5kg

3Insulation strength

1)Insulation resistance between voltage and current input terminals and the housing ≥100MΩ。

Working power input terminal withstands alternating current between the housing2KV（Effective Value），Duration1Minute Experiment.
