Overview：

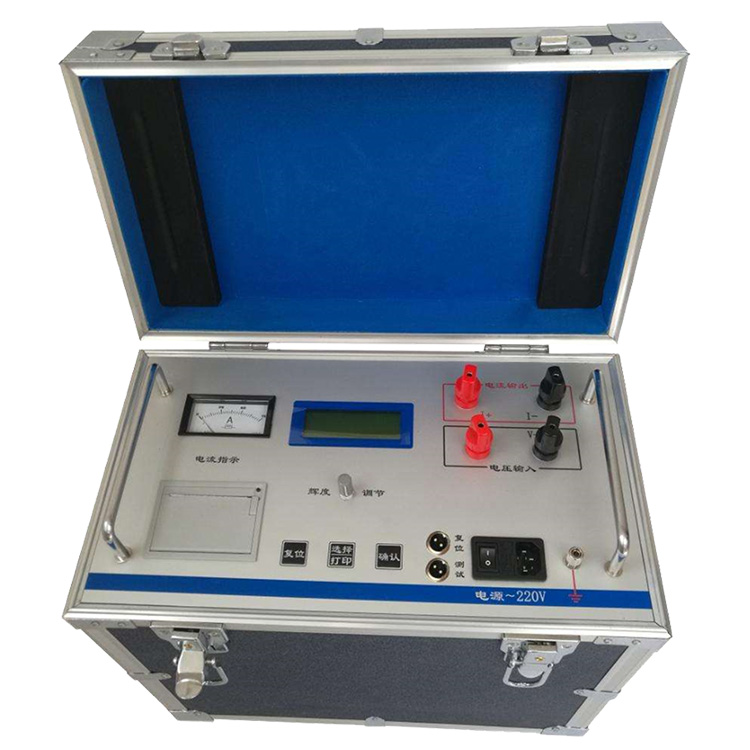

1Generator Armature Lamination Resistance Tester is a specialized device for detecting the resistance of generator armature laminations.,By detecting the resistance between the commutator segments of the generator motor, it can effectively assess whether the welding between the commutator and the winding is sound and identify any poor conditions such as open circuits or short circuits in the winding.

2Our instrument employs a high-precision constant current power supply, which is ideal for the production and maintenance of DC motors.First.SelectedEquipment. The testing of inter-lamina resistance in DC motor windings is an effective means to detect the balance of stator winding resistance. The preventive test regulations for electrical equipment have specific provisions for this test. The inter-lamina resistance tester consists of a constant current power supply, a voltage detection circuit, and a control circuit, with adjustable output current, stable current, and direct display of resistance values for easy data reading, significantly improving measurement speed. It is an upgraded product that replaces the previous models which required manual calculation after displaying voltage and current readings on a meter.

This tester utilizes a microcontroller for control and features a user-friendly Chinese character interface display. Its testing current is:5mA-10AOptionalThe device utilizes liquid crystal displays to test current and resistance values, offering the capability to print outputs. It boasts accurate measurements, stable performance, and ease of operation.

2 Safety Matters

★ This instrument is suitable for both indoor and outdoor use, but should be avoided in areas prone to rain, corrosive gases, dust, and high temperatures.

★ Always read this manual before using the instrument.

★ Operators of the instrument should possess general knowledge of the use of electrical equipment or instruments.

★ This gauge is a high-precision instrument and should be avoided from剧烈 vibrations.

★ Maintenance, repair, and calibration of this instrument should be performed by professionals.

★ Always wait for the discharge indicator to complete before turning off the power and removing the test wires.

★ Ensure to switch the transformer tap position only after the discharge prompt has ended when measuring unloaded voltage regulators.

★ During the testing process, disassembly and movement of the test clips and power lines are prohibited.
