AC Impedance Test Instrument for Generators

Summary

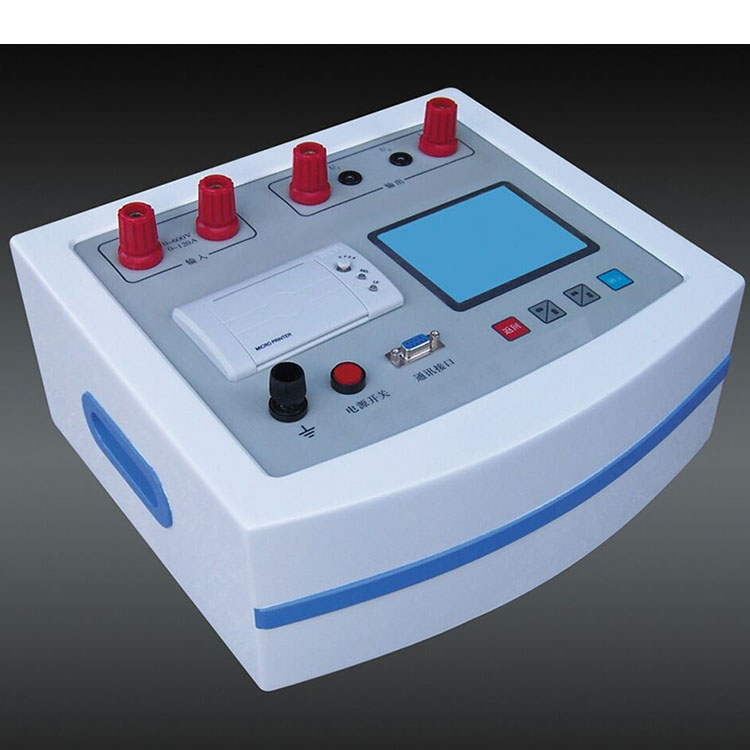

ZC-401A Our newly launched Enhanced Generator Rotor AC Impedance Tester is a cutting-edge instrument utilizing today's advanced high-speed microprocessor technology. It boasts enhanced functionality, superior performance, and ease of use. Characterized by high reliability, user-friendliness, high test accuracy, and compactness, it is currently leading in the domestic market.Lead.There is no Chinese content provided to translate.Level.

I. Feature Functions

1、 Automatically collect, measure, display, store, and print all measurement parameters and impedance characteristic curves (voltage, Current, impedance, power, frequency, equipment number, time, etc.).

2、 Highly versatile, capable of fully automatic and manual measurement of all generator rotor AC impedance and its characteristic curves.

3、 Built-in high-capacity storage for storing test data, compatible with standard industrial communication interfaces.RS232Uploaded toPCOur machine utilizes our company-developed random software to facilitate data downloads, automatic generation, and editing of typical test reports, making technical management and archiving more convenient.

4、 The product boasts comprehensive over-voltage and over-current protection features, with over-voltage and over-current protection thresholds automatically adjusted based on the test parameter settings, offering both convenience and safety assurance for the tested equipment.

5、 The product can perform no-load and short-circuit tests for single-phase transformers, as well as voltage (current) transformer and arc-suppression coil's voltage-current characteristic tests.

6、 Built-in Large-Screen GraphicsLCDThe fully Chinese menu interface is simple and convenient, with cursor prompts for operations. Real-time test data and graphs are displayed, with automatic scaling of graph coordinates for clearer reading.

7、 Equipped with a mini printer, it can instantly print AC impedance test reports and AC impedance characteristic curves.

Section 2: Key Technical Specifications

1Environmental Conditions

Temperature:－5°C～40°C

Relative Humidity:<95%（25°C）

Altitude:<2500m

External Interference: No strong vibrations, no strong electromagnetic fields

Power Supply:200VAC~240VAC，45Hz~55Hz

2、Performance Metrics

1) Impedance Matching          0－6kΩ   0.2No Chinese content provided.

2) AC Voltage          0－600V   0.2No Chinese content provided.

3) 交流电流 - Alternating Current          0----120A   0.2No Chinese content provided.

4) Achievement in Efficiency          0-----72KW   0.2No Chinese content provided.

5) Frequency  Rate            40---75HZ   0.2No Chinese content provided, original return: "No content provided."

6) Body  No Chinese content provided. Please provide the text to be translated.            415×225×200mm

7) Please provide the Chinese content you would like translated into American English.  Quantum            5kg

3Insulation strength

1) Insulation Resistance Between Voltage and Current Input Terminals and Chassis≥100MΩ。

2) Work power input terminal withstands AC frequency between the housing2KV(Effective Value), spanning1Minute Experiment.
