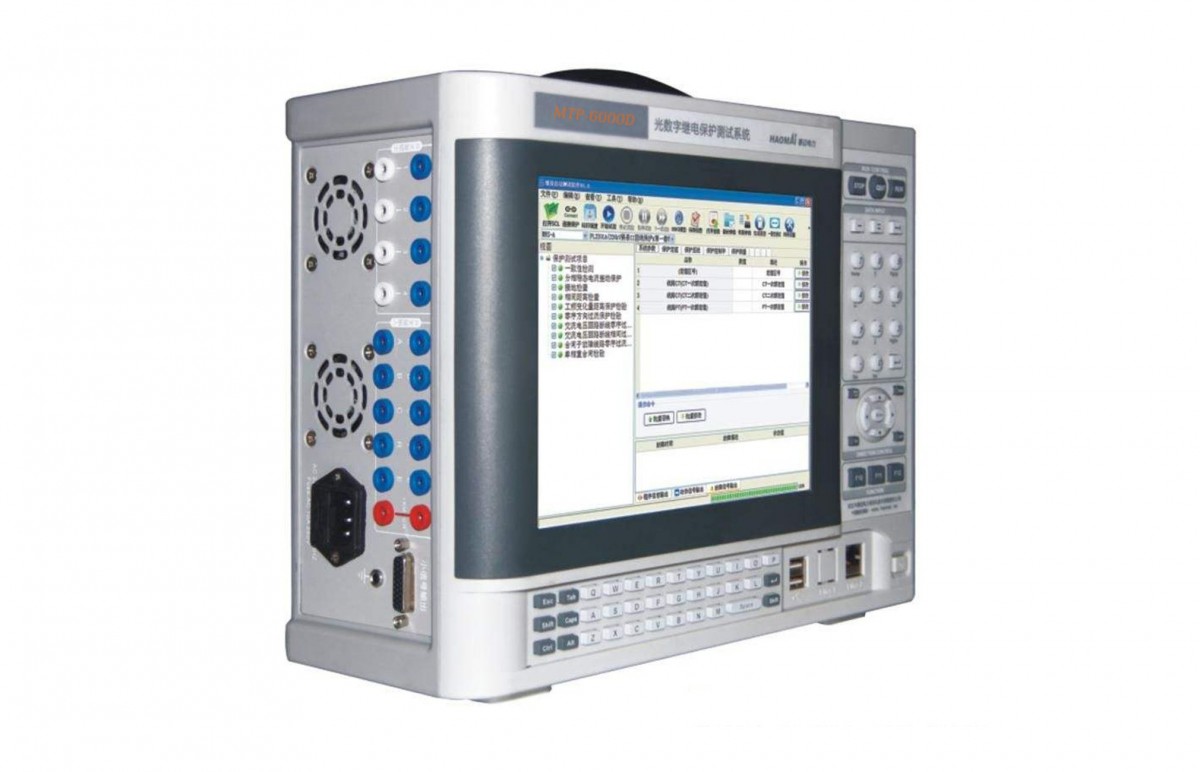

Multi-functional Relay Protection Test Device

Product Advantages

The 1GD relay protection tester integrates optical digital testing and small signal analog quantity testing functions, and can be externally connected to current and voltage amplifiers.

2 Support10Lu Independent MeetsIEC60044-8（FT3Standard Sample ValuesSMVMessage Output1Input route; support synchronization/Asynchronous transmission mode, supporting multiple transmission speeds.

3 Supported8Group meetsIEC61850-9-2Standard Sampling ValuesSMVMessage output, sampling points at equal intervals, fully compliant with the new standards of State Grid.

4 supported12GroupGOOSEOutput8GroupGOOSENo Chinese content provided.,Configurable to any optical port.

5 can automatically detect optical digital signals, achievingSMV、GOOSEAutomated information configuration

6 Features virtual terminal testing functionality.

7 Features message oscilloscope function, capable of receiving and interpretingIEC61850-9-2Standard Sample ValuesSMVMessageGOOSEMessage, realizes self-loop test of device output; simultaneously, capable of receiving merged units (MU) or otherIEDThe equipment emits digital signals that display its waveform, amplitude, angle, and frequency in real-time.

The product boasts powerful message logging, real-time message alerting, and offline message analysis capabilities.

9 Supports Multiple GroupsGOOSEMessage reception or transmission

１０SMVPlease provide the Chinese content to be translated.GOOSEThe optical port can be configured arbitrarily, either for simultaneous transmission and reception, or for independent transmission and reception.

11 Comprehensive Analysis of the Protection Model FileICD，CID，SCDPlease refer to the attached file) to achieve current-voltage channel selection, proportional coefficients,ASDUNumbers, sampling rate,GOOSEAutomated configuration of information, simplifying protection testing and enhancing work efficiency.

The 12 can perform message tests such as frame dropping, step loss, flying spot, incorrect sequence, invalid quality bit setting, and incorrect value testing.

13thGPS、IRIG-B、IEEE1588Synchronization Time Function

14 features self-loading device debugging function

１５12The independent simulation of small signal output supports compatibility with various protective electronic current transformers for testing purposes; or it can be connected to power sources of different brands for comparative tests between conventional and digital protection.

１６8Open orders received.4Quantities ordered for General4For quick order fulfillment,GOOSEInformation message, achieving a complete closed-loop test for protection.

The 17 software offers comprehensive testing capabilities, enabling the testing of various microcomputer protection devices such as line protection, busbar protection, transformer protection, and generator-set protection, as well as backup and self-disconnect devices.

18 supports standardsCOMTRADEFormat Waveform Playback

Product Introduction

The OptiDigital Relay Protection Tester is suitable for those that comply with...IEC 61850Standardized fully digital substation, not only can output based onIEC 61850-9-2LE、IEC60044-7/8The sampling value message, while capable of receiving and transmitting.GOOSEMessage.

Open AgreementSMVNo Chinese content provided.GOOSEMessages all support flexible configuration for seamless integration with products from any manufacturer.

Excluding based onIEC 61850In addition to digital outputs, the tester can also provide0~7VThe news release contains no text in Chinese to translate.

Digital Outputs and Analog Outputs, Hardwired Inputs and OutputsGOOSEA variety of combinations are available, easily configurable to cater to relay protection devices for various input/output methods, with test solutions provided for all.

Even with the output40mVAt this time, still maintainingExtreme.High precision, overall output accuracy meets0.05No Chinese content provided.

Simulated process layer equipment anomaly, flexible setting of channel quality factor, frame and point loss during sampling, for evaluating the interval layerIEDProviding comprehensive solutions for correct responses in the event of process layer equipment anomalies.

Self-contained industrial computer12.1The TrueColor Display is also compatible with external computer operation.
