Multiple Pulse Cable Fault Tester

I. Overview:

The XFH-8637 Cable Fault Tester is designed for detecting short circuits, open circuits, low-resistance ground faults, high-resistance leakage, and high-resistance flashover faults in various cables below 35kV voltage levels.

The XFH-8637 Cable Fault Tester is developed based on the advanced secondary pulse method cable fault testing technology. In addition to all the advantages of the secondary pulse method cable fault tester, it introduces a significant feature: while performing high-voltage impulse discharges, the pulse generator continuously sends a set of eight cable fault testing pulses and a set of eight full-length cable testing pulses (totaling 16 pulses) with different delay times. Operators can select an easily analyzed cable fault reflection waveform from the eight groups of cable fault waveforms displayed on the screen. This eliminates the need for complex parameter settings and repeated high-voltage impulse discharges. This is because the eight groups of fault waveforms are obtained at the moment of triggering the pulse generator with high-voltage impulses at different time intervals. It also eliminates the cumbersome medium-voltage extension arc device, simplifies the testing process, and provides users with a more straightforward method for fault waveform judgment.

This instrument utilizes the most advanced internationally available technology."The 'Multiple Pulse Method' technology, an independently owned testing technology, and a multi-pulse generator with Chinese characteristics, endow the instrument with excellent cable fault waveform judgment capabilities and a simple and convenient operating system. This instrument boasts independent intellectual property rights and is the first domestically developed successfully in China."IndependentUniqueNo Chinese content provided."Pulse Testing Instrument for Cable Faults Using the 'Multiple Pulse Method'"

The advanced aspect of the multiple-pulse method lies in the fact that the fault waveforms obtained from on-site testing provide operators with more flexibility, eliminating the need for continuous adjustment of the test pulse delay time to achieve an ideal secondary pulse waveform.No need for cumbersome medium-pressure rolling arc equipment. Reduced technical and experience requirements for operators. Enhanced accuracy in identifying on-site malfunctions. Anyone can conveniently and accurately interpret waveforms, calibrate fault distances, achieving the goal of rapid and precise cable fault testing.

The overall technology of the XFH-8637 Cable Fault Tester is comparable to foreign counterparts, and its performance-to-price ratio is significantly superior to similar products domestically and internationally.

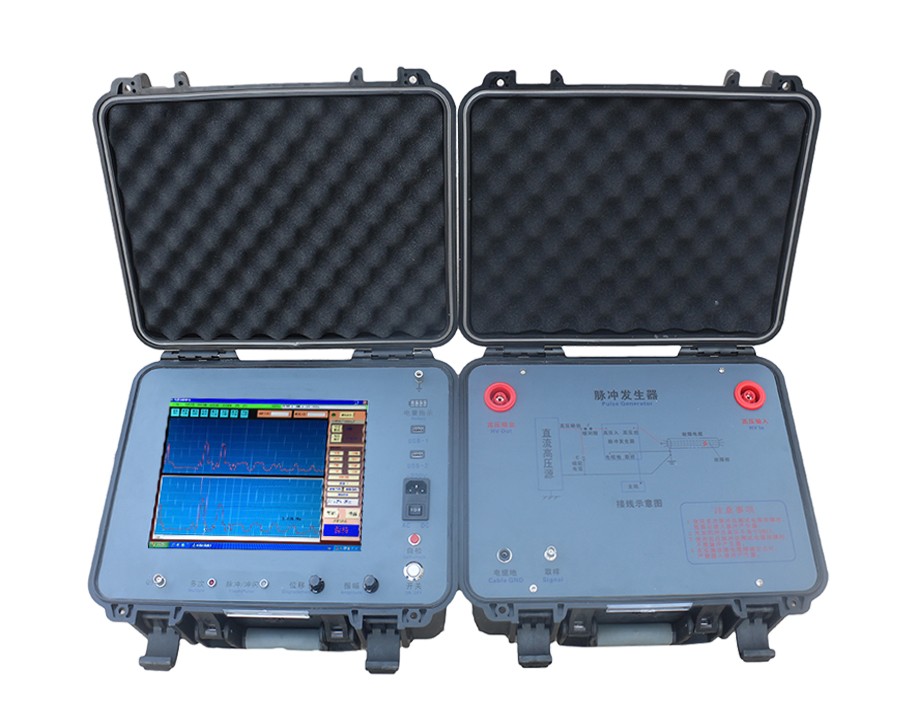

The XFH-8637 Cable Fault Tester features a large, true-color touch screen with clear waveform characteristics display. Thanks to the defined screen touch simulation buttons, the operation is extremely simple.

II. Instrument Functions and Features:

1． Available for measurementHigh and low resistance faults of all cables below 35KV ratings, with broad applicability.

2． Adopting internationally advanced"Pulse Testing Technique with Multiple Pulses." Additionally, it features the traditional high-voltage impulse flashover method.

Low-pressure pulse method.

3． Any high-resistance fault exhibits simple waveforms similar to low-voltage pulse short circuit faults.Extreme.Easy to read.

User-friendly software with full Chinese menu and on-screen touch simulation key operations.

4． Our detection fault success rate, testing accuracy, and ease of testing surpass any domestic detection equipment.

5． Ultra-large LCD touch screen serves as the display terminal.

6． The instrument boasts powerful data processing capabilities and a user-friendly display interface.

7． AvailableExtreme.Safe sampling high-voltage protection measures. Test instruments will not crash or be damaged in shock high-voltage environments.

8． Features standard printer interface.

9． Simple to operate, high reliability.

10． Please provide the Chinese content to be translated.Extreme.High cost-performance ratio.

11． No test blind spots.

12． Built-in power supply for testing open circuit and low resistance short circuit faults in cables without external power supply.

III. Key Performance Indicators:

1. Testing Methods: Multiple Pulse Technique; Impulse High Voltage Current Sampling Method; Low Voltage Pulse Technique

2. Impulse Voltage: Below 42KV

Data Sampling Rate: 96MHz, 48MHz, 24MHz, 12MHz

4. Test Distance: 16Km

5. No Test Blind Spots

6. Reading Resolution: 0.1m

7. System Test Accuracy Less Than 20 cm

8. Cable length options include: Short distance (<1Km); Medium distance (<3Km).

Long-distance (>)3 km) in three types

Test Pulse Amplitude: Approximately600V_P-P

Automatic display of multiple-pulse transmission and fault reflection signals, enabling representation of fault characteristic waveformsExtreme.For simplicity, all high-resistance fault waveforms are of one type, similar to those used in testing cable short-circuit faults with the low-voltage pulse method.

10. Test Waveform Storage Function: Capable of conveniently storing field test waveforms in the instrument in the specified order for easy retrieval and comparison. Unlimited storage for field test waveforms.

11. Fault point waveforms and full-length open circuit waveforms of good phases are simultaneously displayed on the screen for side-by-side and overlay comparisons. The judgment of fault point distance is more accurate.

12. Built-in Power Supply: Fully charged, it can operate continuously for 1 hour, remain in standby for over 1.2 hours, and can also work with an external AC power source simultaneously.

Work Conditions: Temperature -10℃ to +45℃, relative humidity 90%, atmospheric pressure 750±30 mmHg.
