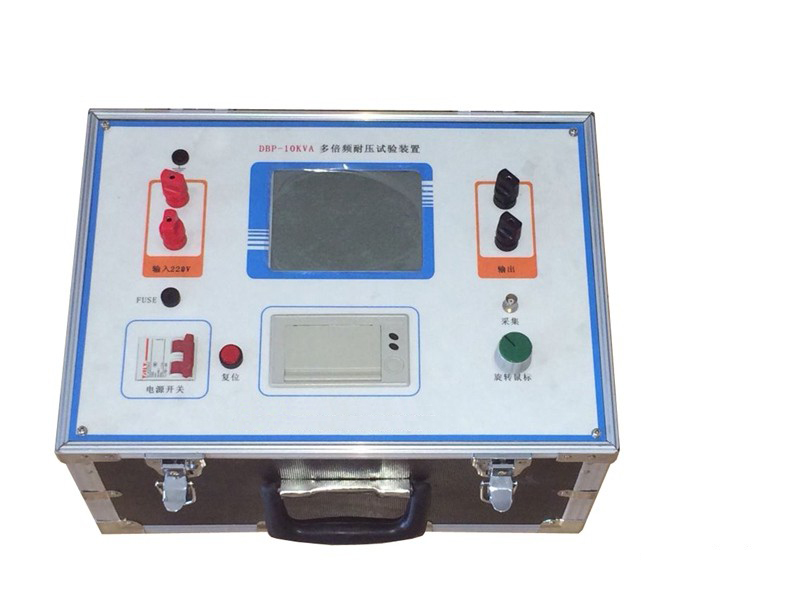

Multi-frequency Inductive Voltage Withstand Test

Product Introduction

The induction withstand test of transformers is a crucial test to ensure product quality meets national standards. The longitudinal insulation withstand tests between windings, layers, sections, and phases of transformer windings are important items in transformer insulation tests. Longitudinal insulation tests require the use of a frequency multiplier power supply unit to apply test voltages and conduct withstand tests.

EDBF Multi-Frequency Inductive Voltage ResistanceErdian PowerThe product, designed and manufactured to meet the aforementioned requirements, has been proven by a wide range of users to be easy to operate, reliable in performance, and well-suited to meet the needs of transformer and mutual inductor induction withstand tests.

Product Alias

Multiple Frequency Generator, Inductive Voltage Multiple Frequency Generator, Multiple Frequency Power Supply Generator, Test Multiple Frequency Transformer Unit, Multiple Frequency Inductive Voltage Generator, Multiple Frequency Test Transformer, Multiple Frequency Test Instrument, Multiple Frequency Inductive Voltage Tester, Voltage Transformer Multiple Frequency AC Voltage Test Instrument

Product Features

The device employs power electronics technology, with its core component utilizing a variable frequency regulator.

2. Parameter presetting, protection settings, frequency selection, voltage adjustment control, etc.

3. The touch operation allows for presetting test frequencies of 50Hz, 100Hz, 150Hz, and 200Hz (optional), and adjusting voltage via touch (step size can be real-time adjusted, options include 1V, 2V, 5V, and 10V), enabling multi-frequency test voltage output for this device.

4. Equipped with an LC filter circuit, ensuring waveform distortion remains within specified limits.

5. Compact and lightweight, easy to carry, and suitable for high-power applications.

6. Not only does it generate triple-frequency, but it also produces test voltage outputs at 1x, 2x, 3x, and 4x frequencies.

7. Easy to operate and wire, significantly reducing the on-site test power capacity requirements.
