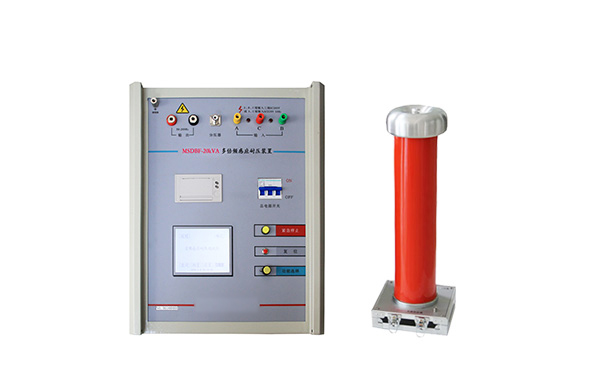

Multi-frequency Generator

Features and Performance Overview

1 Overview: The Potential Transformer (PT) is a critical equipment in the power system, and the induction withstand test is essential to ensure the quality of the product meets

A significant test in line with national standards. The PT winding's inter-turn, inter-layer, inter-section, and phase-to-phase longitudinal insulation induction withstand voltage test is a crucial part of the PT insulation test. The longitudinal insulation test requires the application of test voltage through a variable frequency power supply unit to conduct withstand voltage tests. Conducting induction withstand voltage tests on the PT can help staff identify issues in a timely manner, avoiding severe consequences.

Our multi-frequency induction voltage test equipment, produced with microcomputer control and designed using advanced frequency conversion and high-speed sampling technology, offers higher efficiency than traditional three-frequency generators. It boasts stable output voltage, high measurement accuracy, and excellent repeatability. Additionally, it features automatic voltage increment, timer start after reaching the set value, and automatic voltage decrement upon completion of the timer, with an extremely simple operation. The instrument is equipped with a backlit large-screen LCD display, a full Chinese operating interface, a real-time clock, and a mini printer. Featuring an integrated structure, the instrument is lightweight and easy to carry.

Note: The step change with a small resolution of 0.1Hz is not only applicable to the PT's induction withstand test but also to other situations that require the use of a variable-frequency power supply.

Key Features:

Prevent Surge: With the high-impedance capacitor voltage divider, it can directly monitor the high voltage on the primary side and automatically complete the insulation resistance test.

Operation Simple: Features fully automatic pressure regulation with manual option, selectable frequency range of 30Hz to 200Hz for constant pressure output.

Comprehensive Protection: The instrument features comprehensive over-pressure and over-current protection functions, all of which can be set by the user.

Presenting Clarity: Featuring backlit large-screen LCD displays for clear visuals and an easy-to-navigate interface.

Print Fast: Equipped with a miniature high-speed thermal printer, the instrument can rapidly print displayed content.

Real-Time Clock: Records the date and time of measurements and displays the current time on a liquid crystal screen.

Data Storage: Stores up to 92 sets of data, and can overwrite once full.

Seismic Performance: Engineered with anti-seismic design, the instrument remains undamaged during rough transportation.

Key Technical Indicators

1. Working Conditions: Environmental Temperature: -10℃ to 50℃; Relative Humidity: 30% to 90%

2 Power Supply: Three-phase AC380V±10% or AC220±10% 50 Hz±5 Hz; if powered by AC220, the power is halved.

3 Output Frequency: 30Hz to 200Hz with a fine adjustment of 0.1 Hz

4 Output Voltage: 30~350V Sinusoidal Wave

5 Output Power: 10KW

6 Output Voltages: 350V

7 Output Currents: 25A

8 Voltage Small Resolution: 0.01V

9 Current Low Resolution: 0.001A

10 Voltage Current Accuracy: ±1%

Dimensions: 430 (Length) × 310 (Width) × 340 (Height) mm

12 Instrument Weight: Approximately 28 kg
