Online Monitoring of Circuit Breaker Mechanical Characteristics

Product Introduction

As society evolves, there is an increasing demand for the safety and reliability of electricity use. High-voltage circuit breakers play a dual role of control and protection in the power system, with their performance directly affecting the safe operation of the power system. Mechanical characteristic parameters are one of the important parameters used to assess circuit breaker performance.

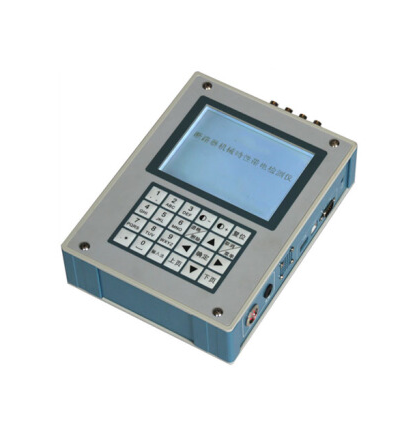

Six FluorideSulfur OxidationThe Circuit Breaker Mechanical Characteristic Tester is a specialized instrument developed and manufactured by Xinhuafu Electric Power Co., Ltd. to meet the needs of testing various high-voltage switch operational characteristics. It can accurately measure the characteristics of low-oil, high-oil, and vacuum circuit breakers across various voltage levels.Six FluorideSulfur OxidationParameters of the mechanical dynamic characteristics of the high-voltage circuit breaker.

Six Fluoride. DesulfurizationThe Circuit Breaker Mechanical Characteristic Tester boasts key features, including not only meeting the general dynamic characteristic testing requirements for high-voltage switches in the market, but also being capable of reliably testing Siemens graphite contact switches.Waveforms of dynamic resistance at 3 break points.

Six FluorideSulfur OxidationCircuit Breaker Mechanical Characteristic TesterAdopting large-screen displaysThe product features intelligent operation through Chinese characters prompts for human-computer dialogue, displays results in Chinese characters, and prints them out. It boasts advantages such as intelligence, multiple functions, accurate data, strong anti-interference ability, simple operation, compact size, lightweight, and aesthetically pleasing appearance.

Product Features

1. SF6 switches, GIS integrated electrical equipment, vacuum switches, and oil switches applicable to all models of metal contacts for domestic and international production

　　2. Linear travel sensors, rotary sensors, extremely easy and simple to install

　　3. Master screen with direct-view, background-lit LCD, contrast electronically adjustable. Full Chinese menu prompts for operation; one switch action displays all data and waveform charts.

　　4. The main unit can store multiple sets of on-site switching and merging test results, with an internal real-time clock for easy archiving and saving test dates and times.

　　5. Integrated with a quick mini printer, capable of printing all data and graphs.

　　6. The instrument boasts powerful data analysis capabilities, enabling effective analysis of various indicator parameters related to the mechanical characteristics of circuit breakers.
