Circuit Breaker Mechanical Characteristic Testing

Product Overview

As society evolves, the demand for safe and reliable electricity usage grows. High-voltage circuit breakers play a dual role in power systems, serving both control and protection functions. The performance of these breakers directly impacts the safe operation of the power system, with mechanical characteristic parameters being one of the key indicators for assessing their performance.

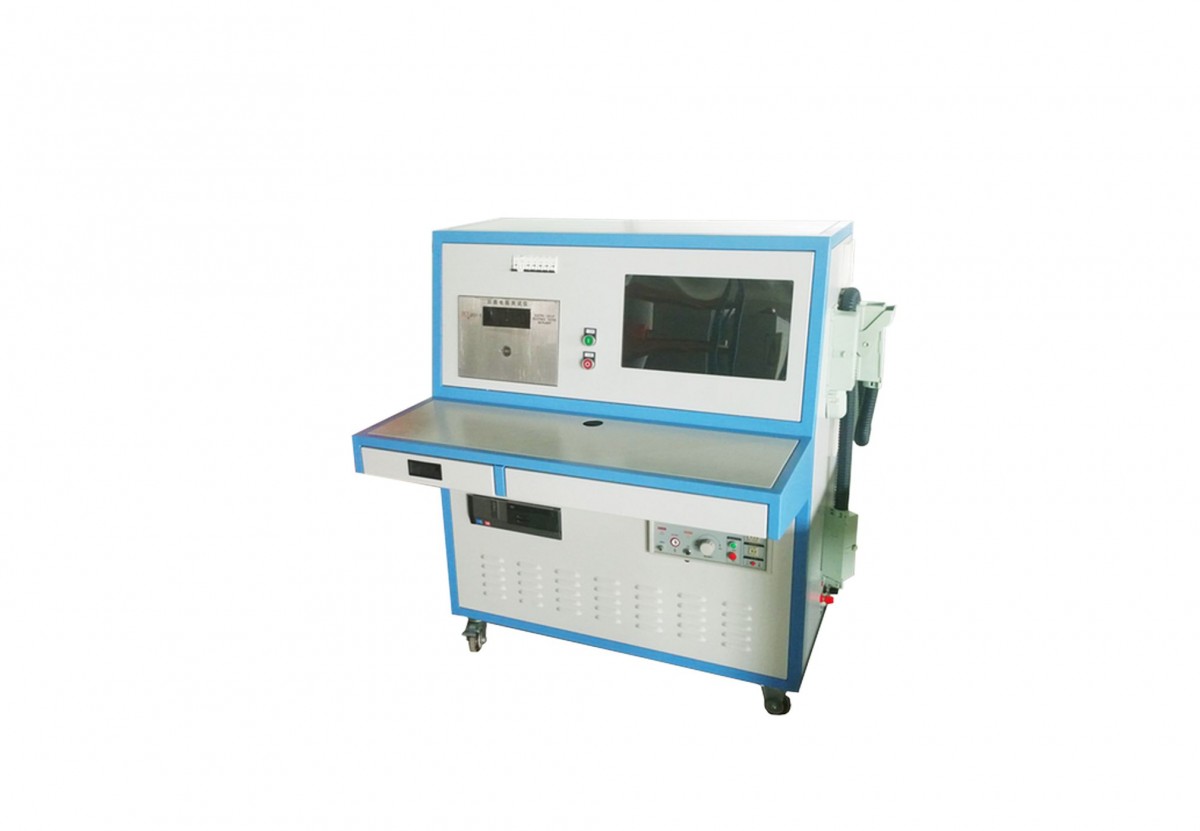

Six FluorideSulfur OxidationThe Circuit Breaker Mechanical Characteristic Tester is a specialized instrument developed and manufactured by Xinhuafu Electric Power Co., Ltd. to meet the needs of testing the operational characteristics of various high-voltage switches. It can accurately measure the characteristics of low-oil, high-oil, vacuum, and other voltage levels.Six FluorideNo Chinese content provided.Parameters of mechanical dynamic characteristics for high-voltage circuit breakers.

Six FluorideSulfur OxidationThe main features of the Circuit Breaker Mechanical Characteristic Tester include, in addition to meeting the general dynamic characteristic tests for high-voltage switches on the market, it also caters to the testing of Siemens graphite contact switches, ensuring reliable testing of graphite contact switches.Waveforms of dynamic resistance at 3 break points.

Six FluorideSulfur OxidationCircuit Breaker Mechanical Characteristic TesterAdopting large-screen displaysThe product features a user-friendly operation with Chinese character prompts for human-machine dialogue, displaying results in Chinese characters and providing printed output. It boasts advantages such as intelligence, diverse functions, accurate data, strong anti-interference capability, ease of operation, compact size, lightweight, and attractive appearance.

Product Features

1. SF6 switches, GIS integrated power equipment, vacuum switches, and oil switches suitable for all models of metal contact points in domestic and international production.

　　2. Linear travel sensors, rotary sensors, extremely easy and simple to install

　　3. Host screen with large display, transparent, and backlit LCD, with contrast digitally adjustable. Full Chinese menu prompts for operation; a single switch action displays all data and waveform charts.

　　4. The main unit can store multiple sets of field disconnection and connection test results, with an internal real-time clock for easy archiving and saving test dates and times.

　　5. Integrated with a quick mini printer, capable of printing all data and graphs.

　　6. The instrument boasts powerful data analysis capabilities, enabling effective analysis of various index parameters related to the mechanical characteristics of circuit breakers.
