Circuit Breaker Mechanical Characteristic Tester

Product Overview

As society evolves, the demand for safe and reliable electricity use grows. High-voltage circuit breakers play a dual role of control and protection in the power system, with their performance directly impacting the safe operation of the power grid. Mechanical characteristic parameters are one of the key factors in assessing circuit breaker performance.

ED0301H modelThe Circuit Breaker Mechanical Characteristic Tester is a specialized instrument developed and manufactured by Xinhuafu Power Co., Ltd. to cater to the testing needs of various high-voltage switch operational characteristics. It can accurately measure various voltage levels of low-oil, high-oil, and vacuum circuit breakers.Six FluorideSulfur OxidationParameters of the mechanical dynamic characteristics of high-voltage circuit breakers.

ED0301H modelThe main features of the Circuit Breaker Mechanical Characteristic Tester include not only meeting the general dynamic characteristic testing requirements for high-voltage switches in the market but also reliably testing Siemens graphite contact switches.Waveforms of dynamic resistance at 3 breakpoints.

ED0301H ModelCircuit Breaker Mechanical Characteristic TesterAdopting large-screen displaysThe system utilizes Chinese characters for interactive dialogue, displaying results in Chinese and providing printed outputs. It boasts intelligent features, diverse functions, accurate data, strong anti-interference capabilities, ease of operation, compact size, lightweight design, and aesthetically pleasing appearance.

Product Alias

High Voltage Switch Mechanical Characteristic Tester, Switch Mechanical Characteristic Tester, High Voltage Switch Comprehensive Tester, Circuit Breaker Dynamic Characteristic Tester, Circuit Breaker Mechanical Characteristic Tester, Circuit Breaker Comprehensive Tester, High Voltage Switch Time Characteristic Tester, High Voltage Switch Characteristic Tester, Switch Characteristic Tester, Circuit Breaker Tester, Switch Mechanical Characteristic Tester, Switch Parameter Tester

Product Features

1. SF6 switches, GIS integrated electrical equipment, vacuum switches, and oil switches suitable for all models of metal contact heads in domestic and international production

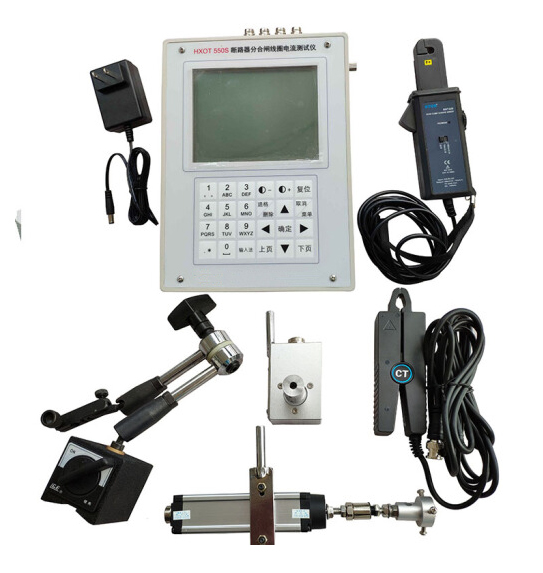

　　2. Linear travel sensors and rotary sensors, featuring extremely easy and straightforward installation.

　　3. Master screen with large LCD, direct-visibility, and backlit display. Contrast is electronically adjustable. Full Chinese menu prompts for operation; one switch action displays all data and waveform charts.

　　4. The main unit can store multiple sets of on-site opening and closing test results, an internal real-time clock for easy archiving and saving test dates and times.

　　5. Integrated with a quick mini printer, capable of printing all data and graphs.

　　6. The instrument boasts powerful data analysis capabilities, effectively analyzing various indicators and parameters of the circuit breaker's mechanical characteristics.
